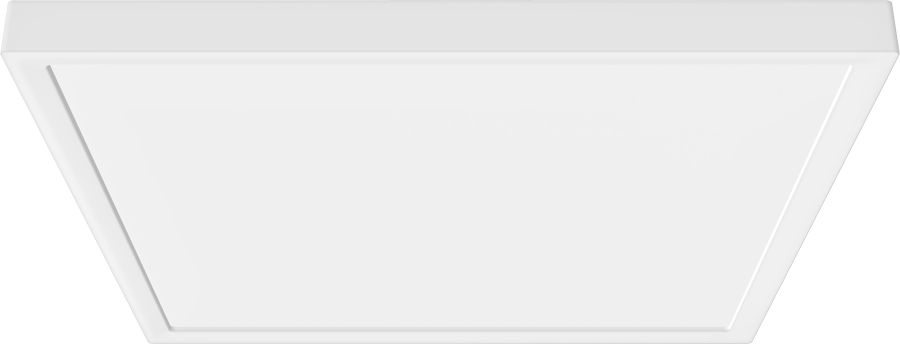

SM7S15940UNVW

Spec Sheet IES File Downlight Accessory Compatibility List Compatibility List Photometrics Report Energy Star Instructions Spec Sheet EZ Layout

SM7S15940UNVW

View Technical Specs

View Price & Availability

Performance

Watts	15W
Color Temp	4000K (Neutral)
Lumens	1,230 lm
Efficacy	60
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.125A
208V	0.08A
240V	0.07A
277V	0.06A
Input Watts	15W

EZ-Layout

Create Custom Lighting Layout

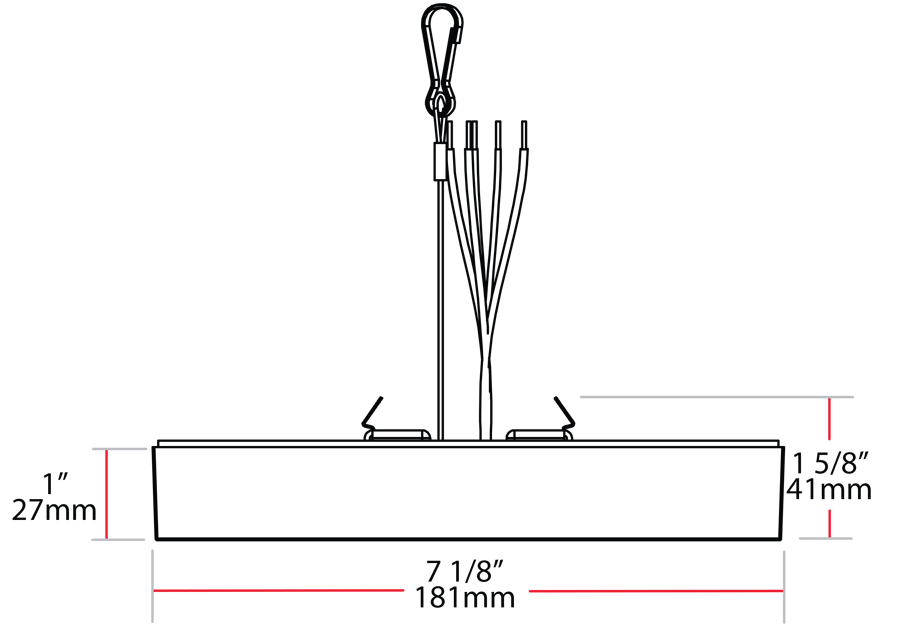

Dimensions

Weight: 1.2 lbs

Technical Specifications

Compliance

UL Listed & UL Classified

Suitable for wet locations

Energy Star Approved

ENERGY STAR® Version 2.2 Certified

Certification Model Number

DLS0042

California Title 24

Can be used to conform with the requirements of California Title 24 Part 6.

Electrical

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Power Factor

≥0.9

Input Voltage

120V through 277V

Operating Frequency (Hz)

60Hz

Performance

Lifespan

50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

75W Incandescent

Construction

IC Rated

Suitable for direct contact with insulation

Air Tight

Housing certified Air Tight as per ASTM E283

Housing

Constructed from durable aluminum that provides thermal cooling. Housing frame built from non-electrically conductive polycarbonate.

Cold Weather Starting

The minimum starting temperature is -30°C (-22°F)

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Lens

Diffuse Polystyrene lens produces smooth uniform light that is glare free

Green Technology

Mercury and UV free. RoHS-compliant components.

Mounting

Torsion springs allow for secure installation. Retrofit mounting hardware sold separately. SM7UNV/ACCC - 7" 120-277V Surface Mount Retrofit Hardware.

Finish

Matte White

Optical

Beam Angle

120°

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

R9 Value

High color performance with R9 greater than or equal to 50

Flicker

Silent and flicker free operations of less than 30%

Other

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Buy American Act Compliance

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
