SMPFA1X2RT22UNVTW
SMPFA1X2RT22UNVTW
- Select from 5 field-adjustable color temperatures 2700K, 3000K, 3500K, 4000K, or 5000K
- Suitable for indoor applications in dry and damp environments
- Dimmable, see Dimmer Compatibility List
- Meets California Title 24 requirements
- 50,000 life hours
- 5-Year, no compromise warranty
Performance
| Watts | 22W |
| Color Temp | 2700K/3000K/3500K/4000K/5000K |
| Lumens | 1,900 lm |
| Efficacy | 86 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current, Class 2 |
| 120V | 0.21A |
| 208V | 0.13A |
| 240V | 0.12A |
| 277V | 0.10A |
| Input Watts | 22W |
Dimensions
Weight: 4.2 lbs
Technical Specifications
Performance
Product Type
Surface & Flush Mounts
Description

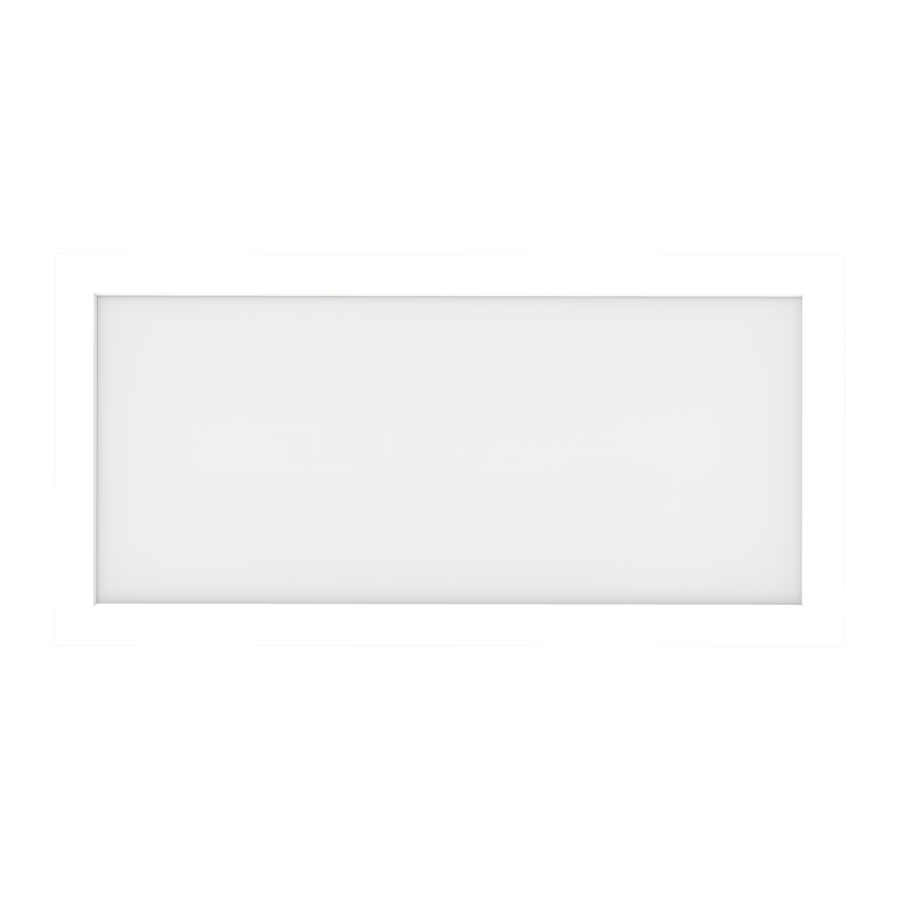

This surface panel downlight offers a sleek, modern look for any application. Offered in various unique form factors, 5 color temperatures to choose from, universal voltage (120-277V) and dimming options available.
Wattage Equivalency
45W CFL
Input Wattage
22W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, Class 2, 60 Hz, 120V-277V, 120V: 0.21A, 208V: 0.13A; 240V: 0.12A; 277V: 0.10A
THD
≤30%
Power Factor
≥0.9
Dimmable
Yes, dims down to 10% on compatible TRIAC/ELV system.
See Dimmer Compatibility List.
See Dimmer Compatibility List.
Input Voltage
120-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
205mA
Input Current @ 208V (mA)
132mA
Input Current @ 240V (mA)
115mA
Input Current @ 277V (mA)
100mA
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Flicker
≤30%
LED Characteristics
Color Temperature
Field adjustable via dip switch 2700K/3000K/3500K/4000K/5000K
Color Accuracy (CRI)
≥90
R9 Value
High color performance with R9 greater than or equal to 50
Color Consistency
4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Surface Mount
Construction
Size
1'x2'
Shape
Rectangle
Finish
White
Enclosure Material
Metal
Trim Style
Smooth
Lens
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Compliance
Listings
UL Listed
Environment
Suitable for use in indoor applications in dry and damp environments
IC Rated
No
Air Tight
No
Energy Star Approved
This product is ENERGY STAR® Version 2.2 Certified
Energy Star ID
2396877
Certification Model Number
DLS0164(SMPFA1x2RT22UNVTW)
T20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C1).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Note
All values are typical (tolerance +/- 10%)
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
