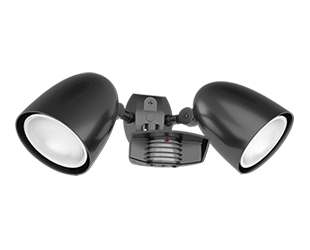

SMSLES2X13W
SMSLES2X13W
- Equivalent to two 75W halogen BR30 wide floods
- 6H x 6V beam distribution delivers ample light
- Diffused lens for smooth, even light distribution
- Adjustable knuckle
- Sensor with 180° detection pattern at up to 30 ft.
- 60,000-Hour LED lifespan
Performance
| Watts | 26W |
| Color Temp | 5000K (Cool) |
| Lumens | 2,724 lm |
| Efficacy | 123.8 lm/W |
| Color Accuracy | 84 CRI |
| L70 Lifespan | 60,000 Hours |
| Type | Constant Current |
| 120V | 0.20A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 22W |
Dimensions
Weight: 3.2 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4 feet of the ground.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PCQ1ML5D
DLC Product Code: PCQ1ML5D
Optical
NEMA Type
6H x 6V Beam Spread
Construction
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Housing
Precision die-cast aluminum housing, lens frame and mounting arm
Reflector
Vacuum-metalized polycarbonate
Lens
Diffused glass for smooth, even light distribution
Mounting
Pre-Assembled and wired for easy mounting EZ Hang hook. Compatible with round and rectangular surface mount boxes as well as recessed boxes.
Gaskets
High-temperature silicone gaskets
Finish
Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Other
Note
All values are typical (tolerance +/- 10%)
5 Yr Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Wattage Equivalency
2x75W PAR30
Sensor Specifications
Switching Capacity
500W of LED LESLIE 13W floods
Sensor Power Consumption (when idle)
1 Watt
Time Adjustment
5 seconds to 15 minutes
Sensor LED
Sensor indicator LED glows red day & night for "on guard" deterrence
Surge Protection
Withstands up to 3000 Volts
"No Hands" Auto Testing
Auto mode starts after 4 minutes of testing. No adjustment needed.
Manual Override
Double flip wall switch logic prevents activation by momentary power outages. Override resets to auto at dawn. No extra wiring needed.
RF Immunity
Circuits fully shielded for maximum radio frequency immunity
Photoelectric Control
Deactivates lights during daylight. Fully adjustable for 24-hour operation or custom applications.
Adjustments
Time, ambient light & sensitivity
Electrical
Driver
120V driver, 50/60/ Hz, 120V: 0.20A
THD
11% at 120V
Power Factor
99% at 120V
Voltage
120VAC, 60Hz
