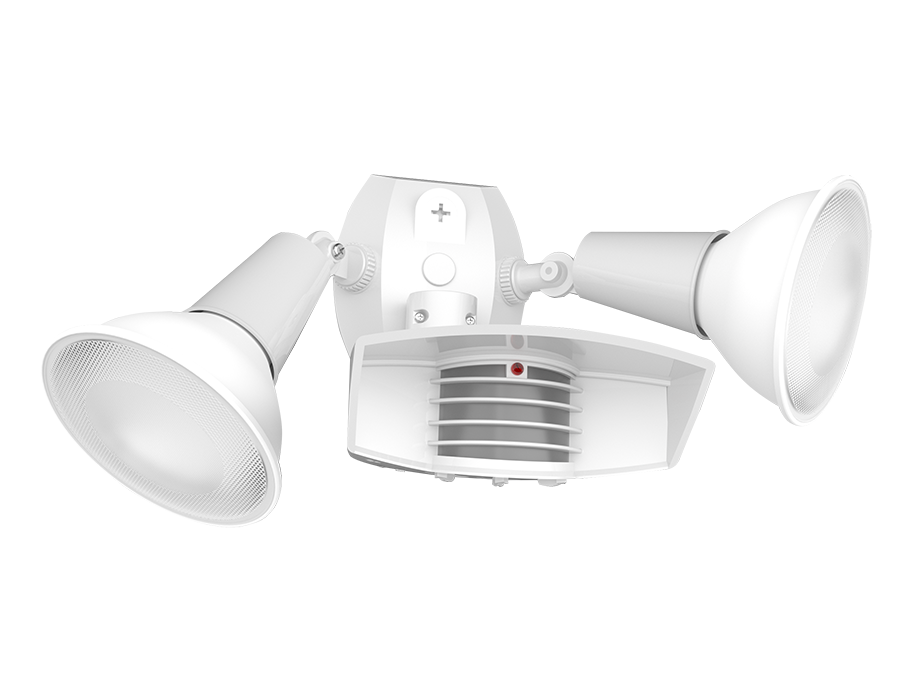

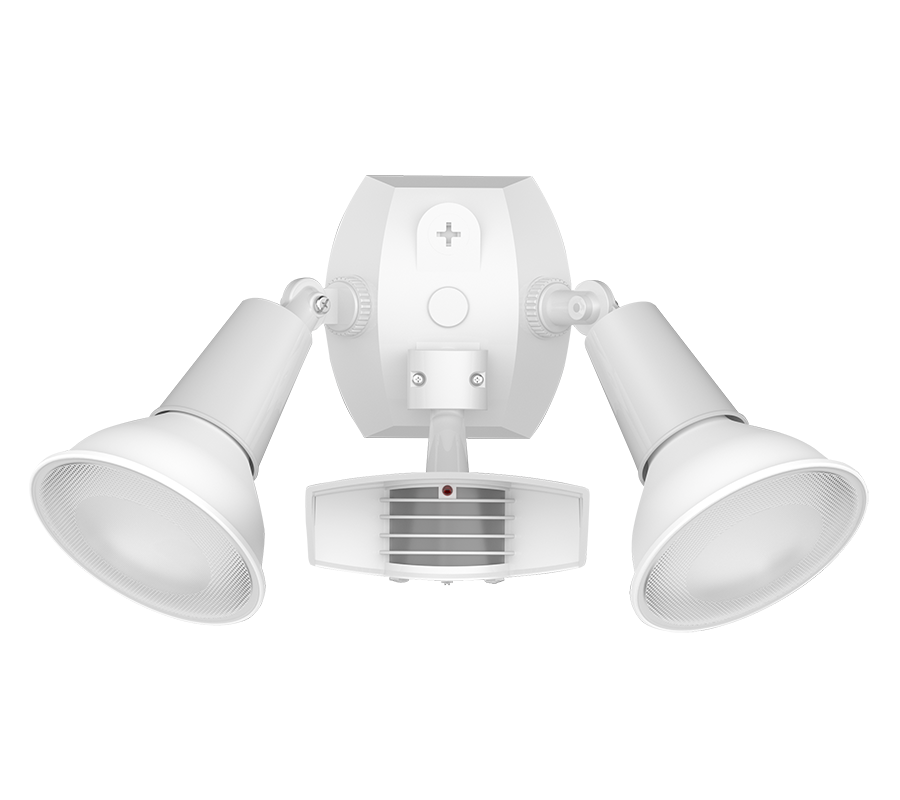

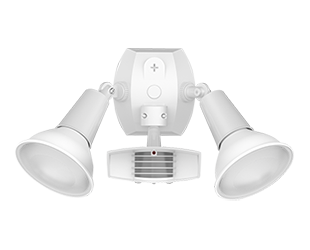

STL110RW/L

Spec Sheet IES File Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

STL110RW/L

Two CCT-Selectable PAR38s

110° view sensor

EZ Plate Universal Cover fits all outdoor boxes

Protected Manual Override

View Technical Specs

View Price & Availability

Performance

Watts	38W
Color Temp	3000/4000/5000K
Lumens	3,600 lm
Efficacy	95
Color Accuracy	90 CRI
L70 Lifespan	15,000 Hours

Type	Constant Current
120V
208V
240V
277V
Input Watts	38W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 2.5 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

Electrical

Voltage

120V AC 60Hz

Power Consumption

Surge Protection

Withstands up to 6000 volts

Switching Capacity

120W Electronic Ballast (LED) @ 120 Volts

Wall Switch Manual Override

Two flip logic prevents activation by momentary power outages. Stays on for 6 hours. No extra wiring needed.

Construction

Temperature Compensation

Sensitivity adjusts automatically for consistent detection in hot and cold ambient temperatures

Horizontal Lock, No-tool Joints

Keeps sensing pattern level for fast, error-free installation

Floodlights

Precision die cast aluminum. 1/2" NPS threaded arm with serrated locking swivel fits all standard mounting boxes and covers.

Lamps Supplied

Two (2) Edison base PAR38 lamps with three field-selectable color temperatures (3000/4000/5000K).

LED Characteristics

LED Detection Indicator

Shows when sensor is detecting in daytime and glows red at night for "on-guard" deterrence

Sensor Settings

Advanced Detection Logic

Minimizes false triggers

RF Immunity

Circuits fully shielded for maximum radio frequency immunity

Auto Test Logic

5 minutes of test time when powered. Resets to auto mode without adjustment.

Time Adjustment

5 seconds to 12 minutes

Photoelectric Control

Deactivates lights during daylight. Fully adjustable for 24 hour operation or custom applications.

Detection

110° view

Wide Sensitivity Control

Adjustable from 100% to 30%

Adjustable Detection Zone

Customize the protection pattern with included snap-on blinders (if required)

Other

10 Yr Limited Warranty

The RAB 10-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Lamp Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
