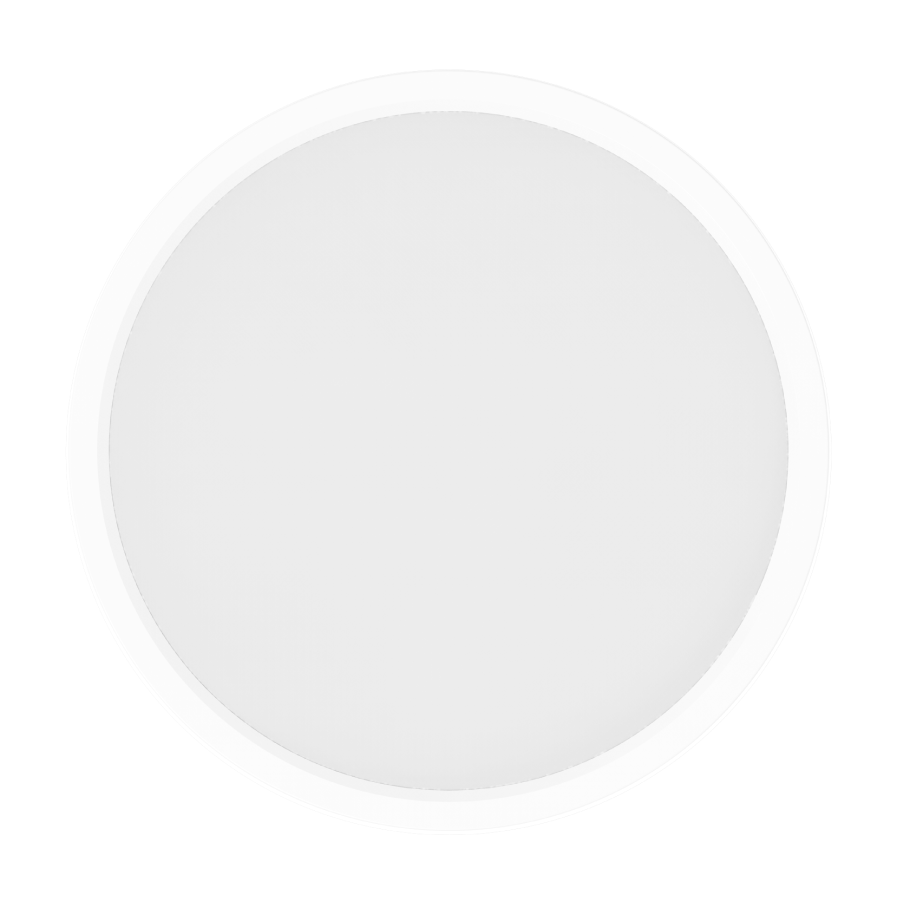

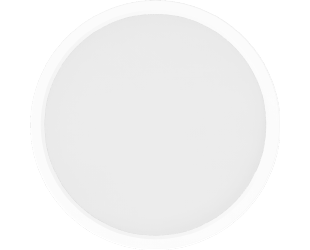

SUMO-R-7/BP

Spec Sheet IES File LM79 Instructions Spec Sheet EZ Layout

SUMO-R-7/BP

14W 2700/3000/3500/4000/5000K

Surface or Recessed mounting options

5 field-adjustable CCTs: 2700/3000/3500/4000/5000K

Suitable for wet and damp locations

Dims down to 10% on compatible TRIAC/ELV dimming systems, see Dimmer Compatibility List

Meets California Title 24 requirements

View Technical Specs

View Price & Availability

Performance

Watts	14W
Color Temp	2700/3000/3500/4000/5000K
Lumens	1055-1187 lm
Efficacy	78.2-88.3 lm/W
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.12A
208V	0.00A
240V	0.00A
277V	0.00A
Input Watts	13.4-13.5W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.8 lbs

Technical Specifications

Performance

Product Type

Surface Mount

Description

5 selectable color temperatures in one surface mount fixture. Contemporary, low-profile design with 3 sizes and 2 forms available. Built for 120V use. TRIAC dimming compatibility and 90 CRI.

Wattage Equivalency

60W Incandescent

Input Wattage

14W

Nominal Lumens

1,150lm

Measured Lumens

2700K @ 993lm; 3000K @ 1,032lm; 3500K @ 1,072lm; 4000K @ 1,092lm; 5000K @ 1,110lm

Efficacy

2700K @ 73lm/W; 3000K @ 75lm/W; 3500K @ 78lm/W; 4000K @ 80lm/W; 5000K @ 81lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current @ 120V, 60 Hz: 130mA

Power Factor

>0.9

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120V

Operating Frequency

60 Hz

Operating Temperature

-4°F to 104°F (-20°C to 40°C)

Flicker

<30%

LED Characteristics

Beam Angle

110°

Color Temperature

Field adjustable via dip switch 2700/3000/3500/4000/5000K

Color Accuracy (CRI)

90 CRI

Natural Spectrum

R9 Value

High color performance with R9 greater than 50

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

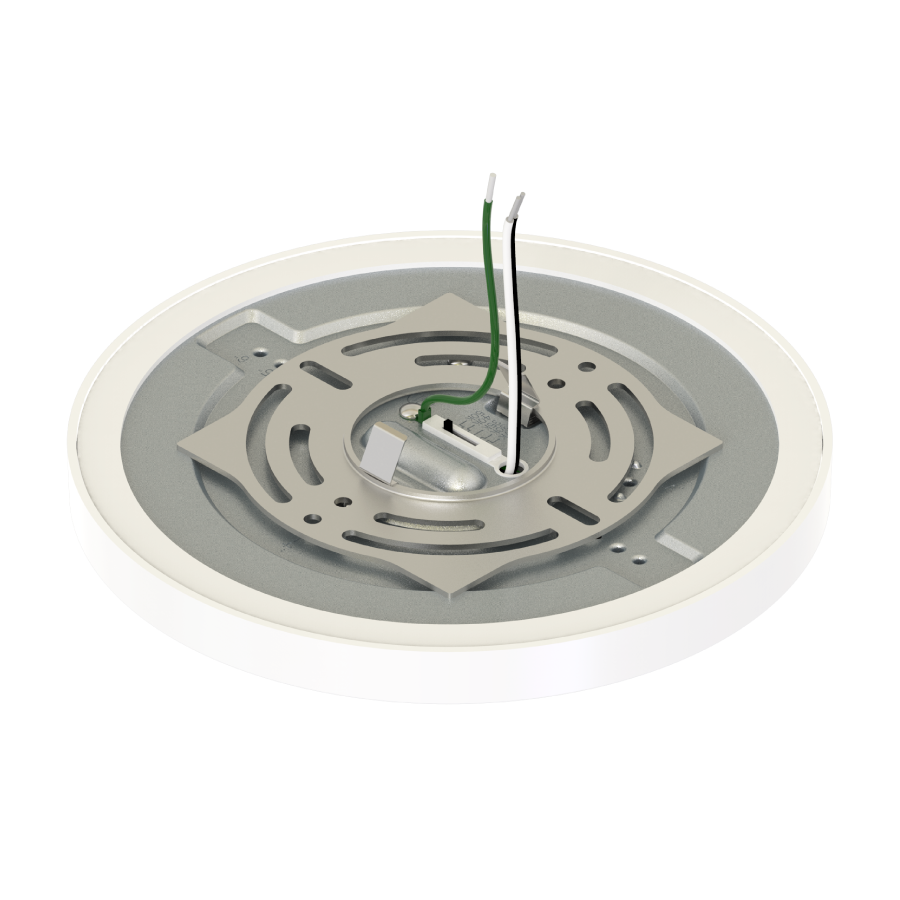

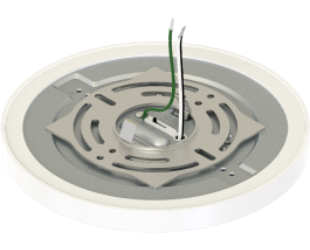

Mounting

Surface mount or recessed housing

Construction

Size

Shape

Round

Finish

White

Enclosure Material

Metal

Trim Style

Smooth

Lens Finish

Frosted

Lens

Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications

Compliance

Listings

UL Listed

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IC Rated

Air Tight

Energy Star Approved

This product is ENERGY STAR® Certified.

Certification Model Number

DLS0175(SUMO-R-7)

California Title 20 Compliant

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6

California Energy Commission (CEC) Status

Lawful for Sales in California

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C1).

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Accessories

SUMO-TRIM-R-7-BLK
7" color trim for slim SUMO round black

SUMO-TRIM-R-7-BN
7" color trim for slim SUMO round brushed nickel

SUMO-TRIM-R-7-BRZ
7" color trim for slim SUMO round bronze

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
