SUMO-R-9/PIR
SUMO-R-9/PIR
- Field-adjustable options for color temperature (2700/3000/3500/4000/5000K)
- Integrated PIR sensor with adjustable motion modes and hold times
- Integrated dusk-to-dawn photocell
- 120V, non-dimmable
- 50,000 hrs., Wet Rated, EnergyStar, 5-year, no-compromise warranty
Performance
| Watts | 18W |
| Color Temp | |
| Lumens | 1,500 lm |
| Efficacy | 82 |
| Color Accuracy | 2700/3000/3500/4000/5000K CRI |
| L70 Lifespan |
| Type | Constant Current |
| 120V | 0.17A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 18W |

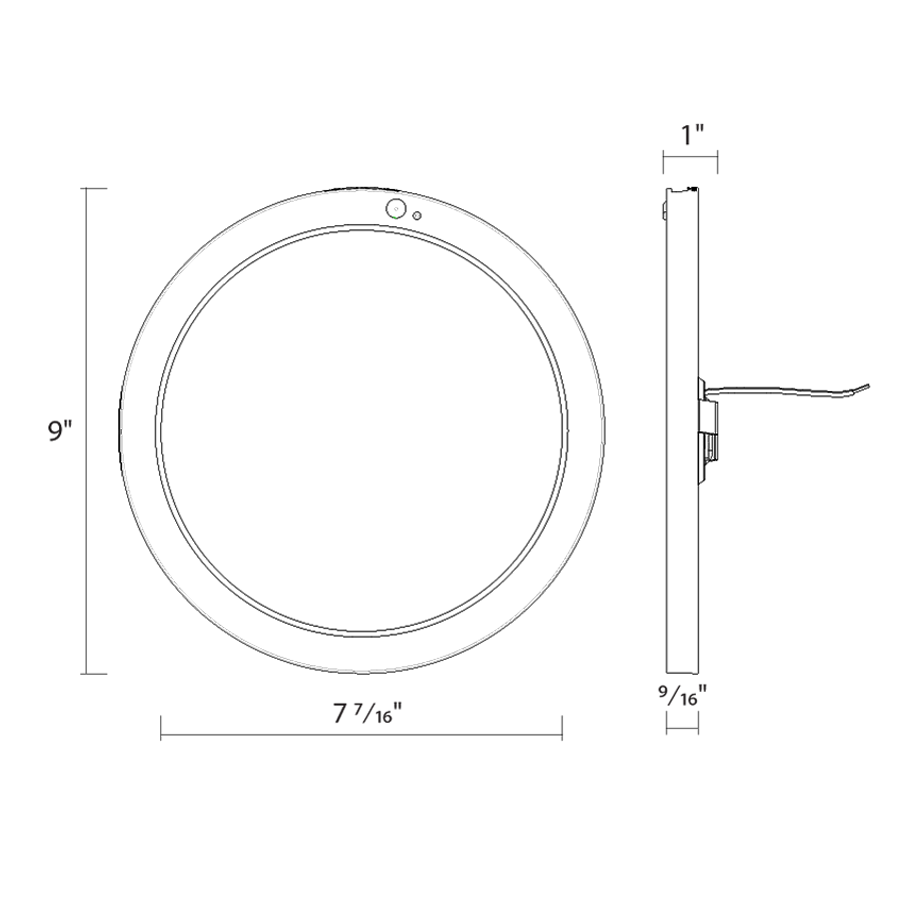

Dimensions
Weight: 1.1 lbs
Technical Specifications
Performance
Product Type
SUMO w/PIR
Description

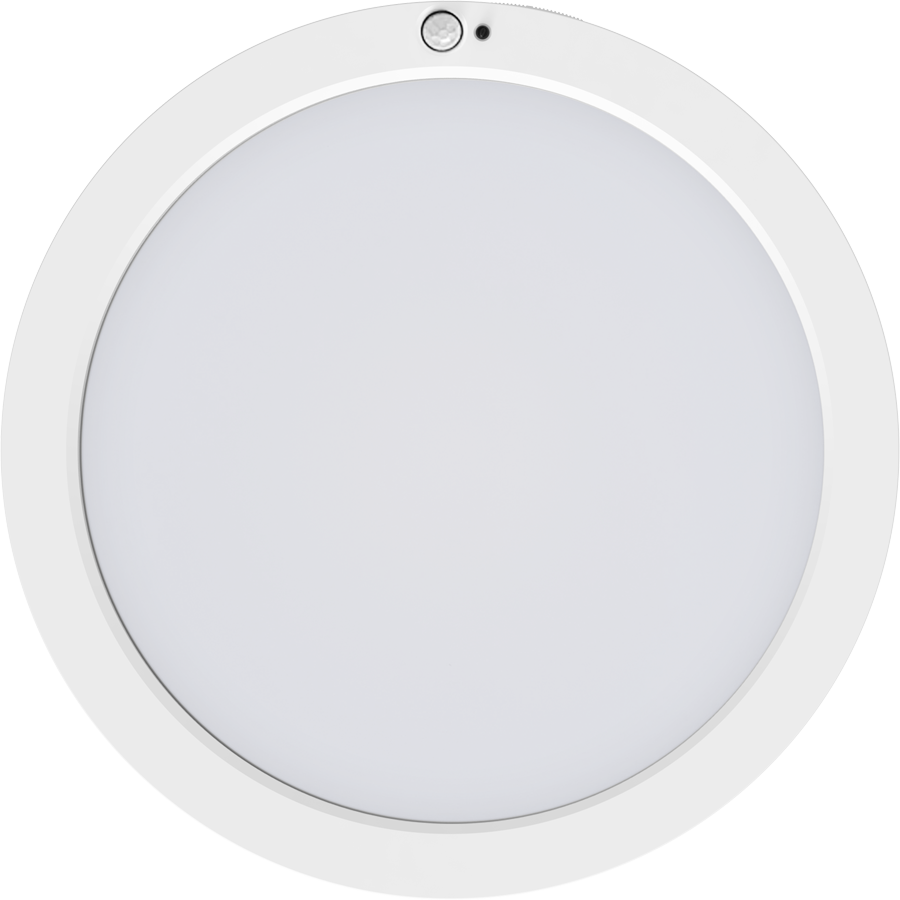

Contemporary round surface mount with integrated motion sensor and photocell. Adjustable dip switches for color temperature, motion modes, and hold times.
Wattage Equivalency
75W Incandescent
Input Wattage
18W
Lumens (Nominal)
1,500lm
Efficacy
82lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current 120V 60 Hz; 120V: 170mA
Power Factor
≥0.9
Dimmable
No
Flicker
≤30%
Construction
Operating Temperature Range
-4°F - 104°F (-20°C - 40°C)
Size
9"
Shape
Round
Finish
White
Enclosure Material
Plastic
Trim Style
Smooth
Lens Finish
Frosted
Lens
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Sensor Settings
Sensor Connection Type
Intergrated
Max Mounting Height
6 1/2 ft
Detection Range
13 ft diameter at 6 1/2 ft mounting height
Sensor Technology
Passive Infrared (PIR)
Adjustable Sensor Settings?
Integrated dip switches to adjust motion modes and hold times
Motion Modes
Auto (default): Light OFF during the day, stays OFF at night, turns ON at 100% brightness when motion is detected and stays on until the specified hold time expires and the light turns OFF.
Bi-Level: Light OFF during the day, stays OFF at night, turns ON at 100% brightness when motion is detected and stays on until the specified hold time expires, light reduces to 50% brightness until the specified hold time expires and the light turns OFF.
Off: Motion detection is disabled.
Bi-Level: Light OFF during the day, stays OFF at night, turns ON at 100% brightness when motion is detected and stays on until the specified hold time expires, light reduces to 50% brightness until the specified hold time expires and the light turns OFF.
Off: Motion detection is disabled.
Hold Times
30 seconds (default), 5 minutes, 10 minutes
Photocell
Dawn to dusk
LED Characteristics
Beam Angle
110°±10°
Color Temperature
Default 3000K
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Surface Mount
Compliance
Listings
UL Listed
Environment
Suitable for use indoors in dry and damp environments.
IC Rated
No
Air Tight
No
Energy Star Approved
This product is ENERGY STAR® Certified.
Certification Model Number
DLS0195(SUMO-R-9/PIR)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
Compatible Accessories
None
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
