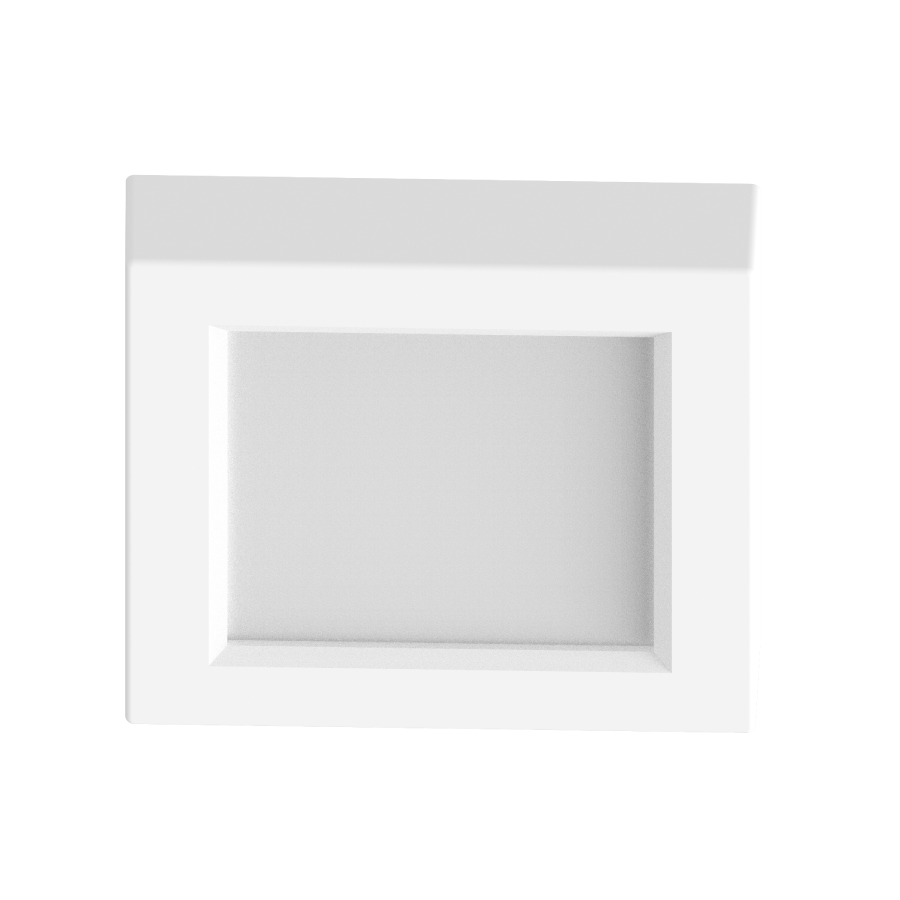

SUMOFA-5S-10-9CCT-120-W
SUMOFA-5S-10-9CCT-120-W
- Surface or Recessed mounting options
- Select from 5 field-adjustable color temperatures 2700K, 3000K, 3500K, 4000K, or 5000K
- Suitable for wet and damp locations
- Meets California Title 24 requirements
Performance
| Watts | 10W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 650 lm |
| Efficacy | 65 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.10A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 7W |
Dimensions
Weight: 0.7 lbs
Technical Specifications
Performance
Description
The SUMO offers a sleek, low-profile design that adds a modern look to any space. They are easy to install with field adjustable color temperature, affordable, and a stylish options for new construction or retrofit. Mounting kit for recessed housing sold separately.
Product Type
Surface & Flush Mounts
Input Wattage
10W
Lumens
650lm
Efficacy
65lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Compliance
UL Listed
Suitable for wet locations
Energy Star Approved
ENERGY STAR® Version 2.2 Certified
Energy Star ID
2389546
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Electrical
Dimming Driver
TRIAC compatible dimmer with dimming as low as 10%.
THD
≤20%
Power Factor
≥0.9
Flicker
≤30%
Input Voltage
120V
Operating Frequency
60Hz
Construction
Material
Plastic
Trim Style
Smooth Trim
Shape
Square
Operating Temperature
-4°F(-20°C) to 104°F (40°C )
Size
5.5"
LED Characteristics
Beam Angle
110°
R9 Value
High color performance with R9 greater than or equal to 50
Installation
Mounting
Surface and recessed mount
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
