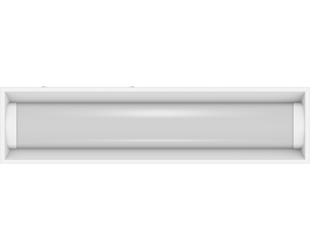

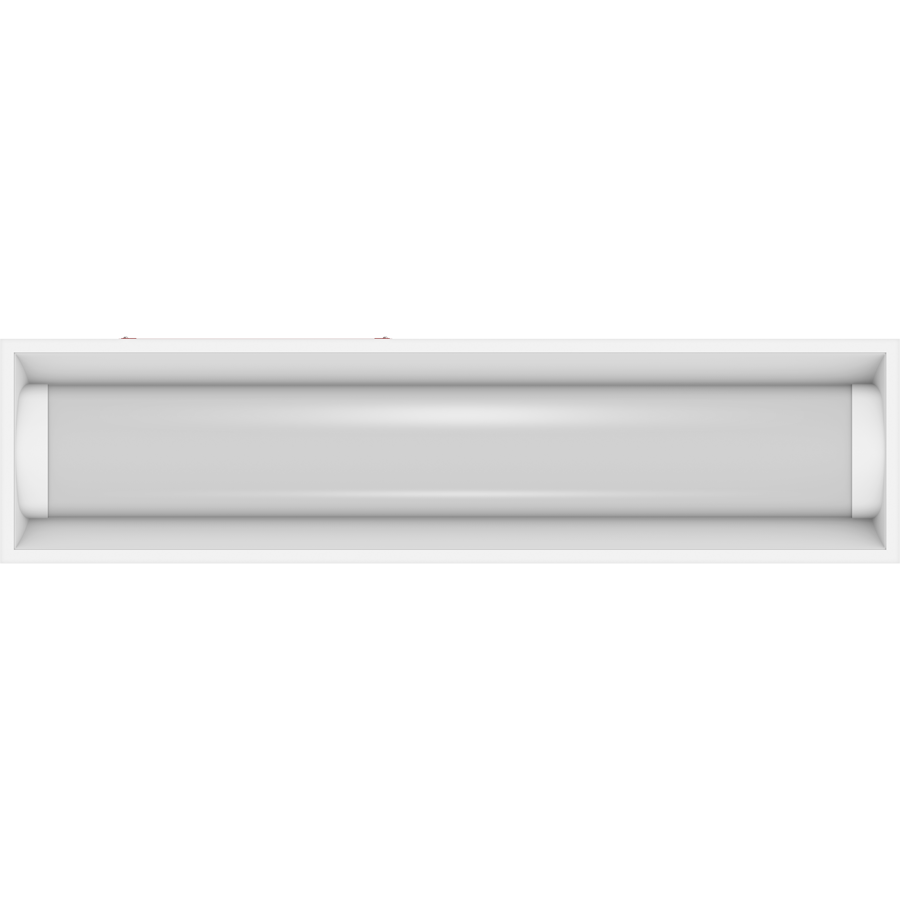

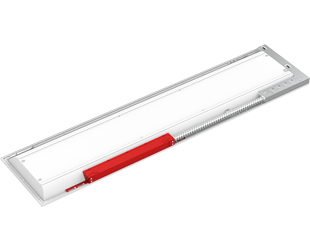

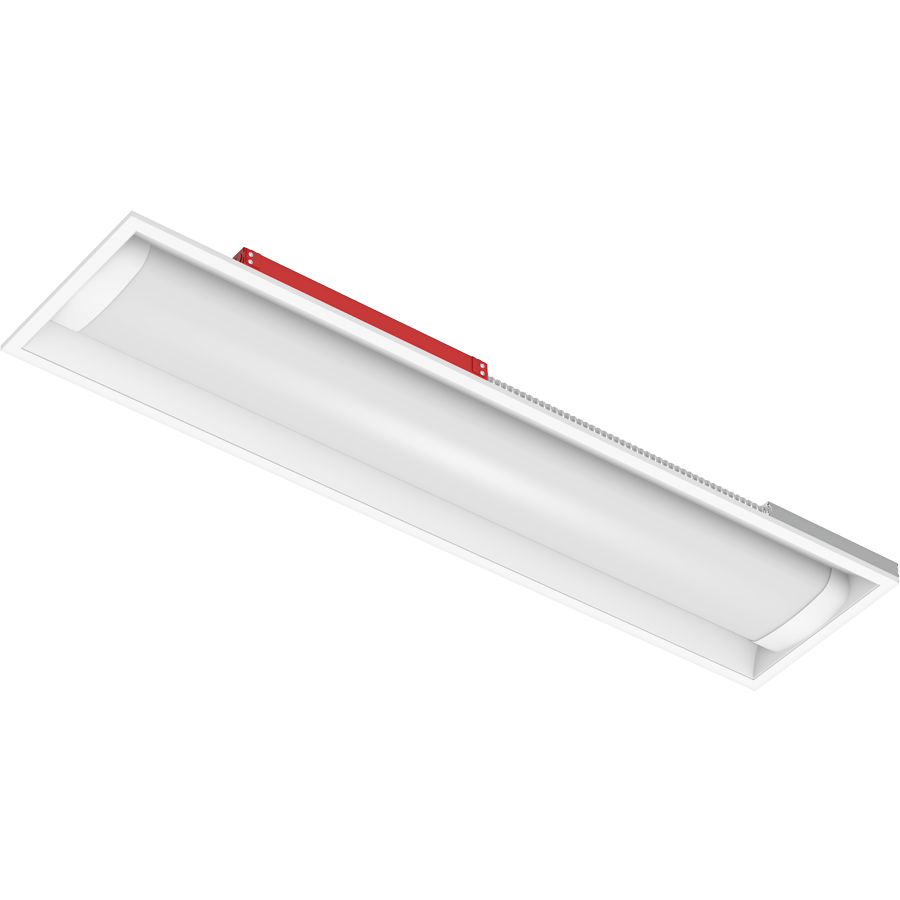

SWISH1X4/E

35W 3500K/4000K/5000K

100,000-Hour LED lifespan

DLC Premium Listed

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	35/26/18W
Color Temp	3500K/4000K/5000K
Lumens	2455-4922 lm
Efficacy	137.3-153 lm/W
Color Accuracy	82-84 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.29A/0.21A/0.14A
208V	0.17A/0.12A/0.08A
240V	0.14A/0.11A/0.07A
277V	0.13A/0.10A/0.07A
Input Watts	16.7-34.5W

EZ-Layout

Create Custom Lighting Layout

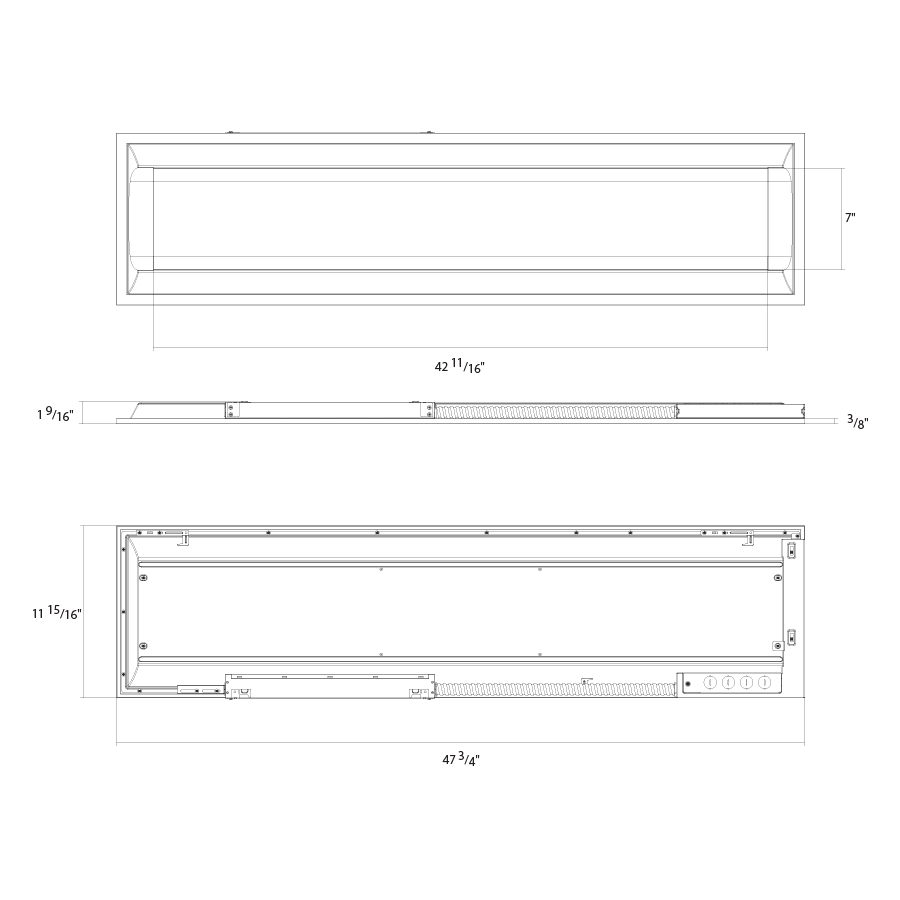

Dimensions

Weight: 7.1 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
35/26/17W (factory default 35W)
Color Temperature Adjustable:
3500K, 4000K and 5000K (factory default 4000K)

Compliance

UL Listed

Suitable for dry and damp locations.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

IP20

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Electrical

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Surge Protection

2 kV L-L, 2 kV L/N-G

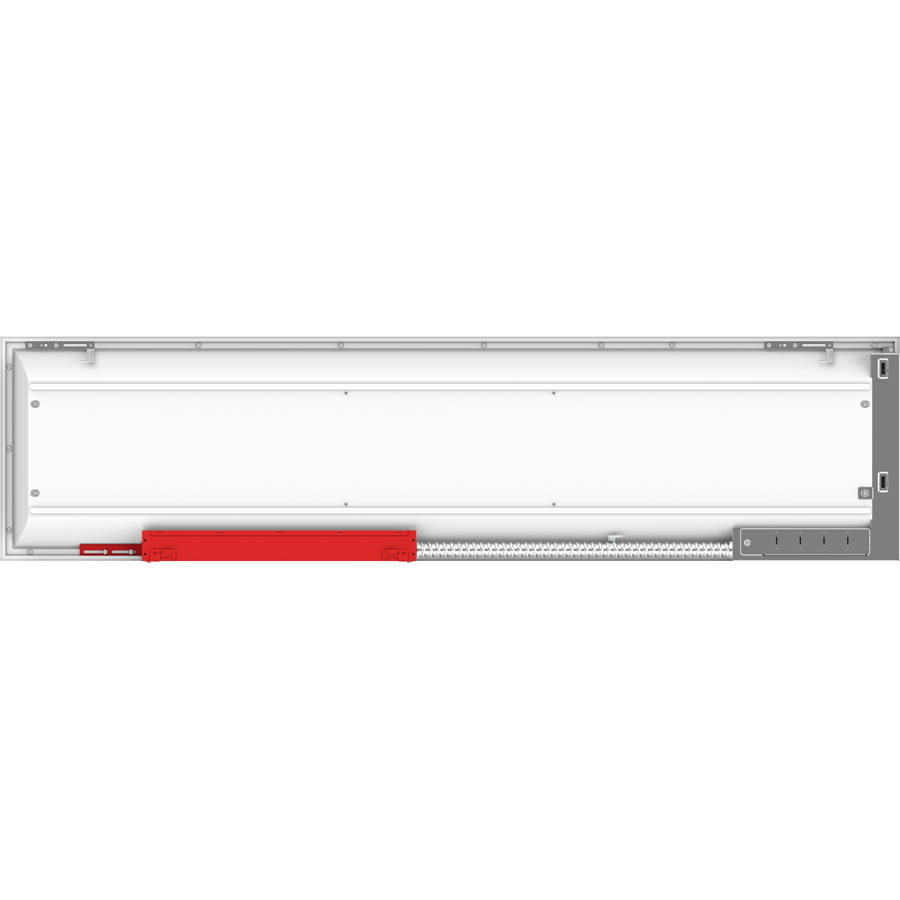

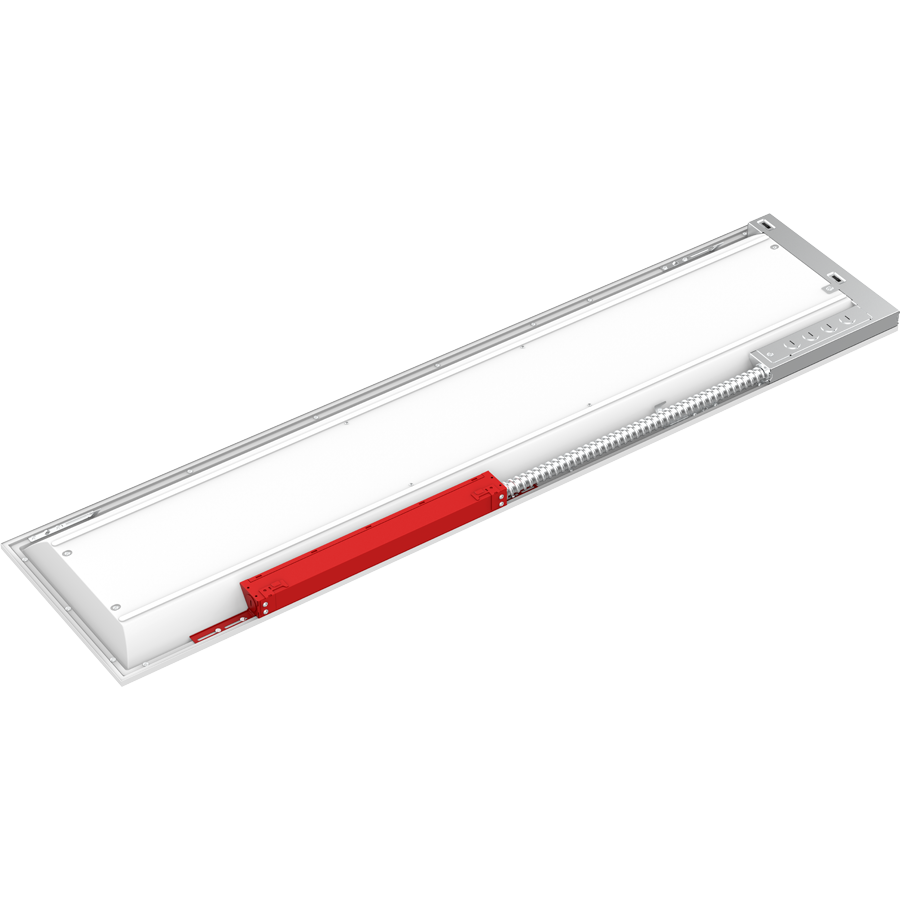

Battery Backup

Battery backup will operate the LED Lamp for 90 minutes if power fails. Wired for 120V-277V.

Construction

Cold Weather Starting

Minimum starting temperature is 5°C (41°F)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Lens

Diffused Polymethyl Methacrylate (PMMA)

Housing

Cold Rolled Carbon Steel Sheets and Strip (SPCC)

Size

1'x4'

Finish

Formulated for high durability and long-lasting color

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
