SWISH1X4/MVS
Performance
| Watts | 29/25/19W |
| Color Temp | 3500/4000/5000K |
| Lumens | 2,465-4,012 lm |
| Efficacy | 123.8-142.2 lm/W |
| Color Accuracy | 85-86 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.26A/0.23A/0.16A |
| 208V | 0.14A/0.13A/0.10A |
| 240V | 0.13A/0.11A/0.90A |
| 277V | 0.11A/0.11A/0.08 |
| Input Watts | 18.19-30.43W |

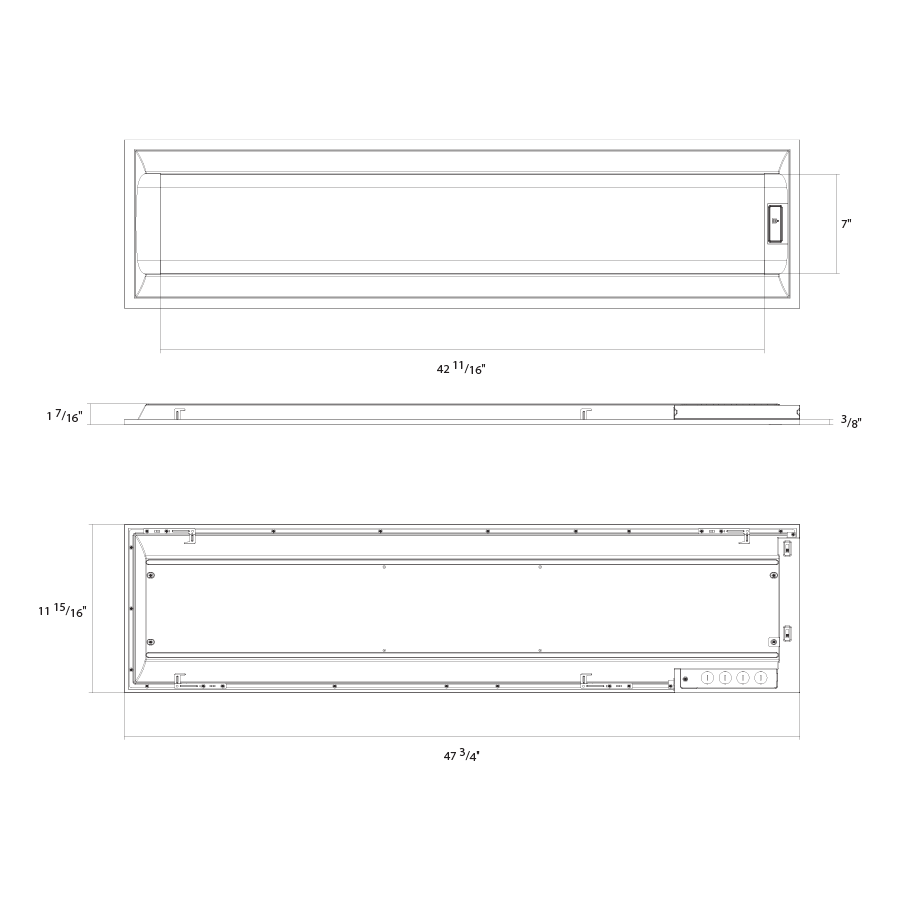

Dimensions
Weight: 12.0 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
1' x 4': 29W/25W/19W(factory default 25W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
1' x 4': 29W/25W/19W(factory default 25W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for dry and damp locations.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-AIFQ80
DLC Product Code: S-AIFQ80
Electrical
Driver
29W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.26A, 208V: 0.14A, 240V: 0.13A, 277V: 0.11A
25W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.23A, 208V: 0.13A, 240V: 0.11A, 277V: 0.11A
19W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.16A, 208V: 0.10A, 240V: 0.90A, 277V: 0.08A
25W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.23A, 208V: 0.13A, 240V: 0.11A, 277V: 0.11A
19W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.16A, 208V: 0.10A, 240V: 0.90A, 277V: 0.08A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
11.94% at 120V, 10.37% at 277V
Power Factor
98.7% at 120V, 94.9% at 277V
Surge Protection
CM: 2 kV
DM: 1 kV
DM: 1 kV
Construction
Cold Weather Starting
The minimum starting temperature is -22°F (-30°C)
Ambient Temperature
Suitable for use in up to 104°F (40°C)
IC Rated
Suitable for direct contact with insulation
Housing
Die-formed, 26-gauge, cold-rolled steel
Reflector
Aluminum with high reflectance white finish, optimized for uniform distribution.
Lens
Frosted polycarbonate lens
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Recessed ceiling
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
29W: Replaces up to (2) F32T8 or (2) F28T5 )
25W: Replaces up to (2) F32T8 or (2) F28T5
19W: Replaces up to (1) F32T8 or (1) F28T5
25W: Replaces up to (2) F32T8 or (2) F28T5
19W: Replaces up to (1) F32T8 or (1) F28T5
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Sensor Settings
Capacitance Load
400VA at 120VAC, 800VA at 230VAC, 1000VA at 277VAC
Operating Temperature
-4°F to +140°F(-20°C to +60°C )
Relay
Zero-cross relay
Maximum Mounting Height
16.4 ft
Customizable Detection Area
10, 50, 75 or 100%
Time Delay
5s, 30s, 1min, 5min, 10min, 20min, 30min
Cut Off Period
0s, 10s, 1min, 5min, 10min, 30min, 1hr, Bi-Level
Cut-Off Dimming level
10, 20, 30, 50%
Cut-Off Power
Less than 1W
Daylight Threshold
About .2-5 fc for disabled
Sensor Principle
High Frequency
Microwave Frequency
5.8GHz +/- 75MHz
Microwave Power
<0.2mW
Max Detection Range
26 ft diameter at 16 ft mounting height
Detection Angle
About 30 to 150 degrees
Remote Control Accessory
Adjust settings using remote control (catalog# MVSREM). Only available with 0-10V dimming driver options. Remote control available here.
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
