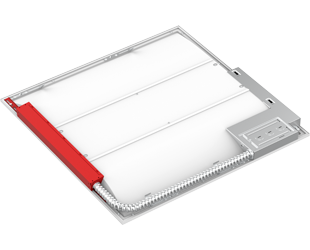

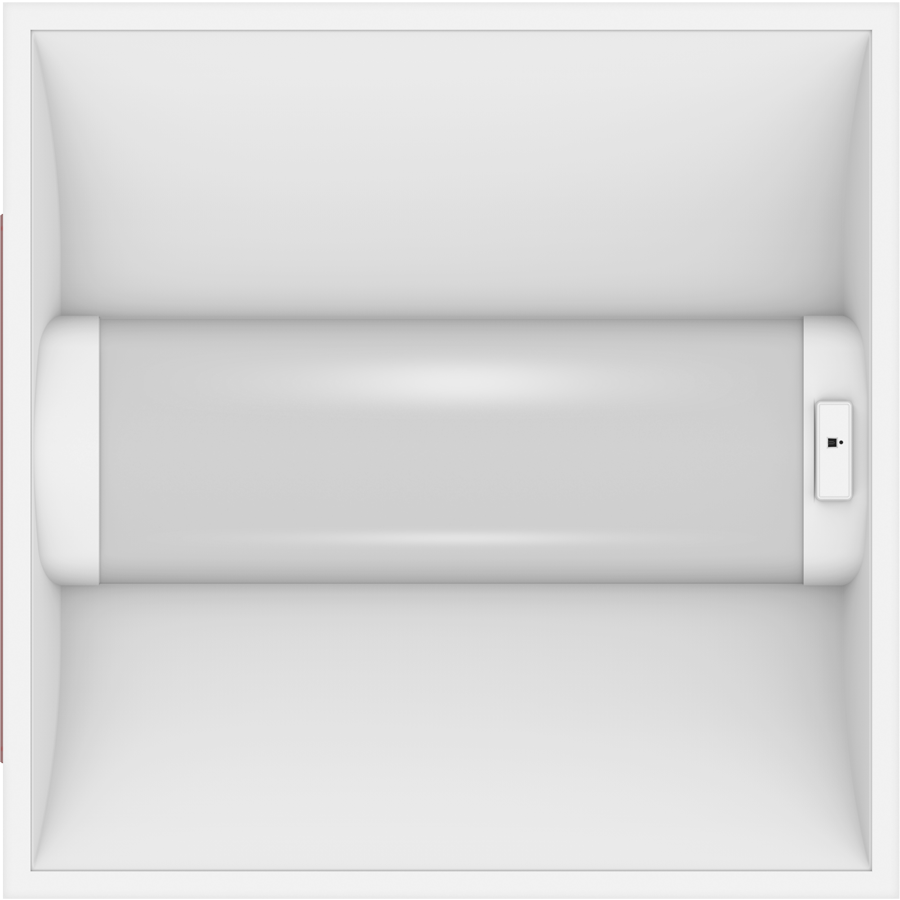

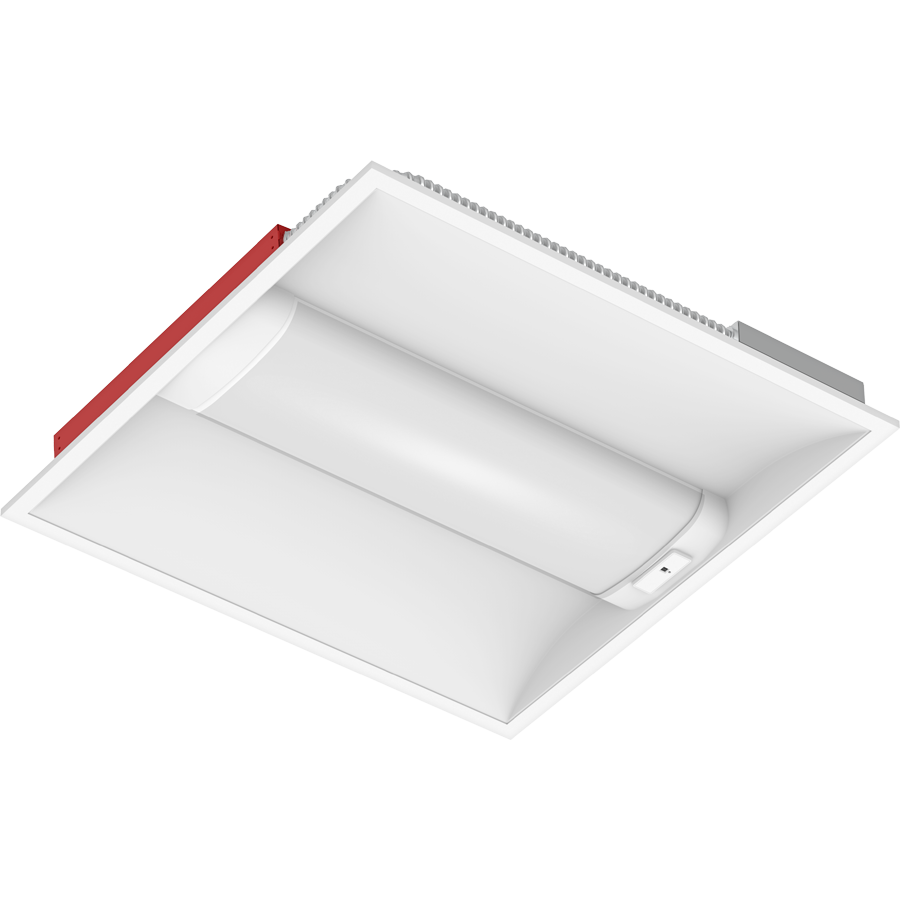

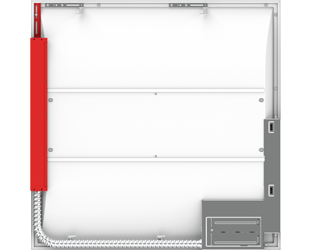

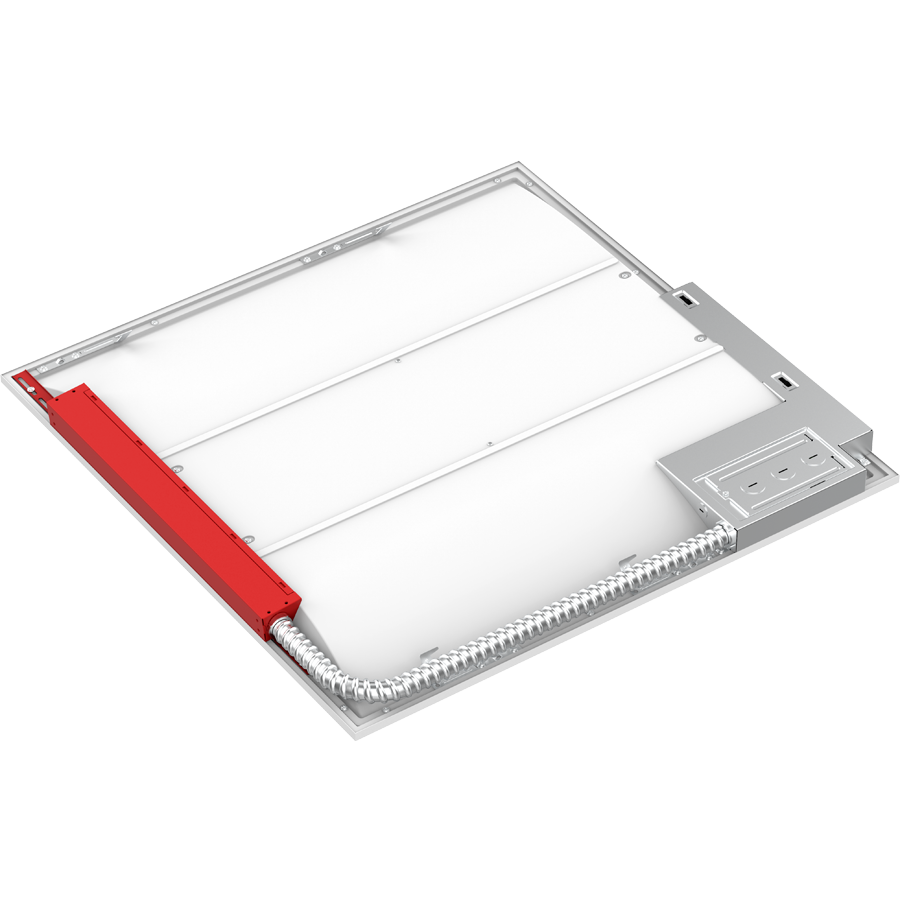

SWISH2X2/LCBS/MVS/E
Performance
| Watts | 39/29/19W |
| Color Temp | 3500/4000/5000K |
| Lumens | 2,388-4,983 lm |
| Efficacy | 116.6-140.2 lm/W |
| Color Accuracy | 84-86 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.33A/0.26A/0.16A |
| 208V | 0.20A/0.14A/0.10A |
| 240V | 0.17A/0.13A/0.90A |
| 277V | 0.14A/0.11A/0.08A |
| Input Watts | 17.81-39.54W |
Dimensions
Weight: 14.0 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
2' x 2': 39W/29W/19W (factory default 29W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
2' x 2': 39W/29W/19W (factory default 29W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for dry and damp locations.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-DG7IW2
DLC Product Code: S-DG7IW2
Electrical
Driver
39W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.33A, 208V: 0.20A, 240V: 0.17A, 277V: 0.14A
29W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.26A, 208V: 0.14A, 240V: 0.13A, 277V: 0.11A
19W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.16A, 208V: 0.10A, 240V: 0.90A, 277V: 0.08A
29W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.26A, 208V: 0.14A, 240V: 0.13A, 277V: 0.11A
19W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.16A, 208V: 0.10A, 240V: 0.90A, 277V: 0.08A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
10.24% at 120V, 12.8% at 277V
Power Factor
98.8% at 120V, 93.2% at 277V
Surge Protection
CM: 2 kV
DM: 1 kV
DM: 1 kV
Construction
Cold Weather Starting
The minimum starting temperature is -22°F (-30°C)
Ambient Temperature
Suitable for use in up to 104°F (40°C)
IC Rated
Suitable for direct contact with insulation
Housing
Die-formed, 26-gauge, cold-rolled steel
Reflector
Aluminum with high reflectance white finish, optimized for uniform distribution.
Lens
Frosted polycarbonate lens
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Recessed ceiling
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
39W: Replaces up to (3) F32T8 or (5) F17T8 or (5) F14T5
29W: Replaces up to (2) F32T8 or (4) F17T8 or (4) F14T5
19W: Replaces up to (1) F32T8 or (3) F17T8 or (2) F14T5
29W: Replaces up to (2) F32T8 or (4) F17T8 or (4) F14T5
19W: Replaces up to (1) F32T8 or (3) F17T8 or (2) F14T5
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Lightcloud
Lightcloud Blue
Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.
DLC system - Interior: N1XMLOEATBA; Exterior: NHCZ2BIA17L
Learn more at www.lightcloud.com.
DLC system - Interior: N1XMLOEATBA; Exterior: NHCZ2BIA17L
Learn more at www.lightcloud.com.
Gateway Required
No
Communication Protocol
Bluetooth Mesh
Range
Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners
Spacing Criteria
Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.
Sensor Settings
Sensor Connection Type
Intergrated
Max Mounting Height
8 to 12 feet
Detection Range
20 ft diameter at 9 ft mounting height
Sensor Technology
Microwave (MVS)
Default Setting
Uncommissioned State:
Motion Sensitivity: High
Brightness when triggered : 100%
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Commissioned State:
Once pair, the sensor will default to disabled. Once enabled the following settings apply:
Motion Sensitivity: High
Brightness when triggered: Last on status
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Motion Sensitivity: High
Brightness when triggered : 100%
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Commissioned State:
Once pair, the sensor will default to disabled. Once enabled the following settings apply:
Motion Sensitivity: High
Brightness when triggered: Last on status
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Adjustable Sensor Settings?
Yes, using the Lightcloud Blue mobile app
Sensing Type
Occupancy, Vacancy
Occupied Actions
On or On at a Dim Level
Vacant Actions
Off or On at a Dim Level
Occupancy Timeout
1 minute to 240 minutes
Daylight Sensing
At the time of the first occupancy event the light will stay off or turn on at an appropriate dim level to meet the daylight threshold level set in the Lightcloud Blue mobile app.
Dim levels will continuously adjust based on the daylight threshold level set in the Lightcloud Blue mobile app.
Dim levels will continuously adjust based on the daylight threshold level set in the Lightcloud Blue mobile app.
Daylight Threshold
150 lux to 1500 lux
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
