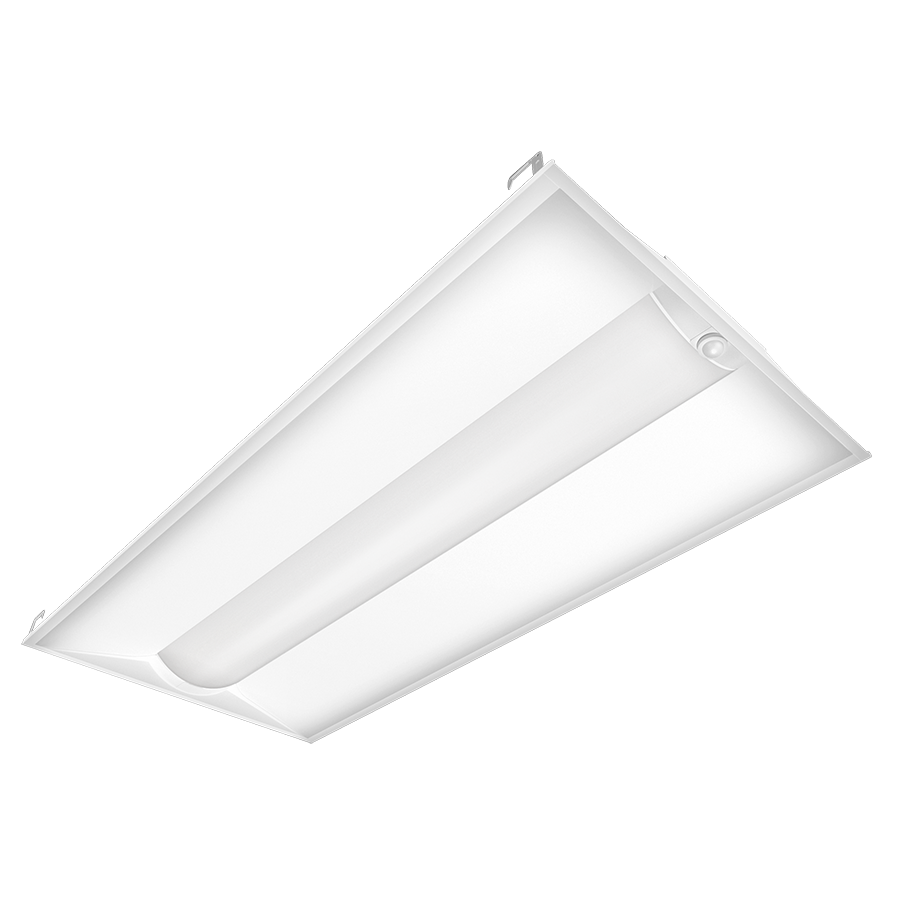

SWISH34-2X4-29N/PIR

Spec Sheet IES File LM79 Instructions Spec Sheet EZ Layout

SWISH34-2X4-29N/PIR

Optional surface and recessed mount kits available

Optional programmable occupancy sensor for multi-level lighting control

0-10V dimming, standard on all models

60,000-hour LED lifespan

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	29W
Color Temp	4000K (Neutral)
Lumens	3,578 lm
Efficacy	134 lm/W
Color Accuracy	82 CRI
L70 Lifespan	60,000 Hours

Type	Constant Current
120V	0.25A
208V	0.14A
240V	0.12A
277V	0.11A
Input Watts	26.7W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 14.4 lbs

Technical Specifications

Compliance

UL Listed

Suitable for damp locations

CCEA Compliant

Luminaire Requirements used in Environmental Air Space per the electrical code specification of the City of Chicago

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P6PMA19I

Electrical

Driver

Class 2, Constant Current, 120-277V, 50/60Hz, 120V: 0.25A, 208V: 0.14A, 240V: 0.12A, 277V: 0.11A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

3.43% at 120V, 7.34% at 277V

Power Factor

99.6% at 120V, 91.7% at 277V

Surge Protection

2.5kV

Construction

Cold Weather Starting

The minimum starting temperature is -20°C (-4°F)

Ambient Temperature

Suitable for use in up to 40°C (104°F)

IC Rated

Suitable for direct contact with insulation

Housing

Die-formed, 24-gauge, cold-rolled steel

Reflector

Integral reflector (on the sides) with high reflectance finish, optimized for uniform distribution.

Lens

Frosted polycarbonate lens

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Integral T-grid clips make installation easy and secure

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

60,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to (2) F32T8

Sensor Settings

Maximum Mounting Height

13 ft

Voltage

12V DC (+3V-0V)

Dimming

0-10V dimming ouput, max 20mA sinking current

Operating Temperature

-20°C to 50°C (-4°F to 122°F)

Storage Temperature

-25°C - 70°C (-13°F - 158°F)

Operating Humidity

5% - 93% without condensation

IP Rating

IP20

Warm Up Time

45s +/-5s

Standby (w)

<0.3W

Module Interaction

Wire AWG 22 (Grey Dim -, Purple Dim +, Yellow 12V DC)

On-Time Adjustment

10s, 5min, 10min, 30min with +/-5% tolerance
(Factory Setting: 30min +/-5%)

Bi-Level

0, 10%, 30%, 50% with +/-5% tolerance
(Factory Setting: 10%)

Debounce Time

Day to Night: 5s
Night to Day: 30s

Open Circuit Protection

Short Circuit Protection

Yes

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
