SWISHAIR2X2/E
SWISHAIR2X2/E
35W 3500K/4000K/5000K
- 100,000-Hour LED lifespan
- DLC Premium Listed
- 5-Year, limited warranty
Performance
| Watts | 35/26/18W |
| Color Temp | 3500K/4000K/5000K |
| Lumens | 2386-4702 lm |
| Efficacy | 128.5-146.4 lm/W |
| Color Accuracy | 82-84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.29A/0.21A/0.15A |
| 208V | 0.17A/0.12A/0.08A |
| 240V | 0.14A/0.11A/0.07A |
| 277V | 0.13A/0.10A/0.08A |
| Input Watts | 16.9-34.7W |

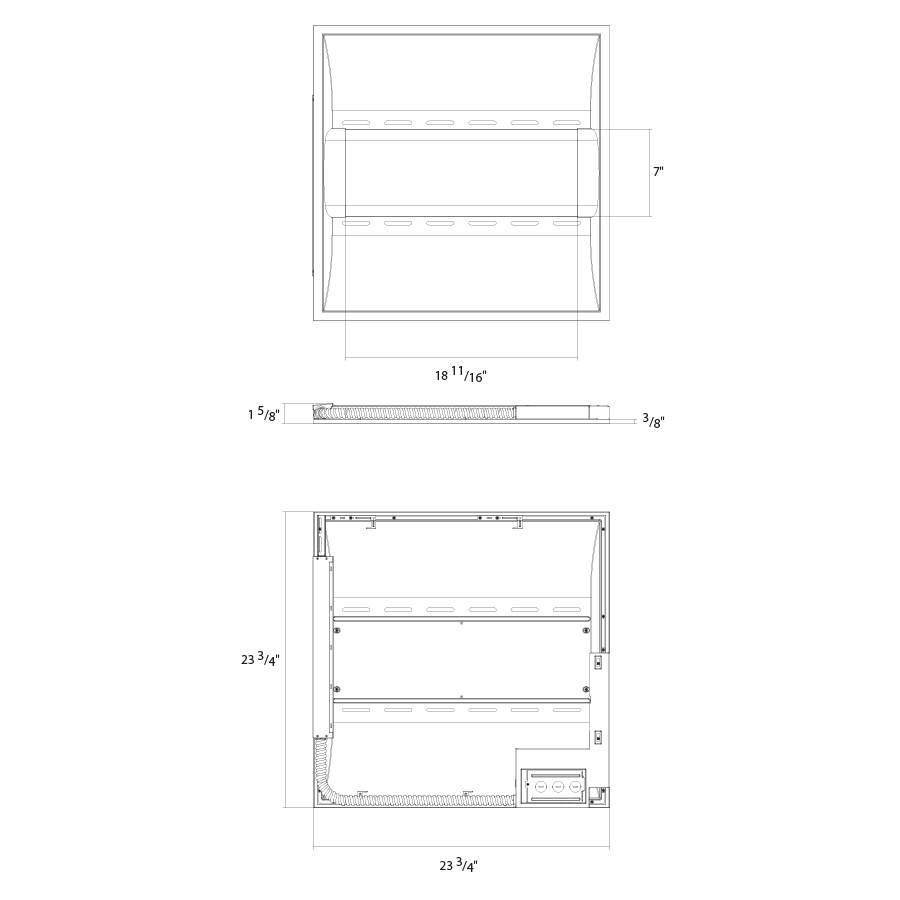

Dimensions
Weight: 6.6 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
35/26/17W (factory default 35W)
Color Temperature Adjustable:
3500K, 4000K and 5000K (factory default 4000K)
35/26/17W (factory default 35W)
Color Temperature Adjustable:
3500K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for dry and damp locations.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
IP20
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Surge Protection
2 kV L-L, 2 kV L/N-G
Battery Backup
Battery backup will operate the LED Lamp for 90 minutes if power fails. Wired for 120V-277V.
Construction
Cold Weather Starting
Minimum starting temperature is 5°C (41°F)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Lens
Diffused Polymethyl Methacrylate (PMMA)
Housing
Cold Rolled Carbon Steel Sheets and Strip (SPCC)
Size
2'x2'
Finish
Formulated for high durability and long-lasting color
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
