SWISHAIR2X4

Spec Sheet IES File LM79 Instructions Sell Sheet Folleto (Español) Family Spec Sheet Spec Sheet EZ Layout

SWISHAIR2X4

44W 3500K/4000K/5000K

100,000-Hour LED lifespan

DLC Premium Listed

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	44/35/26W
Color Temp	3500K/4000K/5000K
Lumens	3681-6047 lm
Efficacy	137.8-150.8 lm/W
Color Accuracy	82-83 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.35A/0.28A/0.21A
208V	0.21A/0.16A/0.12A
240V	0.18A/0.14A/0.11A
277V	0.15A/0.13A/0.10A
Input Watts	24.9-42.5W

EZ-Layout

Create Custom Lighting Layout

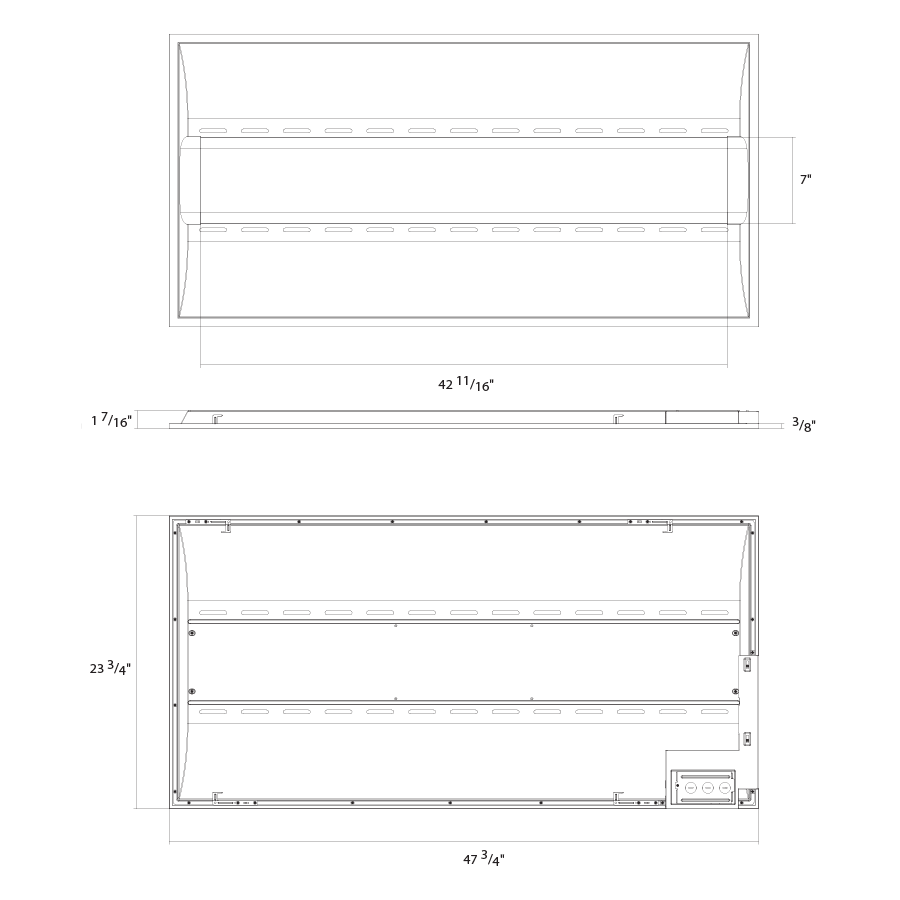

Dimensions

Weight: 8.9 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
44/35/26W (factory default 44W)
Color Temperature Adjustable:
3500K, 4000K and 5000K (factory default 4000K)

Compliance

UL Listed

Suitable for dry and damp locations.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

IP20

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.
DLC Product Code: S-1Y204R

Electrical

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Surge Protection

2 kV L-L, 2 kV L/N-G

Construction

Cold Weather Starting

The minimum starting temperature is -4°F (-20°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Lens

Diffused Polymethyl Methacrylate (PMMA)

Housing

Cold Rolled Carbon Steel Sheets and Strip (SPCC)

Size

2'x4'

Finish

Formulated for high durability and long-lasting color

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
