SWISHFA-EDGE2X4-835U/E2
SWISHFA-EDGE2X4-835U/E2
39W 3500K (Warm Neutral)
- Contemporary LED centerbasket with direct/indirect illumination
- Field-adjustable light output (3 discrete steps) - can be changed before, during or after installation
- 100,000-Hour LED lifespan
Performance
| Watts | 39W |
| Color Temp | 3500K (Warm Neutral) |
| Lumens | 4,970 lm |
| Efficacy | 125.8 lm/W |
| Color Accuracy | 82 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.33A |
| 208V | 0.19A |
| 240V | 0.17A |
| 277V | 0.15A |
| Input Watts | 39.5W |
Dimensions
Weight: 24.3 lbs
Technical Specifications
Compliance
UL Listed
Suitable for dry and damp locations.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PEQCR2G8
DLC Product Code: PEQCR2G8
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
8.66% at 120V, 9.95% at 277V
Power Factor
99.3% at 120V, 96% at 277V
Battery Backup
Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.
Battery Backup Light Loss Factor
0.55
Surge Protection
2kV
Construction
Operating Temperature
-20°C (-4°F) to 40°C (104°F)
IC Rated
Suitable for direct contact with insulation
Housing
Sheet metal and extruded aluminum
Reflector
Aluminum with high reflectance white finish, optimized for uniform distribution.
Lens
Frosted polystyrene
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Recessed into T-grid ceiling. Surface and recessed mounting kits available for drywall ceilings.
LED Characteristics
LEDs
Long-life, high-efficacy, discrete, surface-mount LEDs
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products
SWISHFA-EDGE2X4-835U/E2
Panels & Troffers 4970 Lumens Swish Field Adjustable 29/39/49W 3500K 120V-277V Battery Backup
GN2LED13YSAD11B
Decorative 329 Lumens Gooseneck 13W 3000K 35 Inches Arm Angled Dome Spot 11 Inches Black

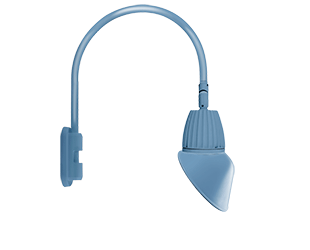

GN5LED26NSAC11LB
