SWISHFA2X4/LCBS

Spec Sheet IES File LM79 Instructions Sell Sheet Folleto (Español) Family Spec Sheet Spec Sheet EZ Layout

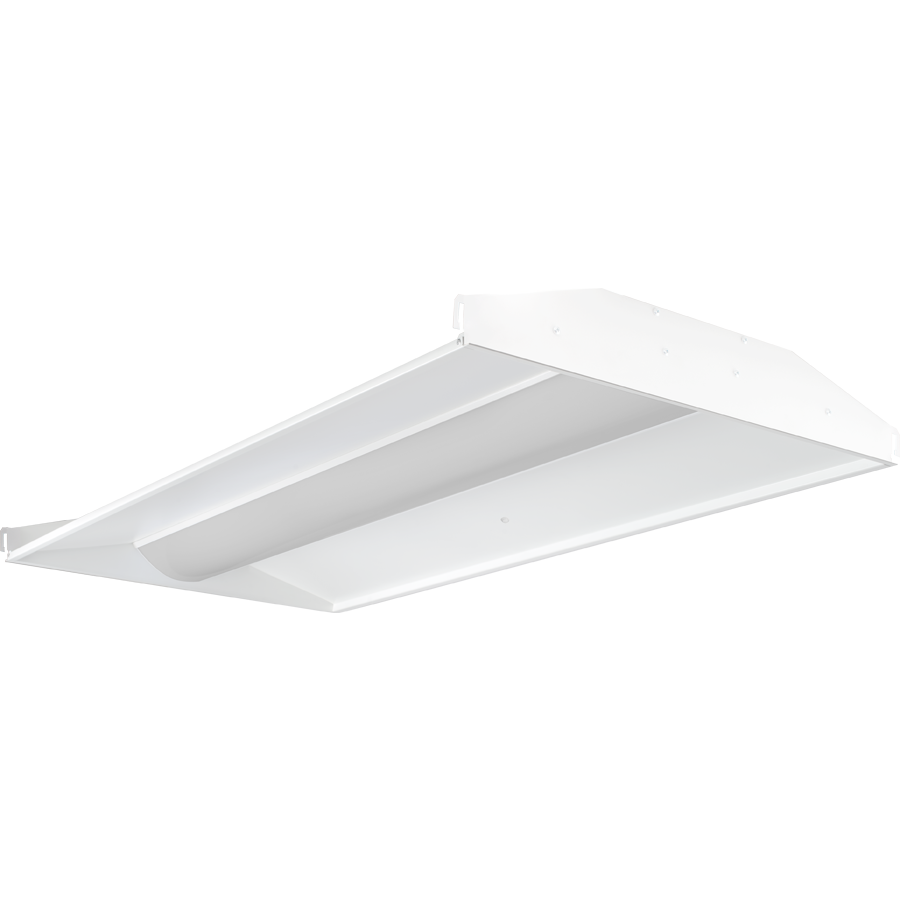

SWISHFA2X4/LCBS

Direct Connect to the Lightcloud Blue mobile app via Bluetooth, no Gateway or Hub required

Use mobile device to configure features for On/Off Control, Dim Level, Color Temperature, Schedules, Scenes, SmartShift and more

Tunable white 3000-6500K with smooth transition between color temperatures

SmartShift Ready to sync with local sunrise/sunset for circadian lighting

View Technical Specs

View Price & Availability

Performance

Watts	50W
Color Temp	SmartShift
Lumens	5,500 lm
Efficacy	110
Color Accuracy	80 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.45A
208V	0.26A
240V	0.23A
277V	021A
Input Watts	50W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 23.0 lbs

Technical Specifications

Lightcloud

Lightcloud Blue

Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.
DLC system - N1XMLOEATBA
Learn more at www.lightcloud.com

Gateway Required

Communication Protocol

Bluetooth Mesh

Range

Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction.
Up to 200 feet clear line of sight (varies by device).

Spacing Criteria

Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.

Factory Reset

Method 1: Delete from App
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete'. The device will flash on/off 5 times and return to full brightness.

Method 2: Manual
Power the device off and on 5x consecutively. Do not allow less than 4s to elapse from switching off to on. Do not allow more than 2s to elapse from switching on to off. The device will flash 3x, then reset to 100% brightness at default CCT.

Method 3: Rapid Reset Tool
The Rapid Reset process must be done by a professional electrician qualified by RAB. Reach out to your RAB sales manager to request a Rapid Reset Tool. The tool simply needs to be placed directly on the back of the fixture for 2s or until the lamp/luminaire flashes 3x, then resets to 100% brightness at the default CCT.

SmartShift

SmartShift is the most advanced - yet easiest to use - circadian lighting system, which syncs white color tuning with the local sunrise and sunset.
Requires the NANO/LCB (sold separately)

Performance

Product Type

Center Basket Troffer - Tunable White

Description

Field-adjustable center basket troffer available in 2x2 and 2x4, now with SmartShift circadian lighting.

Input Wattage

50W

Nominal Lumens

5500lm

Efficacy

110lm/W

L70 Lifespan

100,000-Hour LED lifespan based on IES LM-70 results

Electrical

THD

<30%

Power Factor

>0.95

Dimmable

Yes via the Lightcloud Blue mobile app and devices. This luminaire will not operate properly when connected to a standard (incandescent) dimmer or dimming control.

Input Voltage

120-277V

Operating Frequency

50/60Hz

Input Current @ 120V (mA)

450mA

Input Current @ 208V (mA)

260mA

Input Current @ 240V (mA)

230mA

Input Current @ 277V (mA)

210mA

Operating Temperature

-22°F to 104°F (-30°C to 40°C)

Flicker

Low Flicker

Sensor Settings

Sensor Connection Type

RJ09

Max Mounting Height

9 ft

Detection Range

20 ft diameter at 9 ft mounting height

Sensor Technology

Passive Infrared (PIR)

Default Setting

Uncommissioned State:
Motion Sensitivity: High
Brightness when triggered : 100%
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off

Commissioned State:
Motion Sensitivity: High
Brightness when triggered: Last on status
Hold time: 20 minutes
When vacant: Off

Adjustable Sensor Settings?

Yes, using the Lightcloud Blue mobile app

Sensing Type

Occupancy, Vacancy

Occupied Actions

On or On at a Dim Level

Vacant Actions

Off or On at a Dim Level

Occupancy Timeout

1 minute to 240 minutes

Daylight Sensing

Closed loop daylight harvesting with continuous dimming. Specify settings using the Lightcloud Blue mobile app.

High/Low Dim Level

The High Dim Level (HDL) is limited to 50%-70%

The Low Dim Level (LDL) is limited to 20%-70%

LED Characteristics

Beam Angle

110°

Color Temperature

Default: 3000K
Adjustable using the Lightcloud Blue mobile app
Tunable White 3000K - 6500K

Color Accuracy (CRI)

>80 CRI

Natural Spectrum

Color Consistency

<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Recessed into T-grid ceiling. Surface and recessed mounting kits available for drywall ceilings.

Construction

Size

2'x4'

Shape

Rectangle

Finish

White

Enclosure Material

Metal & Plastic

Lens Finish

Frosted

Compliance

Listings

UL Lsted, UL Recognized, UL Classified

Environment

Suitable for use indoors in dry and damp environments.

IC Rated

Air Tight

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.

Certification Model Number

SWISHFA2X4/LCBS

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

CCEA Compliant

Luminaire Requirements used in Environmental Air Space per the electrical code specification of the City of Chicago

NSF Listed

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Other

Compatible Accessories

SMKEZPAN2X4
2x4 Surface mount kit

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
