T8-11-36G-8CCT-BYP

Spec Sheet IES File Instructions Family Spec Sheet Spec Sheet EZ Layout

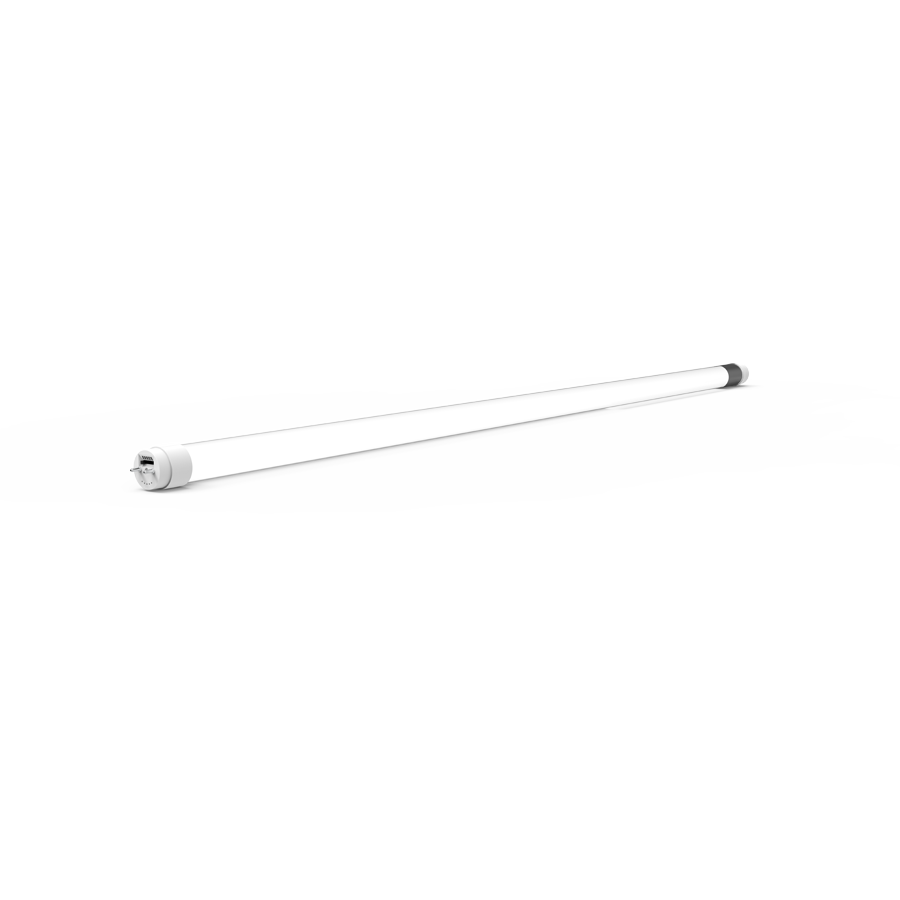

T8-11-36G-8CCT-BYP

Replacement for traditional fluorescent T8 lamps

Single or double-ended line voltage wiring

Selectable CCT: 3000/3500/4000/5000/6500K

Frosted glass lens diffuses light evenly

50,000-Hour lifespan, DLC Listed, UL Classified, and dimmable in certain applications. Contact RAB for more information.

View Technical Specs

View Price & Availability

Performance

Watts	11W
Color Temp	3000/3500/4000/5000/6500K
Lumens	1,500 lm
Efficacy	136
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V
208V
240V
277V
Input Watts	11W

EZ-Layout

Create Custom Lighting Layout

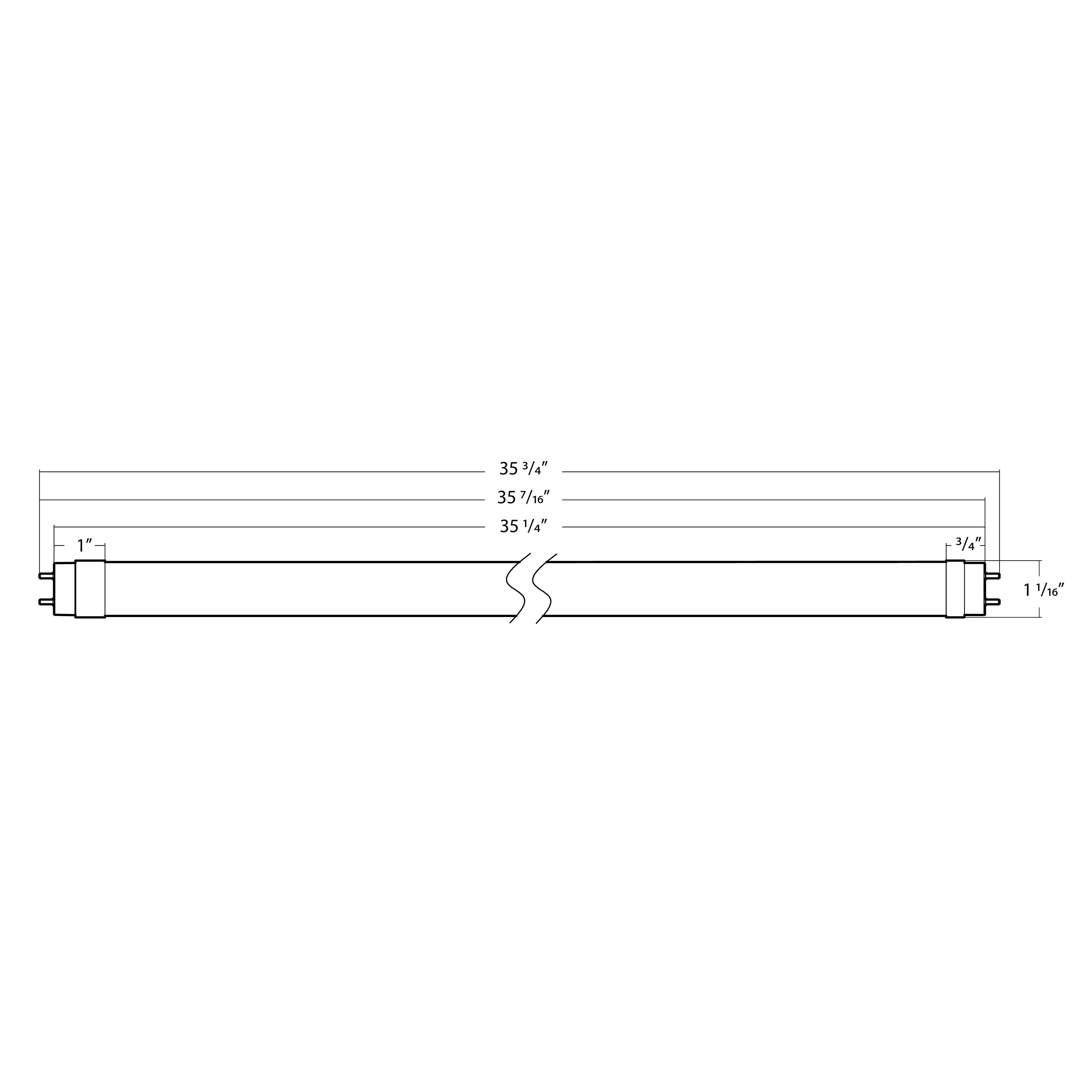

Dimensions

Weight: 0.4 lbs

Technical Specifications

Performance

Product Type

Linear Tube

Description

Type B single- and double-ended bypass tubes with adjustable color temperature for simplified selection and installation.

Wattage Equivalency

25W T8 fluorescent

Input Wattage

11W

Lumens (Nominal)

1,500lm

Efficacy

136lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current 120-277V 50/60 Hz; @120V: 102mA; @277V: 44mA

THD

<20%

Power Factor

0.9

Dimmable

Yes, dimmable down to 20% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120-277V

Operating Temperature

-4°F to 113°F (-20°C to 45°C)

Flicker

3000/6000K_<35%
3500/4000/5000K_45%

LED Characteristics

Beam Angle

200°

Color Temperature

Default: 4000K
Field adjustable via dip switch 3000/3500/4000/5000/6500K

Color Accuracy (CRI)

≥80 CRI

R9 Value

High color performance with R9 greater than 0

Color Consistency

<6-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Installation Method

UL Type B, Ballast Bypass

Base Type

G13

Construction

Length

3 ft

Shape

Finish

White

Enclosure Material

Glass

Lens Finish

Frosted

Compliance

Listings

UL Recognized, UL Classified

Environment

Suitable for use indoors in dry and damp environments.

Fixture Rating

Suitable for use in enclosed fixtures

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Certification Model Number

T20146(T8-11-36G-8CCT-BYP)

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

NSF Listed

Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
