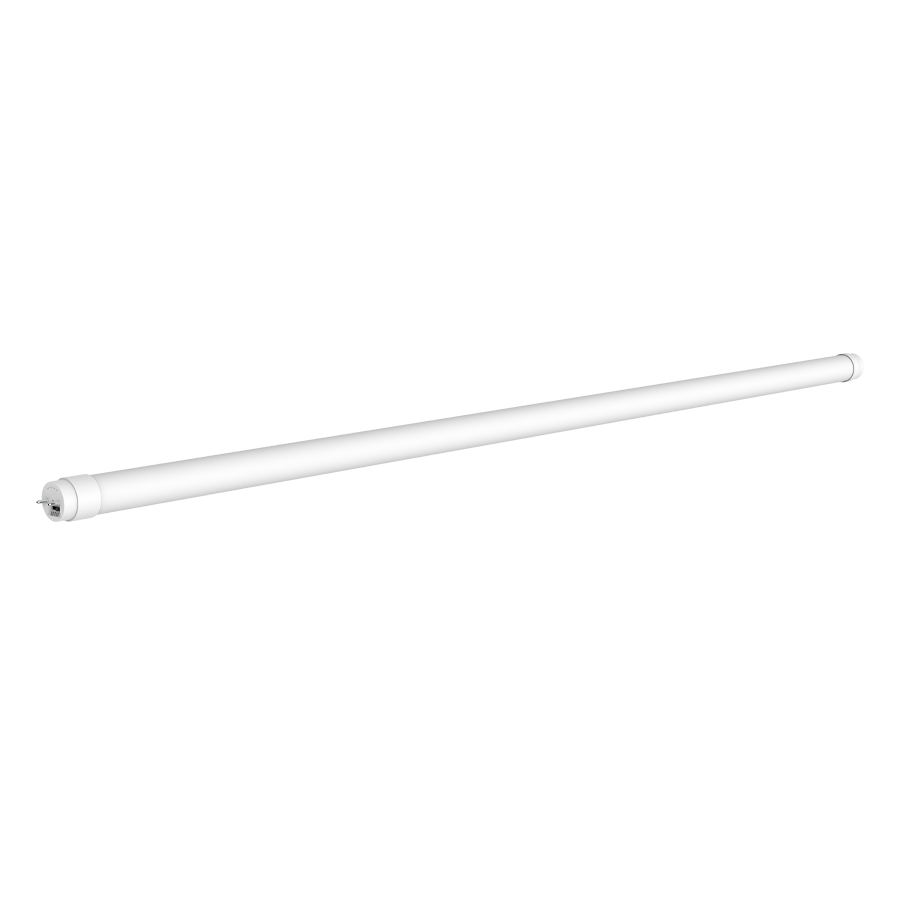

T8-11-36GC-8CCT-HYB
T8-11-36GC-8CCT-HYB
- Direct replacement for fluorescent lamps: F32T8/32W, F32T8/30W, F32T8/28W, F32T8/25W
- TYPE A - Plug-and-play compatible with most common commercial T8 electronic ballasts
- TYPE B - Can be wired directly to line voltage 120-277V. Can be wired using single- or double-ended method
- Shatter resistant PET Coating makes these tubes perfect for demanding applications
- 5 color temperatures in 1 SKU (3000/3500/4000/5000/6500K)
Performance
| Watts | 11W |
| Color Temp | 3000/3500/4000/5000/6500K |
| Lumens | 1,500 lm |
| Efficacy | 136 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 11W |

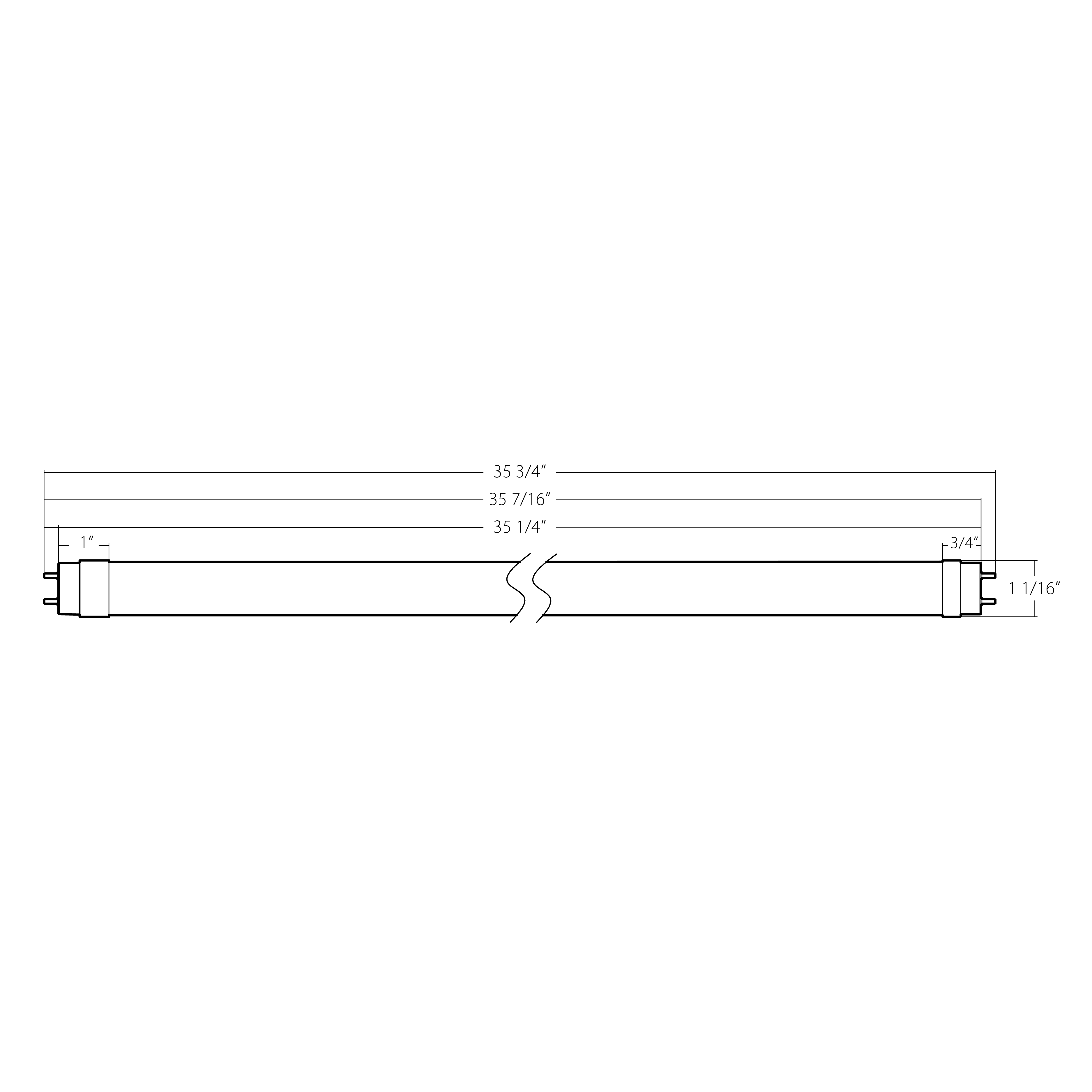

Dimensions
Weight: 0.4 lbs
Technical Specifications
Performance
Product Type
Linear Tube
Description
Hybrid Type A/B tubes allow installation on the ballast or direct wiring to line voltage. Now available with adjustable 5 CCT switch in clear or frosted lens.
Wattage Equivalency
25W Fluorescent
Input Wattage
11W
Lumens (Nominal)
1,500lm
Efficacy
136lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
THD
25%
Power Factor
>0.9
Dimmable
No
Input Voltage
120-277V
Operating Frequency
50/60Hz
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
Flicker
<40%
LED Characteristics
Beam Angle
220°
Color Temperature
Field adjustable via dip switch 3000/3500/4000/5000/6500K
Color Accuracy (CRI)
80 CRI
R9 Value
High color performance with R9 greater than 0
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Installation Method
UL Type A+B, Hybrid
Base Type
G13
Construction
Length
3 ft
Shape
T8
Finish
White
Endcap Material
Plastic
Enclosure Material
Coated Glass
Lens Finish
Frosted
Compliance
Listings
UL Listed, UL Classified
Environment
Suitable for use indoors in dry and damp environments.
Fixture Rating
Suitable for use in enclosed fixtures
Energy Star Approved
No
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Certification Model Number
T8-11-36GC-8CCT-HYB
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
NSF Listed
Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
