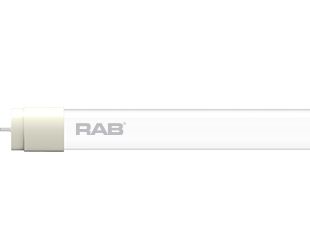

T8-11H-48G-840-EXT

Replacement for conventional fluorescent T8 and T12 linear tubes

Dedicated External driver must be paired together with RAB tubes

Can be installed using single ended or double ended wiring method

Works with non-shunted sockets AND shunted sockets.

50,000 hour Lifespan

Rated for use in enclosed and open fixtures in dry or damp locations

Diffused frosted lens will maintain the same light quality over time

Instant on full brightness

Low Flicker less than 1%

UL Classified, DLC Listed

View Technical Specs

View Price & Availability

Performance

Watts	11W
Color Temp	4000K
Lumens	2,100 lm
Efficacy	162
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Input Voltage	Driver Dependent
Power Factor	0.9
Flicker	N/A
THDi	<25%

EZ-Layout

Create Custom Lighting Layout

Dimensions

Technical Specifications

Performance

Product Type

Linear

Input Wattage

11W

Lumens

2,100lm

Efficacy

162lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Compliance

UL Listed

Suitable for damp locations

Enclosed Fixtures

Suitable for use in enclosed fixtures

LED Characteristics

Color Temperature

4000K

Color Accuracy (CRI)

≥80 CRI

Beam Angle

220°

Construction

Bulb Shape

Endcap Material

Plastic

Enclosure Material

Glass

Installation

Base Type

G13

Electrical

THD

<25%

Power Factor

0.9

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Input Voltage

Driver Dependent

Operating Frequency

50/60Hz

Dimming

Yes with 0-10V dimmer. See Dimmer Compatibility List.

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
