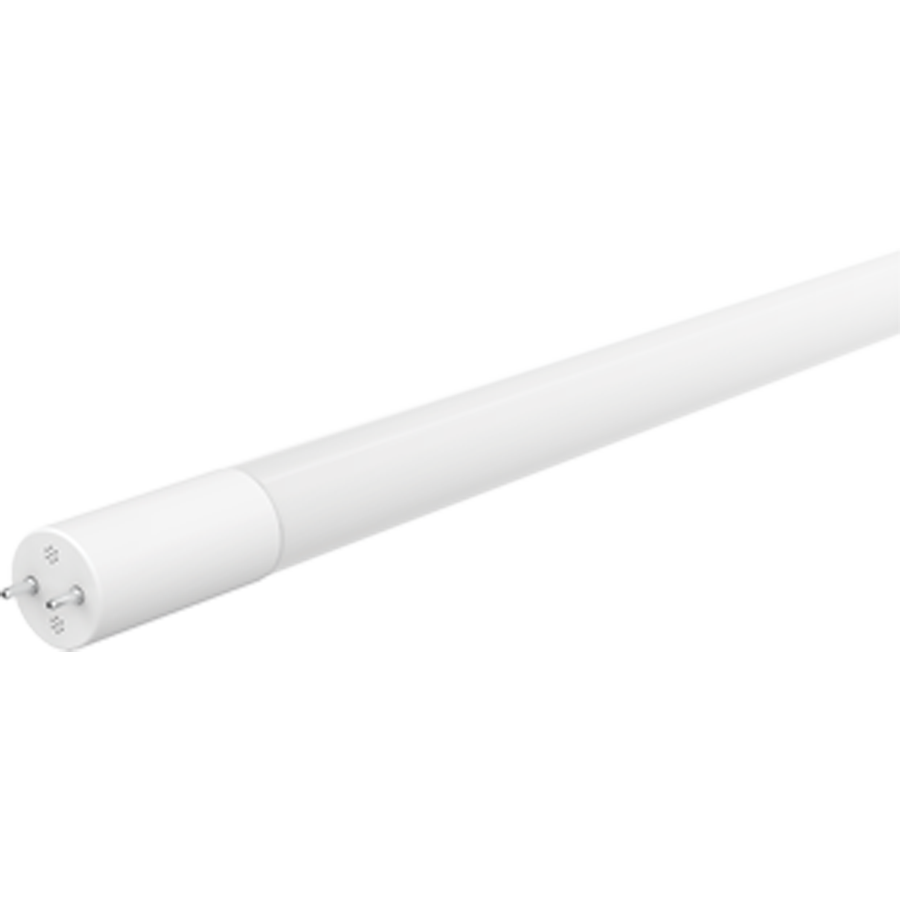

T8-8-48G-850-SD-BYP
T8-8-48G-850-SD-BYP
- Replacement for conventional fluorescent T8 and T12 linear tubes
- Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Single ended and double ended wiring method
- Works with non-shunted sockets and shunted sockets.
- Approximately 50% more energy efficient when compared to Fluorescent T8 lamps
Performance
| Watts | 8W |
| Color Temp | 5000K |
| Lumens | 1,650 lm |
| Efficacy | 194 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 120/277V |
| Power Factor | >0.9 |
| Flicker | N/A |
| THDi | 25% |

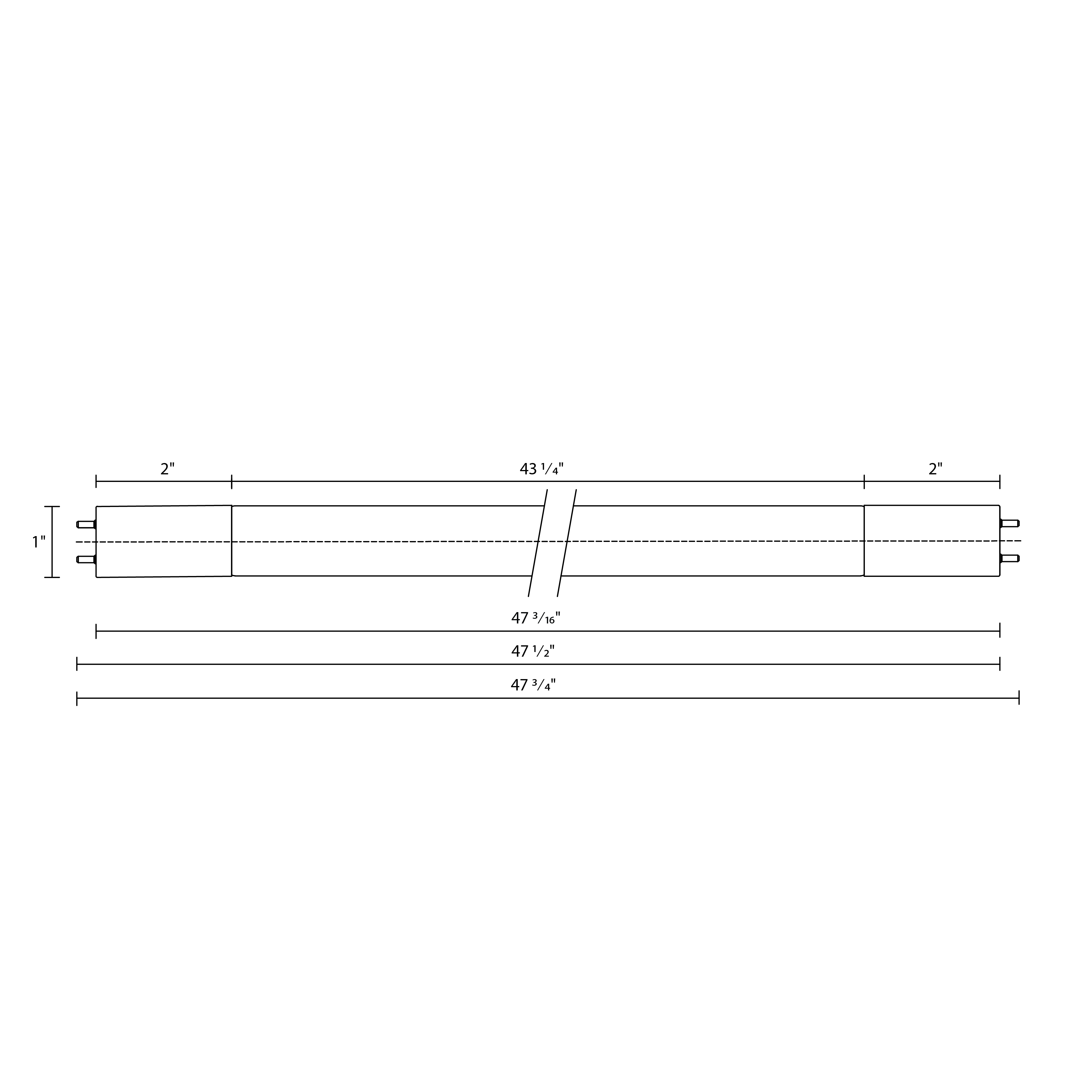

Dimensions
Weight: 0.4 lbs
Technical Specifications
Performance
Product Type
Linear Tube
Description
Single Ended or Double Ended wiring method makes these Type B tubes super flexible for in field installation
Wattage Equivalency
32W Fluorescent T8
Input Wattage
8.5W
Lumens
1,650lm
Efficacy
194lm/W
Lifespan
50,000-Hour LED lifespan based on IESlm-70 results
Electrical
Driver
Constant Current, 120/277V, 50/60 Hz, 120V: 75mA; 208V: 45mA; 240V: 39mA; 277V: 34mA
THD
<25%
Power Factor
>0.9
Dimmable
No
Input Voltage
120/277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
75mA
Input Current @ 208V (mA)
45mA
Input Current @ 240V (mA)
39mA
Input Current @ 277V (mA)
34mA
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
LED Characteristics
Beam Angle
210°
Color Temperature
5000K
Color Accuracy (CRI)
>80 CRI
R9 Value
High color performance with R9 greater than 0
Color Consistency
<5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Installation Method
UL Type B, Ballast Bypass
Base Type
G13
Construction
Length
4 ft
Shape
T8
Endcap Material
Plastic
Enclosure Material
Glass
Lens Finish
Frosted
Compliance
Listings
UL Classified, UL Recognized
Environment
Suitable for use indoors in dry and damp environments.
Fixture Rating
Suitable for use in enclosed fixtures
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC ID
S-6NR8L7
Certification Model Number
T10305(T8-8-48G-850-SD-BYP)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
NSF Listed
Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Accessories
DRI-5-EMGR-T8
5W EM driver for T8 Bypass DE or SD models
DRI-10-EMGR-TYPE B
10W EM driver for T8 Bypass DE or SD models
5W EM driver for T8 Bypass DE or SD models
DRI-10-EMGR-TYPE B
10W EM driver for T8 Bypass DE or SD models
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
