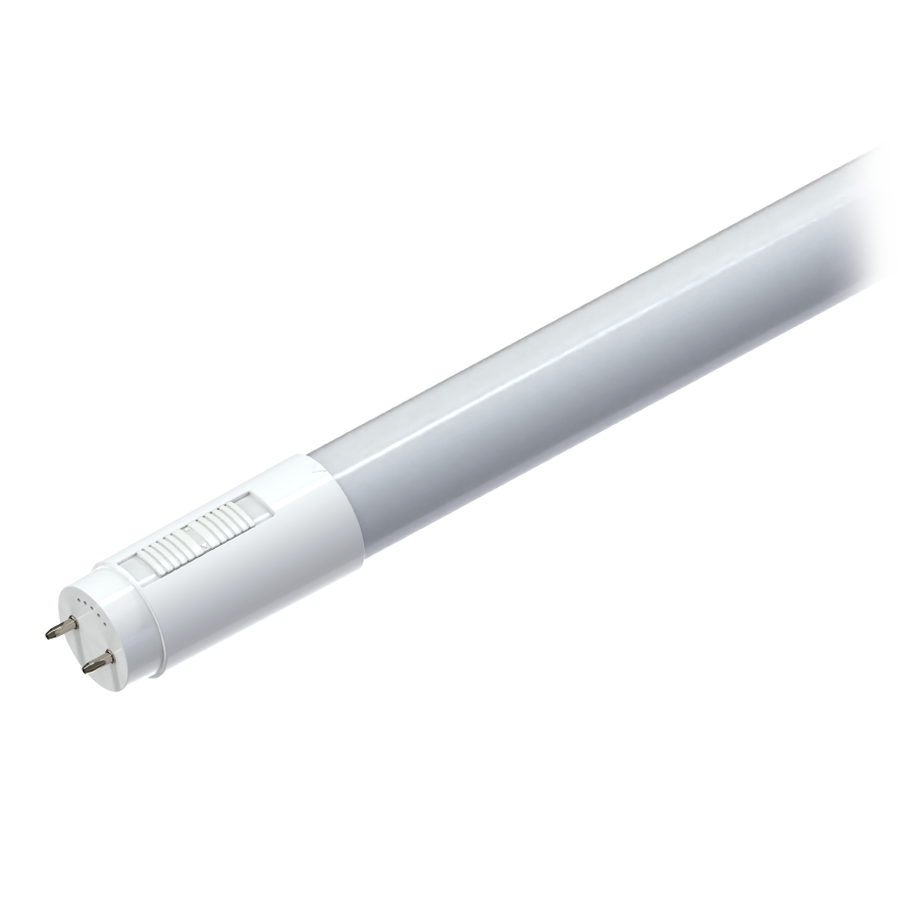

T8-9-36G-8CCT-BYP

Replacement for traditional fluorescent T8 lamps

Single or double-ended line voltage wiring

3000/3500/4000/5000/6500K

Frosted glass lens diffuses light evenly

50,000-Hour lifespan, DLC Listed, UL Classified, and dimmable in certain applications. Contact RAB for more information.

View Technical Specs

View Price & Availability

Performance

Watts	9W
Color Temp	3000/3500/4000/5000/6500K
Lumens	1,130-1,250 lm
Efficacy	125-139 lm/W
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Input Voltage	N/A
Power Factor	N/A
Flicker	N/A
THDi	N/A

Dimensions

Weight: 0.4 lbs

Technical Specifications

Performance

Product Type

Linear Tube

Description

These Type B single + double-ended bypass tubes pack a ton of features into one lamp with selectable CCT. Selectable wattage reduces stocking SKUs even more!

Wattage Equivalency

25W T8 fluorescent

Input Wattage

Lumens

1,130lm @ 3000K;
1,150lm @ 3500K;
1,250lm @ 4000K;
1,250lm @ 5000K;
1,250lm @ 6500K

Efficacy

125lm/W @ 3000K;
128lm/W @ 3500K;
134lm/W @ 4000K;
134lm/W @ 5000K;
134lm/W @ 6500K

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

THD

<20%

Power Factor

0.9

Dimmable

Yes, but not reccommended for dimming applications.

Input Voltage

120-277V

Operating Frequency

50/60Hz

Input Current @ 120V (mA)

68mA

Input Current @ 208V (mA)

39mA

Input Current @ 240V (mA)

34mA

Input Current @ 277V (mA)

29mA

Operating Temperature

-4°F to 113°F (-20°C to 45°C)

Flicker

50%

LED Characteristics

Beam Angle

300°

Color Temperature

Field adjustable via dip switch 3000/3500/4000/5000/6500K

Color Accuracy (CRI)

≥80 CRI

R9 Value

High color performance with R9 no greater than 0

Color Consistency

<5-step MacAdam Ellipse @ 3000K/6500K binning to achieve consistent fixture-to-fixture color

<7-step MacAdam Ellipse @ 3500K/4000K/5000K binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Installation Method

UL Type B, Ballast Bypass

Base Type

G13

Construction

Length

3 ft

Bulb Shape

Finish

White

Endcap Material

Polycarbonate

Enclosure Material

Glass

Lens Finish

Frosted

Compliance

Listings

UL Recognized, UL Classified

Environment

Suitable for use indoors in dry and damp environments.

Fixture Rating

Suitable for use in enclosed fixtures

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.

Certification Model Number

T10293(T8-9-36G-8CCT-BYP)

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

NSF Listed

Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.

Rohs

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
