T8HO-40-96G-R17D-840-DE-BYP
T8HO-40-96G-R17D-840-DE-BYP
- Replacement for conventional fluorescent T8 and T12 linear tubes
- Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Double ended wiring method
- Works with shunted sockets.
- Approximately 50% more energy efficient when compared to Fluorescent T8 lamps
- 50,000 hour Lifespan.
- Rated for use in enclosed and open fixtures in dry or damp locations
- Diffused frosted lens will maintain the same light quality over time
- Instant on full brightness
- Environmentally friendly, no mercury used
- NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)
- Internal thermal fuse for added safety
- Emergency back up available
Performance
| Watts | 40W |
| Color Temp | 4000K |
| Lumens | 5,500 lm |
| Efficacy | 138 |
| Color Accuracy | 82 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 120-277V |
| Power Factor | 0.9 |
| Flicker | 50% |
| THDi | ≤20+5% |
Dimensions
Weight: 0.9 lbs
Technical Specifications
Performance
Product Type
Linear
Input Wattage
40W
Lumens
5,500lm
Efficacy
138lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Wattage Equivalency
86W Fluorescent
Compliance
UL Listed
Suitable for damp locations
Enclosed Fixtures
Suitable for use in enclosed fixtures
LED Characteristics
Color Temperature
4000K
Color Accuracy (CRI)
82 CRI
Beam Angle
210°
Electrical
THD
≤20+5%
Power Factor
0.9
Dimmable
Yes, 0-10V
Flicker
50%
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Input Voltage
120-277V
Operating Frequency
50/60Hz
Construction
Bulb Shape
T8
Endcap Material
Plastic
Enclosure Material
Glass
Installation
Base Type
R17d
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
\
Recently Viewed Products
T8HO-40-96G-R17D-840-DE-BYP
Linear Tubes 5500 Lumens T8Ho 40W Base R17D 4000K Double Ended Wiring Method
GN3LED13YRACLB
Decorative 515 Lumens Gooseneck 13W 3000K Up Curve 30 Inches High & 25 Inches From The Wall Angled Cone Rectangular 15 Inches Light Blue
HALV18L927-TL-CU/BL
Architectural 366 Lumens Halv Forward Light 25W 90Cri 2700K Toffee Leaves Lens Copper Finish Bi-Level Control
GN1LED13NRST11BWN
Decorative 577 Lumens Gooseneck 13W 4000K 24 Inches Arm Straight Shade Rectangular 11 Inches Brown

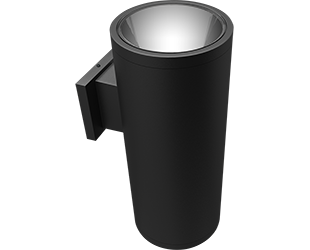

CDLED6WU-26W-50D935-K
