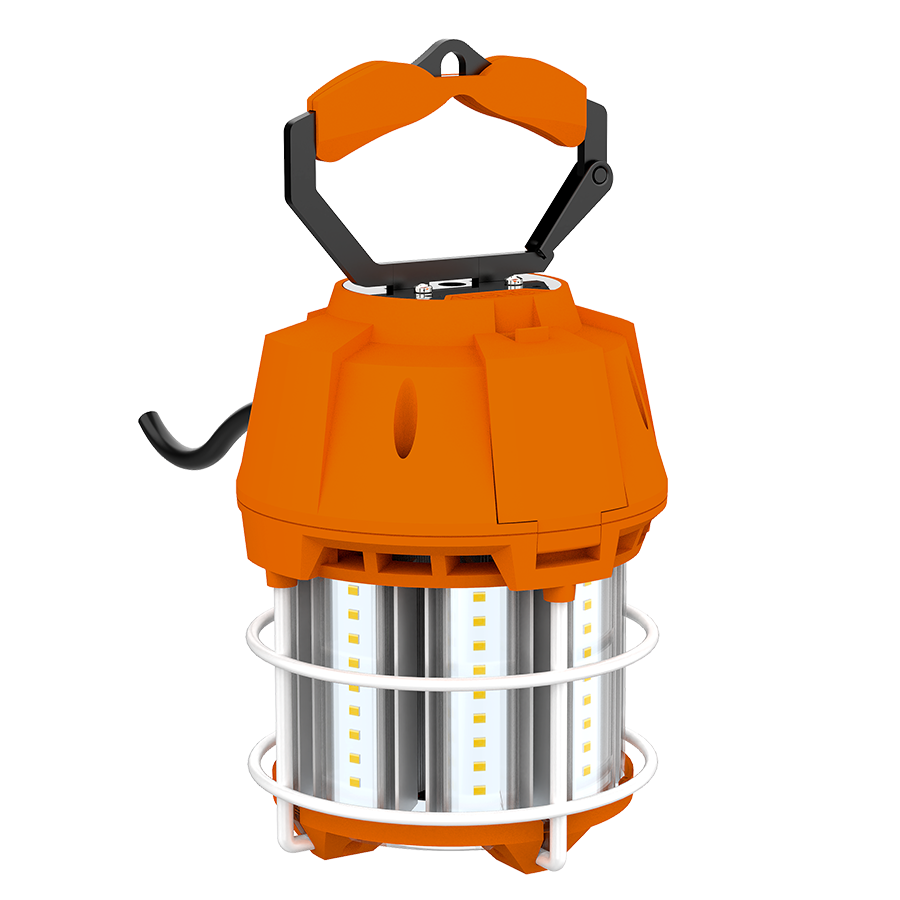

TEMP-60-850
TEMP-60-850
- Impact resistant, can handle demanding construction site environments
- Omni-directional light distribution
- Lightweight design with high output
- US Cord and Plug
- IP64 Water and Dust resistant
- 6kV surge protection built in
- 50,000 hour Lifespan
- 5 Year No Compromise Warranty
Performance
| Watts | 60W |
| Color Temp | 5000K |
| Lumens | 7,200 lm |
| Efficacy | 120 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 120V |
| Power Factor | >0.9 |
| Flicker | <30% |
| THDi | <20% |
Dimensions
Weight: 2.8 lbs
Technical Specifications
Performance
Product Type
LED temporary High Bay
Input Wattage
60W
Lumens
7,200lm
Efficacy
110lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
250W
LED Characteristics
Color Accuracy (CRI)
80
Color Temperature
5000K
Beam Angle
360°
Construction
Bulb Shape
Temporary Work Light
Enclosure Material
Polycarbonate
Housing Finish
Construction Orange
Weight
2.78 lbs
Installation
Cord & Plug
US Plug, 6FT cord
Installation Method
US Cord and Plug, linkable up to 10 units
Electrical
THD
<20%
Power Factor
>0.9
Input Voltage
120V
Operating Frequency
60 Hz
Operating Temperature
-30°C to 60°C
Surge Protection
6 kV
Other
Technology EQ
Metal Halide or High Pressure Sodium
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
Listings
UL Listed
Environment
Damp / Open
IP Rating
IP64
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Certification Model Number
H10040(TEMP-60-850)
