TEMP34-150
- Omnidirectional light output
- Swappable plug accessories for hardwired, 120V, 277V
- IP64 rating protects against dust and water
- Carabiner clip for easy mounting at the job site
- 6kV surge protection built in
Performance
| Watts | 150W |
| Color Temp | 5000K |
| Lumens | 18,000 lm |
| Efficacy | 120 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 30,000 Hours |
| Type | Constant Current |
| 120V | 1.29A |
| 208V | 0.77A |
| 240V | 0.69A |
| 277V | 0.60A |
| Input Watts | 150W |

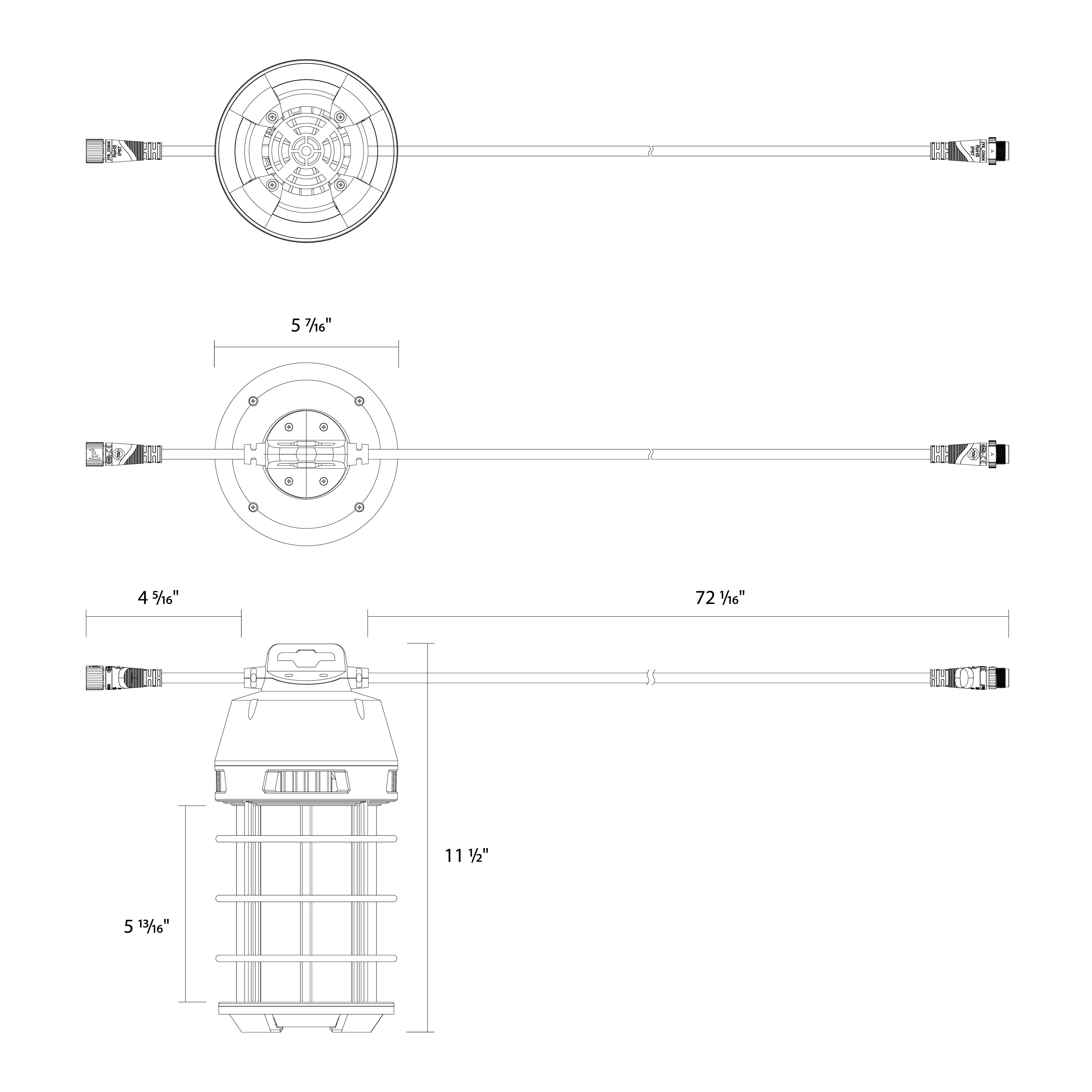

Dimensions
Weight: 5.0 lbs
Technical Specifications
Performance
Product Type
Temporary Work Light
Description
Temporary work light for the job site with three wiring options.
Wattage Equivalency
600W Metal Halide
Input Wattage
150W
Lumens (Nominal)
18,000lm
Efficacy
120lm/W
L70 Lifespan
30,000-hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, Class 2 100-277V 50-60Hz; 120V: 1289mA; 208V: 767mA; 240V: 689mA; 277V: 602mA
Dimmable
No
Maximum Beam Candela Power (MBCP)
2,004
Flicker
30%
Surge Protection
6 kV
LED Characteristics
Beam Angle
360°
Color Temperature
5000K
Color Accuracy (CRI)
80 CRI
R9 Value
High color performance with R9 greater than 0
Color Consistency
<6-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Construction
Shape
Work light
Housing Finish
Construction Orange
Endcap Material
Metal
Enclosure Material
Constructed from frosted, shatter-resistant polycarbonate
Compliance
Listings
UL Listed
Environment
Suitable for use indoors in dry and damp environments.
IP Rating
IP64
IC Rated
No
Air Tight
No
Energy Star Approved
No
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
NSF Listed
No
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
3-Year Limited Warranty
The RAB 3-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty
