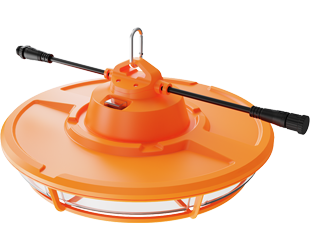

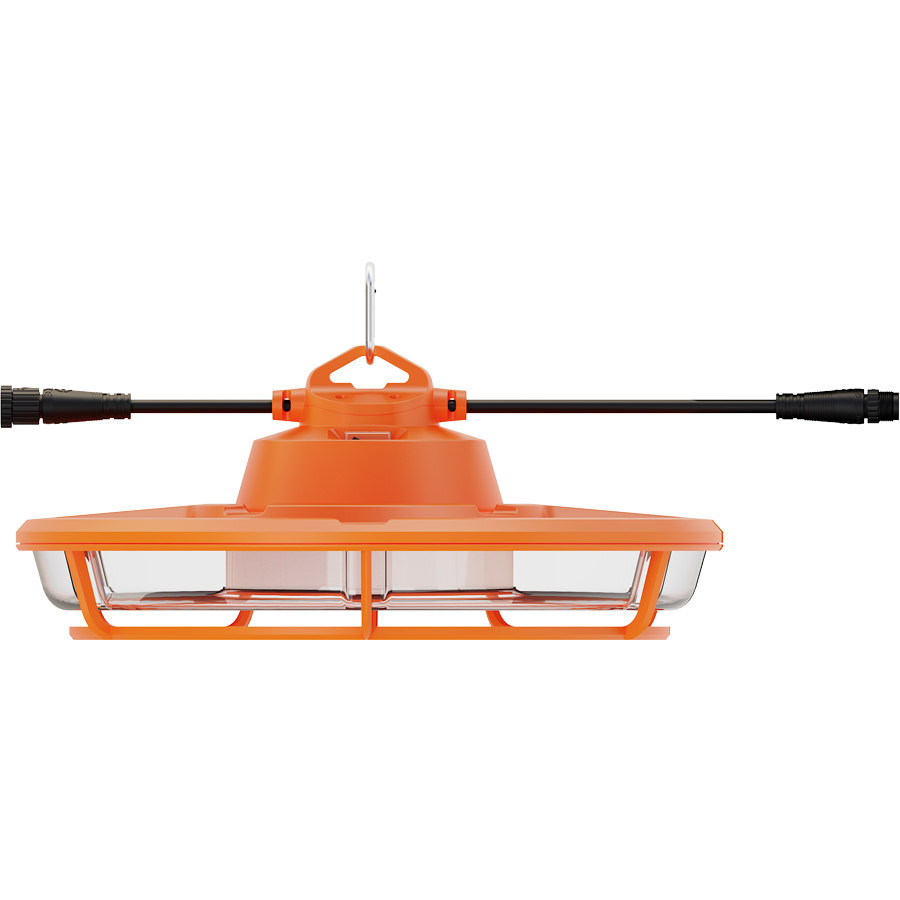

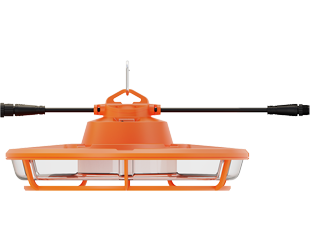

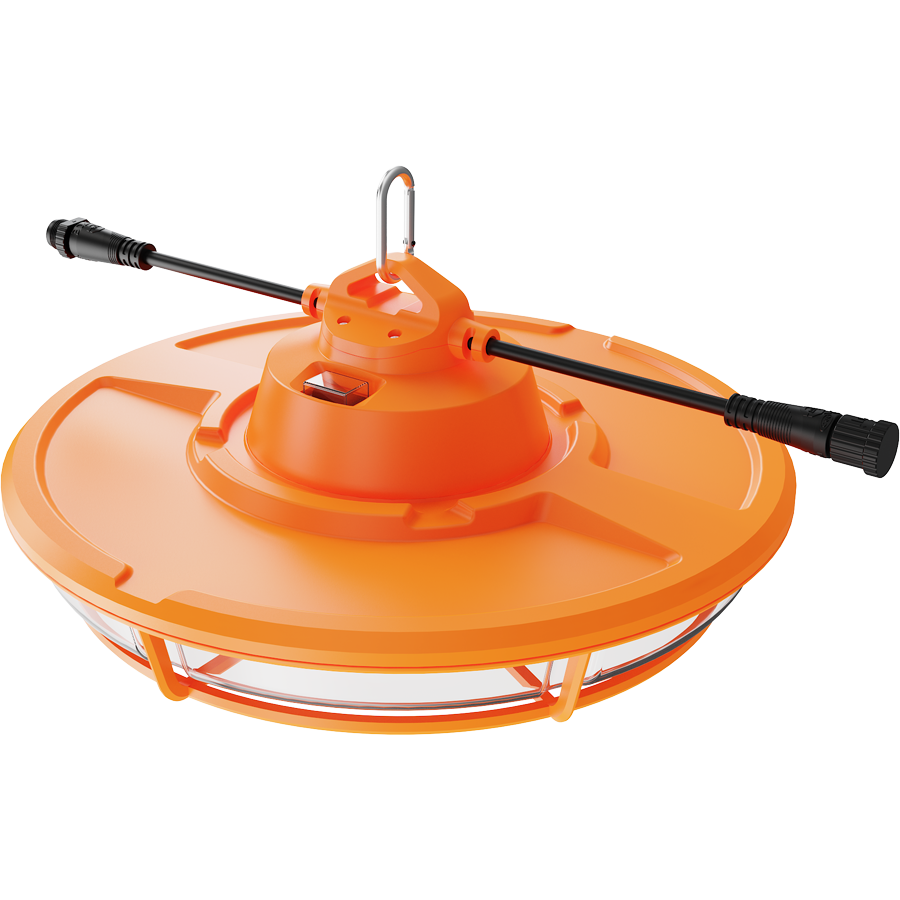

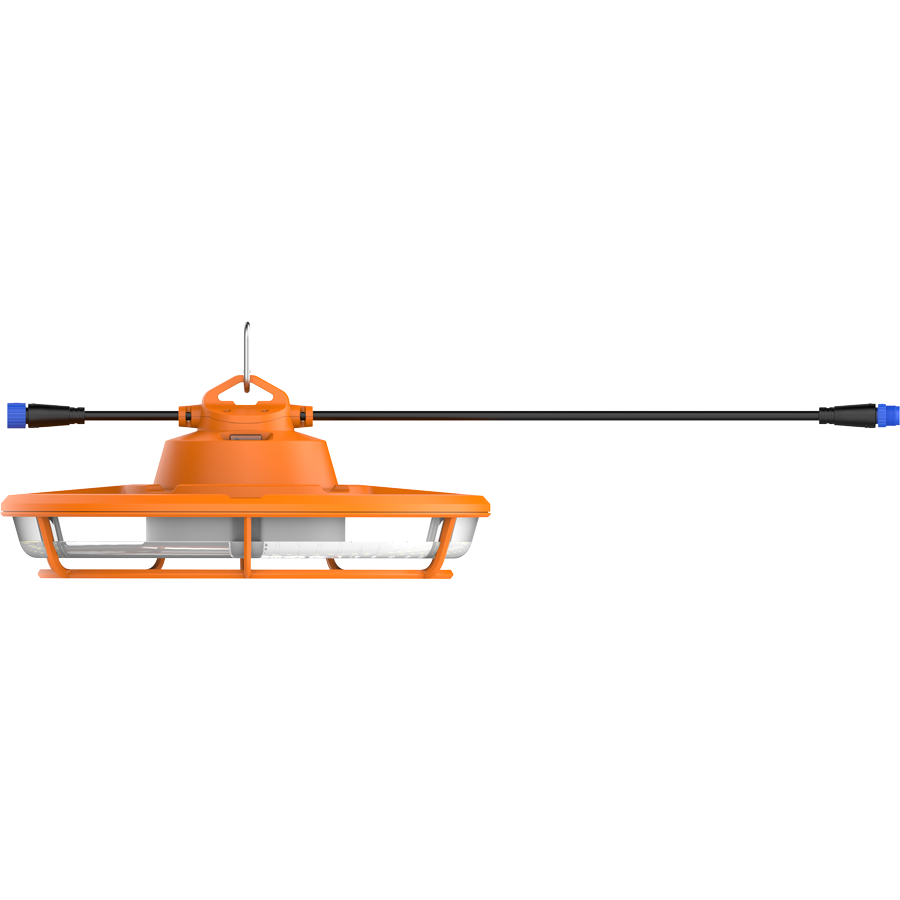

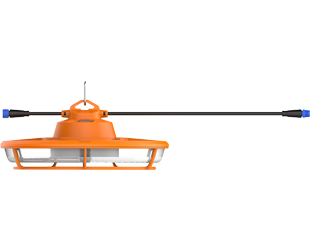

TEMPBAY-130
- Temporary UFO Highbay great for industrial applications
- Over 15,000 lumens and super bright 5000K CCT
- Robust die-cast aluminum construction with clear polycarbonate lens
- Linkable SJOW cord with water tight quick connectors to daisy chain fixtures
- 120-277V Driver, 4kV Surge protection, and IP65 Rated
- Comes with 120V NEMA 5-15 Plug and Hard Wire cable in box
- 120-277V NEMA Plug and 25FT Extension cable sold separately
Performance
| Watts | 130W |
| Color Temp | 5000K |
| Lumens | 15,304 lm |
| Efficacy | 121.82 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 1.03A |
| 208V | 0.62A |
| 240V | 0.55A |
| 277V | 0.49A |
| Input Watts | 130W |

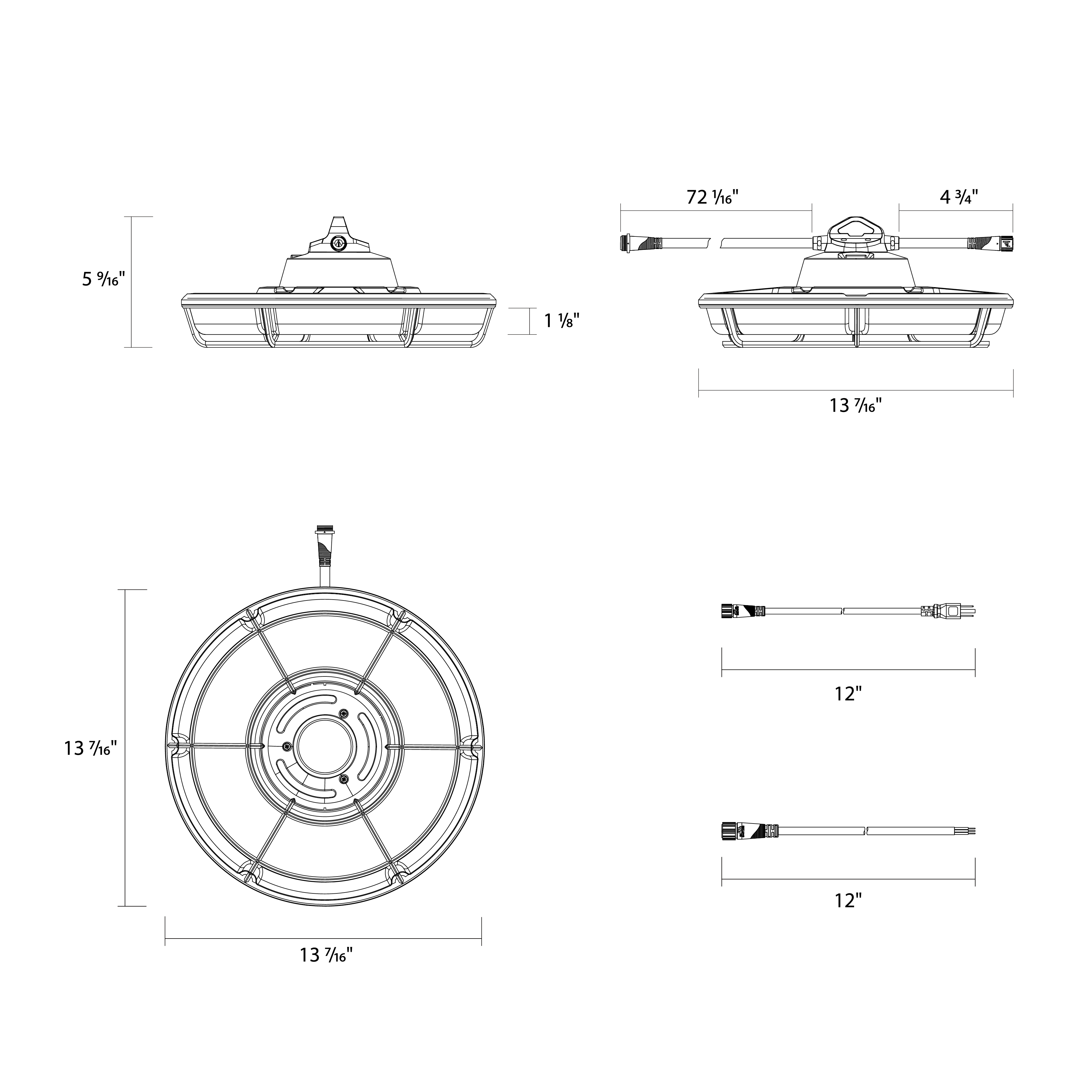

Dimensions
Weight: 4.4 lbs
Technical Specifications
Performance
Product Type
UFO High Bay Temp Light
Description
Highbay temporary construction lighting that is linkable, high output and versitle enough for any construction project
Wattage Equivalency
400W Metal Halide
Input Wattage
130W
Lumens
15,304lm
Efficacy
121.82lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current Class 1 Driver
THD
≤25%
Power Factor
≥0.9
Dimmable
No
Input Voltage
120-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
1030mA
Input Current @ 208V (mA)
620mA
Input Current @ 240V (mA)
550mA
Input Current @ 277V (mA)
490mA
Operating Temperature
-20°F to 113°F (-30°C to 45°C)
Flicker
≤30%
Surge Protection
4 kV
Other
3-Year Limited Warranty
The RAB 3-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty
LED Characteristics
Beam Angle
180°
Color Temperature
5000K
Color Accuracy (CRI)
>80 CRI
Color Consistency
<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Hardware
Comes with 1 ft 120V plug with M15 waterproof Connector, or 1Ft hard wire cable
Mounting
Comes with caribinear hook for simple mounting
Plug
18/3 AWG SJOW Cable with M15 waterproof connector
Male port with 6 ft of cable
Female port with .39 ft of cable
Male port with 6 ft of cable
Female port with .39 ft of cable

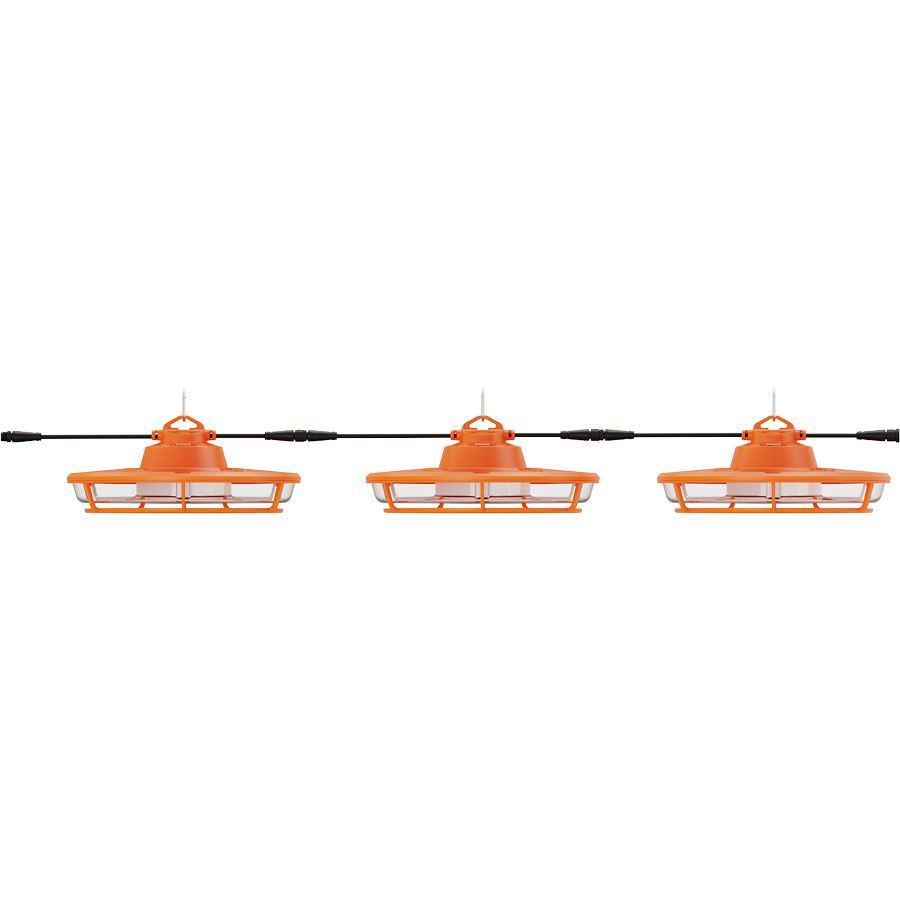

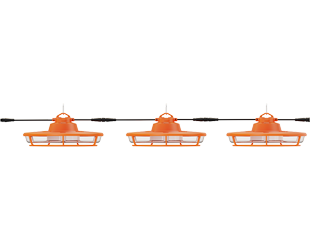

Linkable
120V - 6 pcs, Max 640W
277V - 14 pcs, Max 1260W
277V - 14 pcs, Max 1260W
Construction
Housing Finish
Construction Orange
Lens
Clear impact resistant Polycarbonate lens
Housing
Die-cast aluminum housing with integrated waterproof on/off switch
Compliance
Listings
UL1598
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
