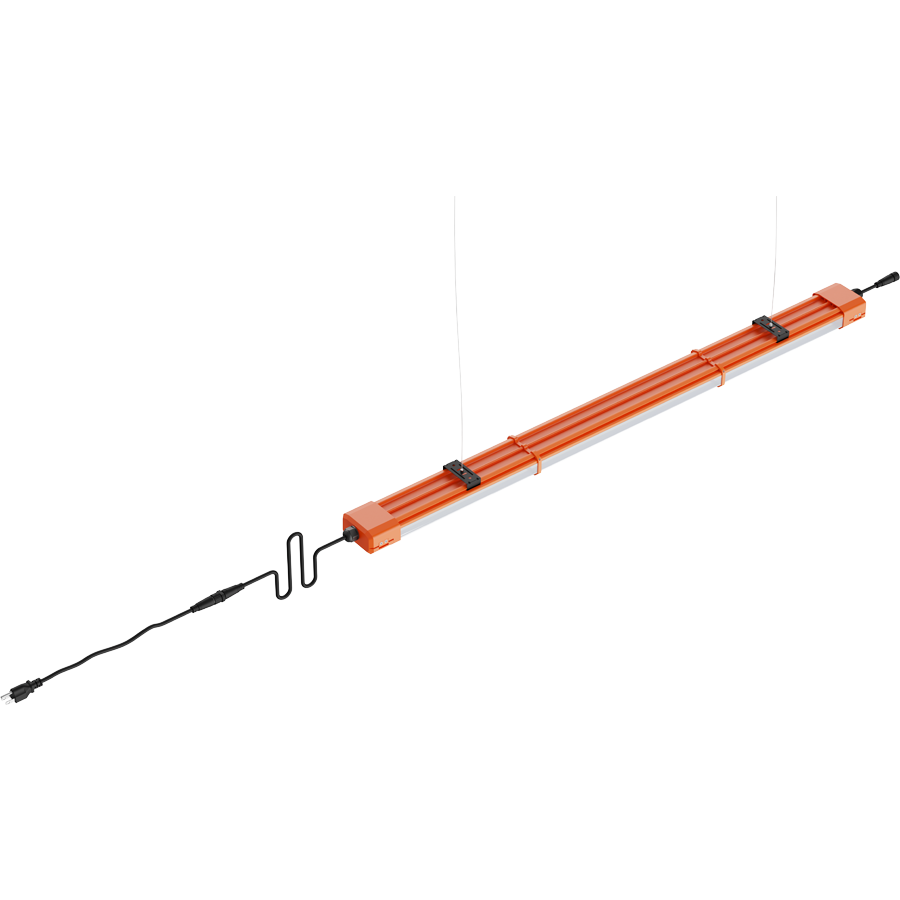

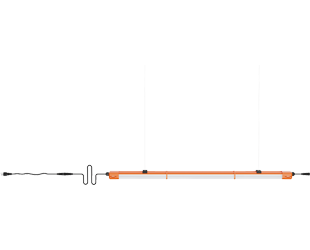

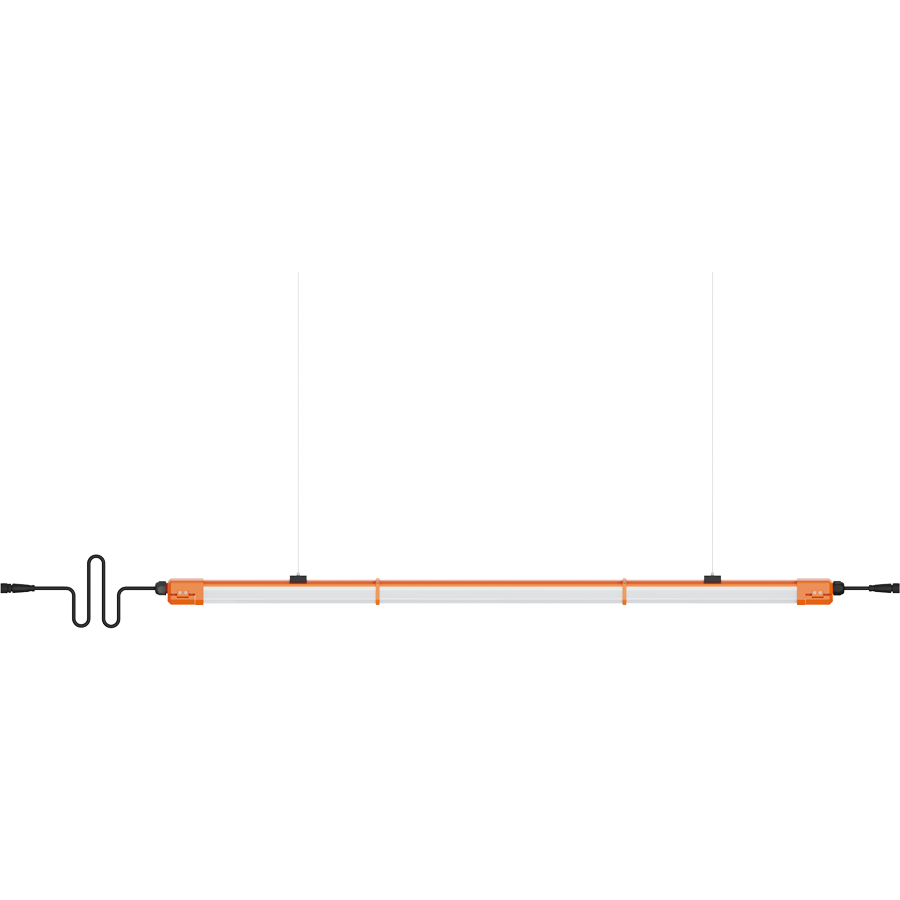

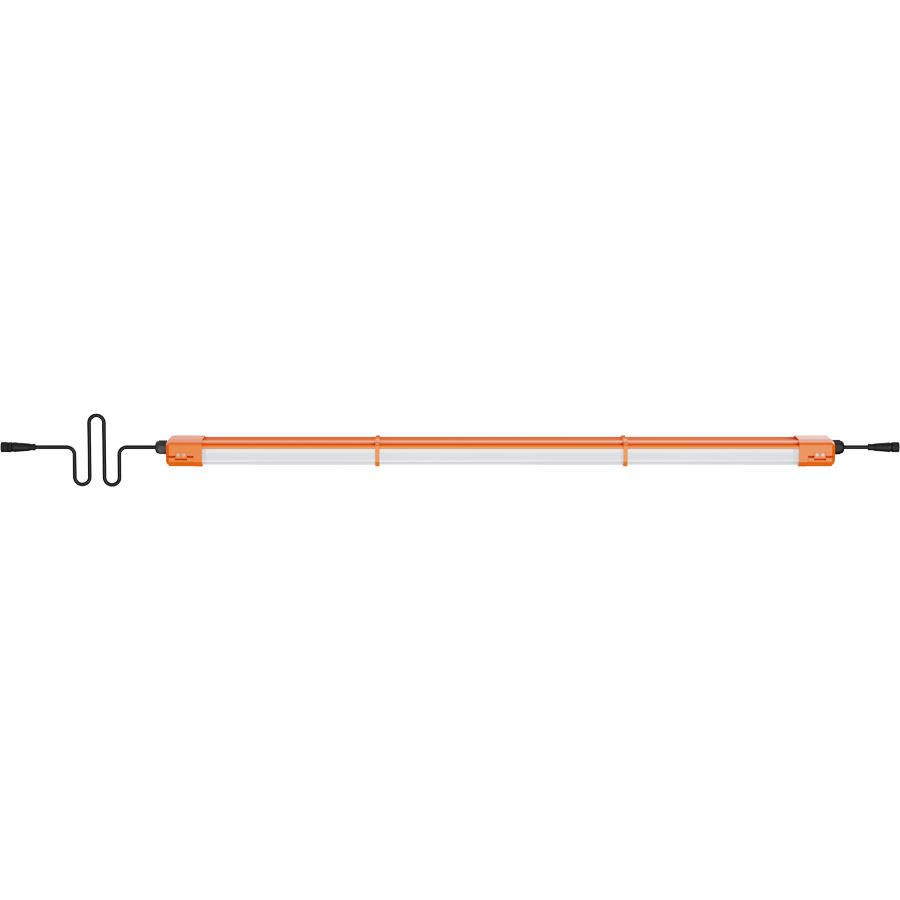

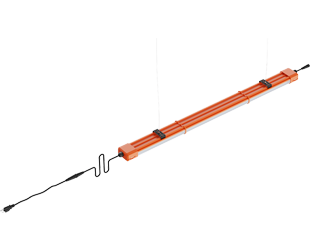

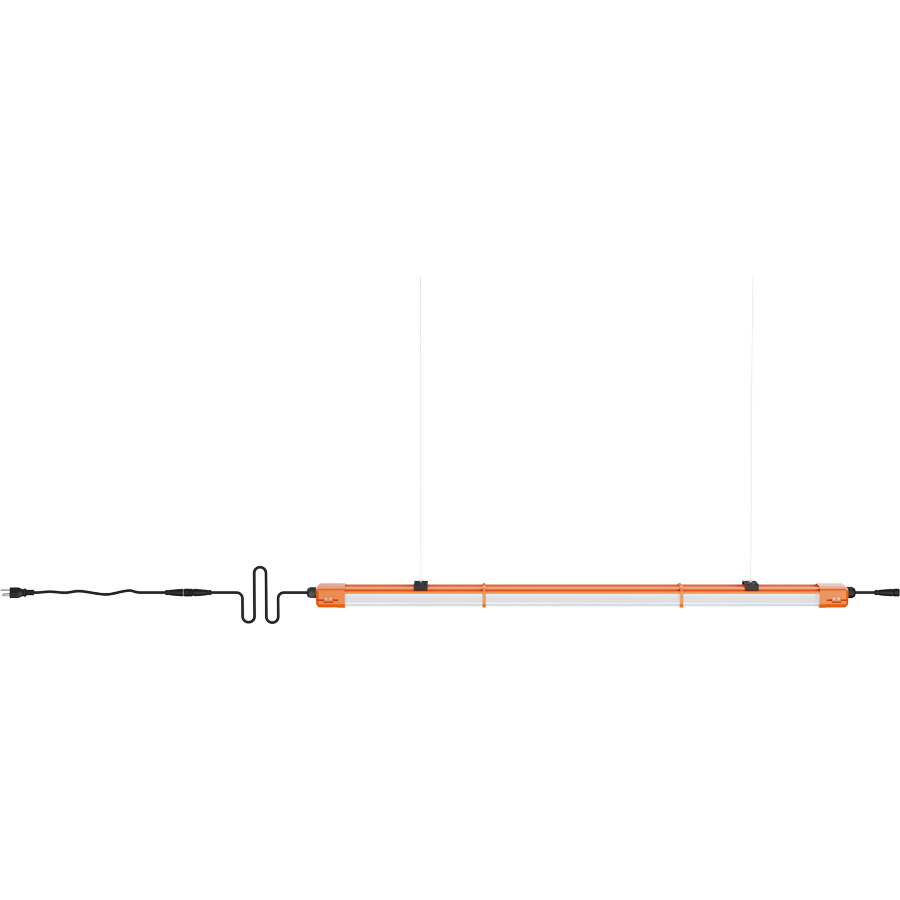

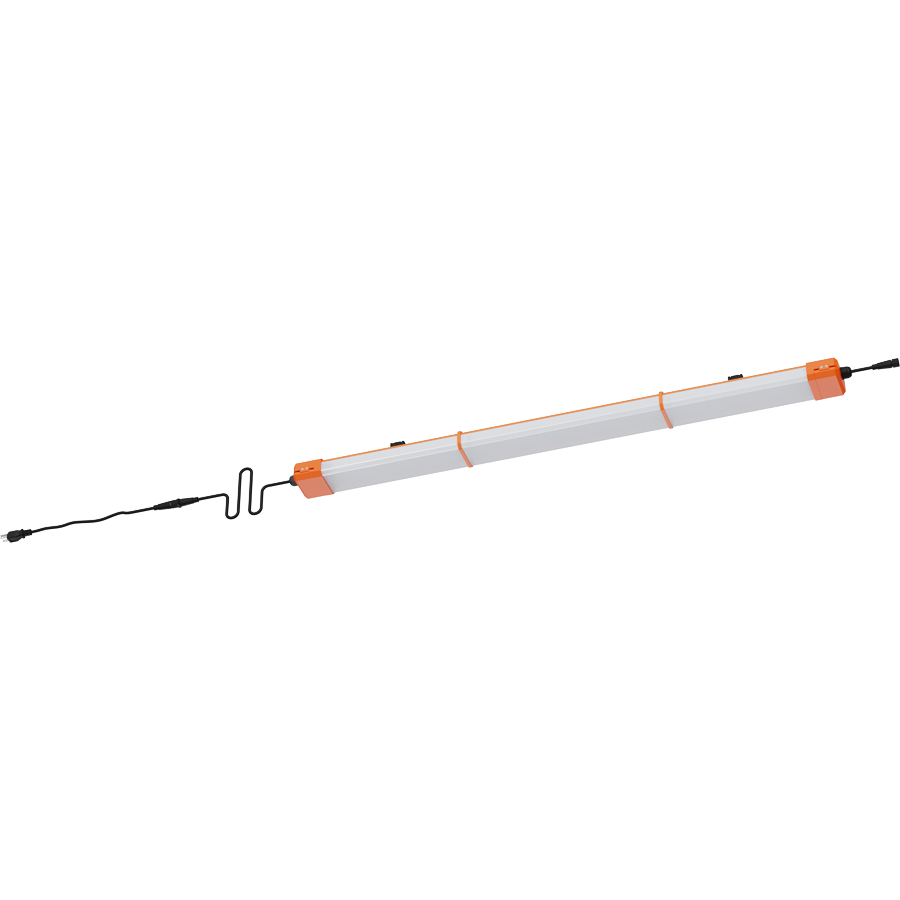

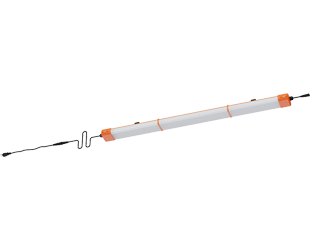

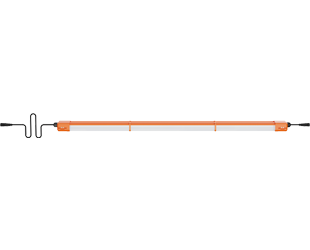

TEMPLIN-90
- Linear Temporary Lighting great for industrial applications
- Robust aluminum construction with frosted polycarbonate lens for superior light distribution
- Linkable SJOW cord with water tight quick connectors to daisy chain fixtures
- 120-277V Driver, 4kV Surge protection, and IP65 Rated
- Comes with 120V NEMA 5-15 Plug and Hard Wire cable in box
- 120-277V NEMA Plug and 25FT Extension cable sold separately
Performance
| Watts | 90W |
| Color Temp | 5000K |
| Lumens | 10,320 lm |
| Efficacy | 120.6 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 30,000 Hours |
| Type | Constant Current |
| 120V | 0.78A |
| 208V | 0.47A |
| 240V | 0.42A |
| 277V | 0.37A |
| Input Watts | 90W |

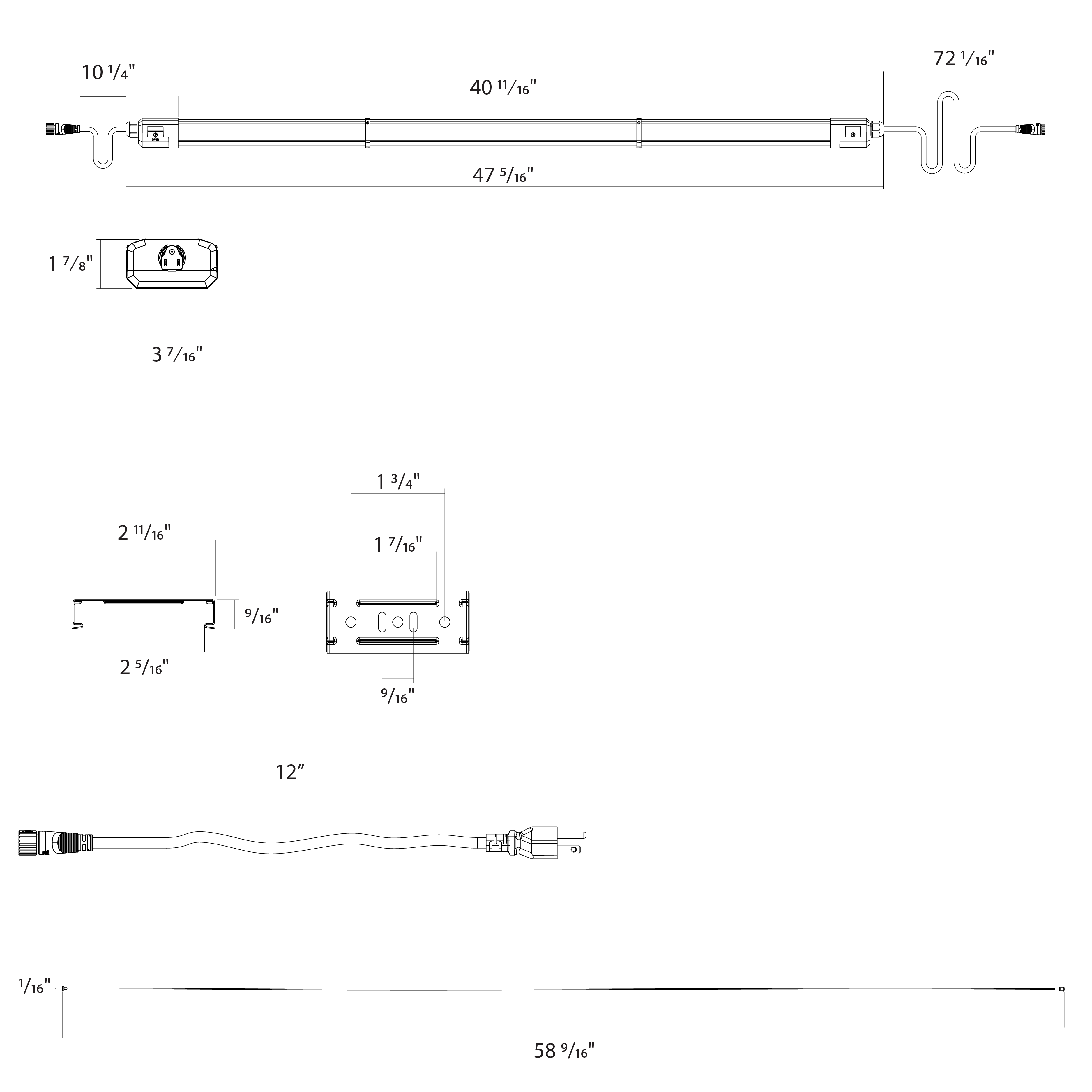

Dimensions
Weight: 3.3 lbs
Technical Specifications
Performance
Product Type
Linear Temp Light
Description
Linear temporary construction lighting that is linkable, high output and versitle enough for any construction project.
Wattage Equivalency
320W Metal Halide
Input Wattage
90W
Lumens
10,320lm
Efficacy
120.6lm/W
L70 Lifespan
30,000-hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current Class 1 Driver
THD
≤25%
Power Factor
≥0.9
Dimmable
No
Input Voltage
120-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
780mA
Input Current @ 208V (mA)
470mA
Input Current @ 240V (mA)
420mA
Input Current @ 277V (mA)
370mA
Operating Temperature
-20°F to 113°F (-30°C to 45°C)
Flicker
≤30%
Surge Protection
4 kV
LED Characteristics
Beam Angle
180°
Color Temperature
5000K
Color Accuracy (CRI)
>80 CRI
Color Consistency
<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Hardware
Comes with 1 ft 120V plug with M15 waterproof Connector, or 1 ft hard wire cable
Mounting
Can be suspended mounted or ceiling mounted using included suspension cables or wall mounting brackets
Plug
18/3 AWG SJOW Cable with M15 waterproof connector
Male port with 6 ft of cable
Female port with 10" of cable
Male port with 6 ft of cable
Female port with 10" of cable
Linkable
120V - 5 pcs, Max 600W
277V - 10 pcs, Max 1200W
277V - 10 pcs, Max 1200W
Construction
Length
4 ft
Housing Finish
Construction Orange
Lens
Frosted Polycarbonate +AT7:CE8 lens
Housing
Robust polycarbonate housing
Compliance
Listings
UL1598
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
3-Year Limited Warranty
The RAB 3-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty
