TIC/LCB
TIC/LCB
- Continuous band of flawless light output with no pixelated hot spots - even without a lens
- Field-cuttable every 1.97" for shorter runs with a max run of 32ft. Can be linked with connectors (sold separately)
- Easy installation to most surfaces by using pre-attached 3M® double-sided tape
- Tunable white 2700-6500K, requires Lightcloud Blue controller (sold separately)
- 96W Indoor or outdoor rated drivers available (sold separately)
- 50,000-hr rated life, Title 24 Compliant, and 5-year limited warranty
Performance
| Watts | 2.5 W/FTW |
| Color Temp | 2700-6500K |
| Lumens | 260lm/ft lm |
| Efficacy | |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Voltage |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 2.5 W/ftW |
Dimensions
Weight: 0.4 lbs
Technical Specifications
Lightcloud
Factory Reset
See LCBLV/TW on rablighting.com
Performance
Product Type
No-Pixel COB Tape Tunable White Damp Rated
Description

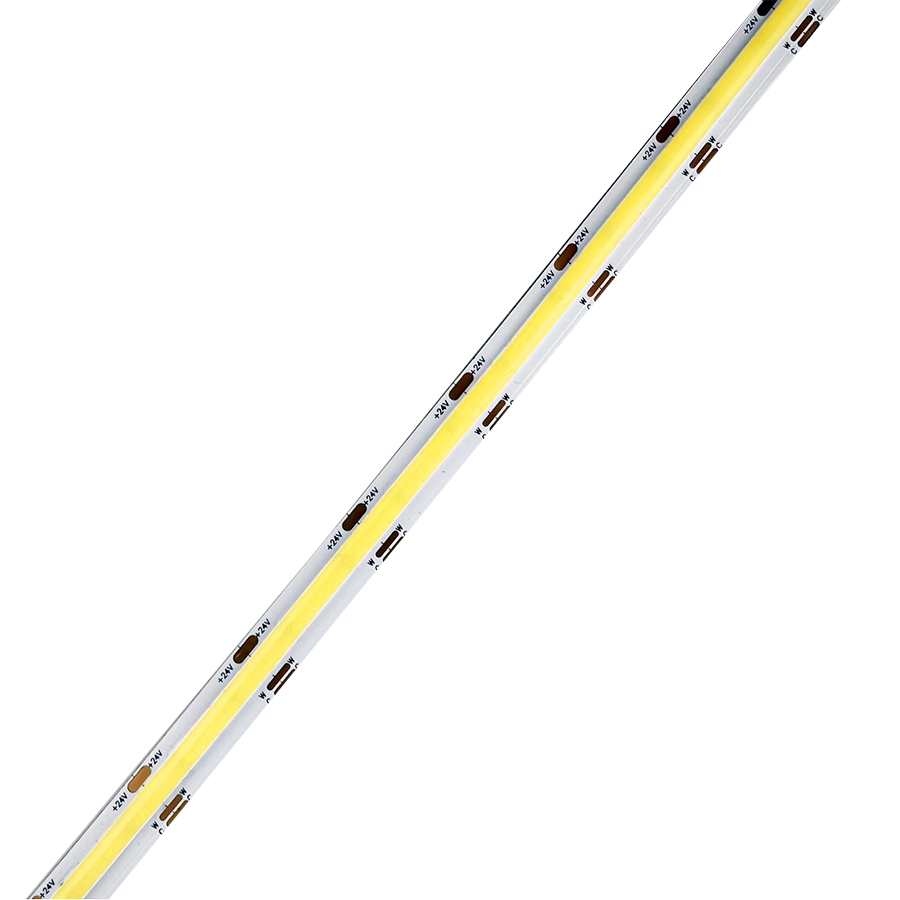

ARCTAPE is a flexible COB tape with a continuous band of flawless light output with no pixelated hot spots - even without a lens.
Input Wattage
2.5 W/ft
Lumens
215lm/ft (WW)
260lm/ft (CW)
260lm/ft (CW)
Lumens/Foot
260 lm/ft
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Dimmable
Yes, using Lightcloud Blue
This product will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
This product will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
Input Voltage
DC24V
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
LED Characteristics
Beam Angle
150°
Color Temperature
Default: 3000K
Tunable white 2700-6500K using Lightcloud Blue
Tunable white 2700-6500K using Lightcloud Blue
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 60
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Chip Density
185 chips/ft
Field Cuttable Increment
Cuttable every 1"
Installation
Mounting
Easy installation to most surfaces by using pre-attached 3M® double-sided tape
Construction
Length
16.4 ft
Max Run Length
16.4 ft
PCB Width
10mm
Light Source
COB LED White
Material Construction
Super-flexible bending, ultra-thin appearance, premium wall structure, & thick copper to ensure consistancy in voltage and brightness.
Light Effect
Continuous band light output with no pixelated hot spots
Spool Length
16.4 ft
Bendable
Top bend
Compliance
Listings
UL2108
Environment
Suitable for use indoors in dry and damp environments.
IP Rating
IP20
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Products
LCBLV/TW
Lightcloud Blue controller for tunable white tape light
Lightcloud Blue controller for tunable white tape light
Field Wiring Accessories
TIJ3
3-Pin Indoor Connector Kit
3-Pin Indoor Connector Kit
Mounting Accessories
TAP12
12mm Wide Aluminum Channel Kit
TAP16TL
Trimless 16mm Wide Aluminium Profile
TAP16C
Corner 16mm Wide Aluminum Profile
12mm Wide Aluminum Channel Kit
TAP16TL
Trimless 16mm Wide Aluminium Profile
TAP16C
Corner 16mm Wide Aluminum Profile
Compatible Drivers
TND-96
96W Indoor/Outdoor Driver ON/OFF
96W Indoor/Outdoor Driver ON/OFF
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
