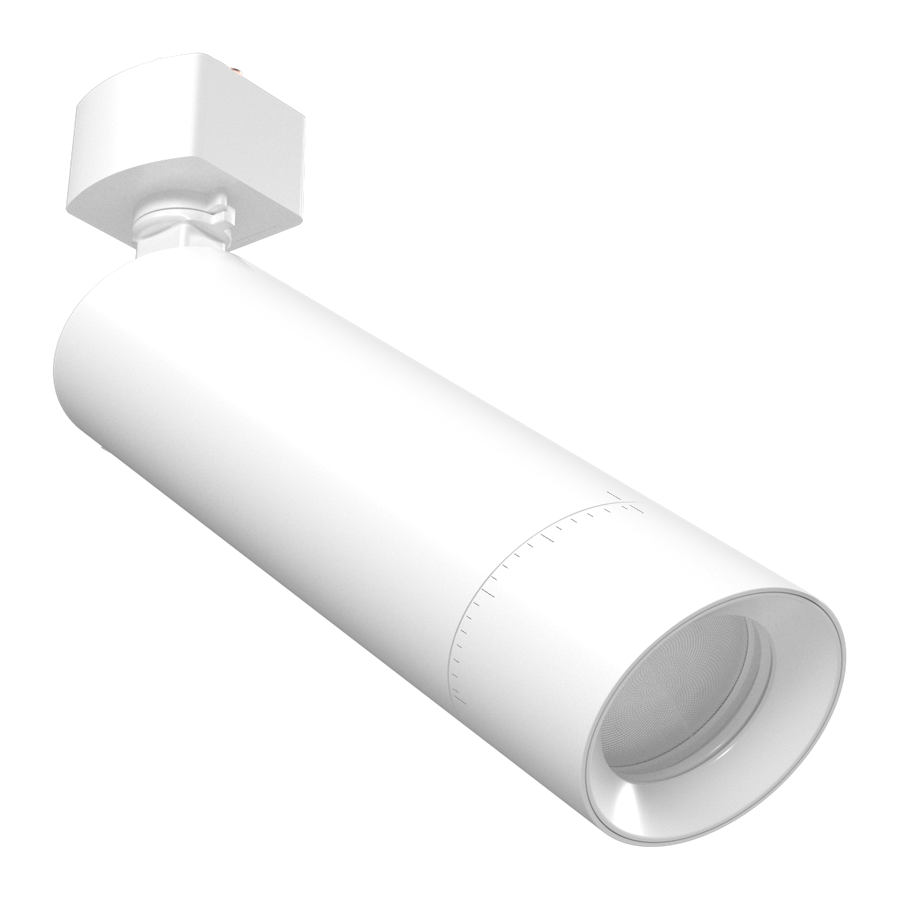

TK22R

10W 2700K/3000K/3500K/4000K/5000K

100,000-Hour LED lifespan

TRIAC dimming

120V

Dry location only

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	10/8/06W
Color Temp	2700K/3000K/3500K/4000K/5000K
Lumens	541-904 lm
Efficacy	80-108.1 lm/W
Color Accuracy	95-97 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.08A/0.07A/0.05A
208V	0.00A/0.00A/0.00A
240V	0.00A/0.00A/0.00A
277V	0.00A/0.00A/0.00A
Input Watts	5.7-9.7W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.9 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
10/8/6W (factory default 10W)
Color Temperature Selectable:
2700K, 3000K, 3500K, 4000K and 5000K (factory default 4000K)
Optical Field Adjustable: 24°-60° Adjustable

Compliance

UL Listed

Suitable for dry locations

IP Rating

IP20

LED Characteristics

LEDs

Long-life, high-efficacy, COB (Chip on Board) LEDs

Color Temperature

2700/3000/3500/4000/5000K CCT Adjustable

Electrical

Driver

Constant Current, Class 2, 120V, 60 Hz, 120V
10W: 0.10A
8W: 0.08A
6W: 0.06A

Dimming Driver

120V TRIAC Dimmers

Aux Power Supply

Dim to Off

Surge Protection

Ring Wave L-N:2.5 kV, LN-PE 2.5 kV

Construction

Cold Weather Starting

The minimum starting temperature is -4°F (-20°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Lens

Polycarbonate lens

Housing

Aluminum

Finish

Formulated for high durability and long-lasting color

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Installation

Mounting

H-Track Mount

Optical

Optics

15-55° Adjustable

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
