TNFCW

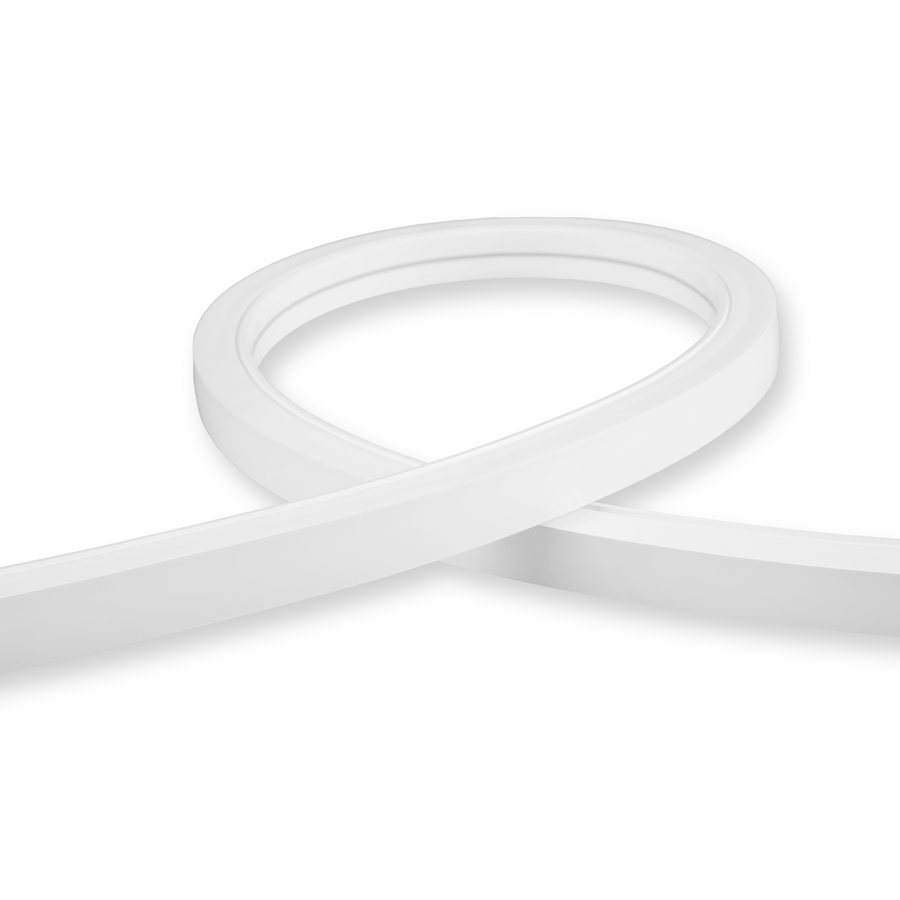

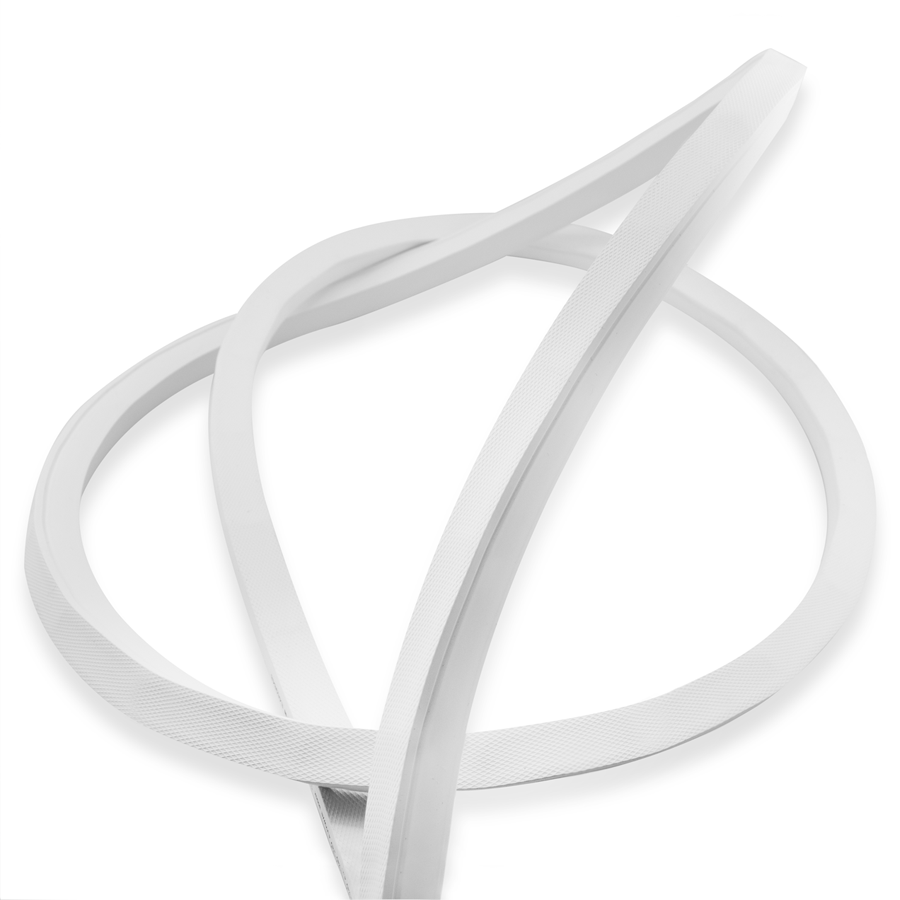

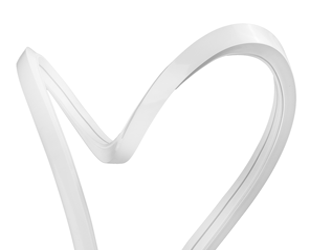

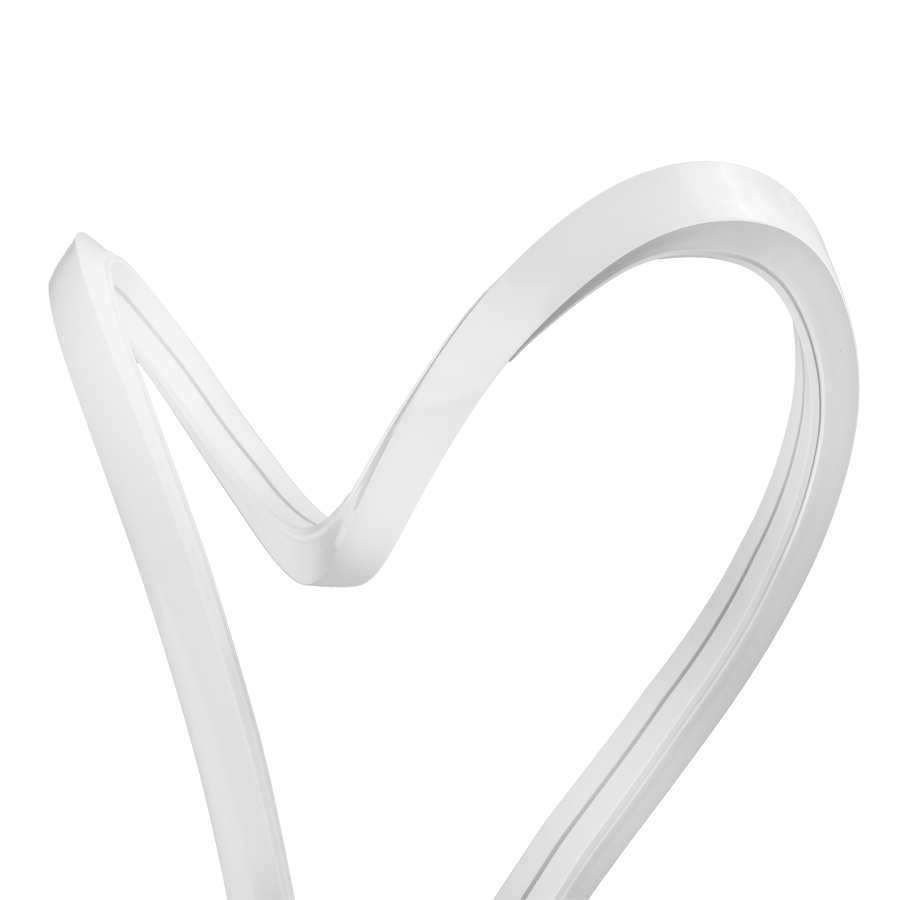

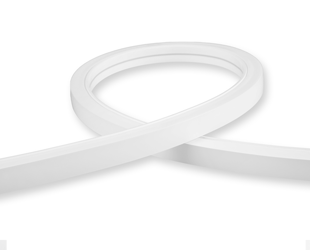

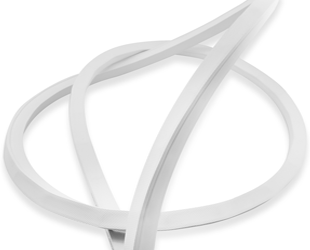

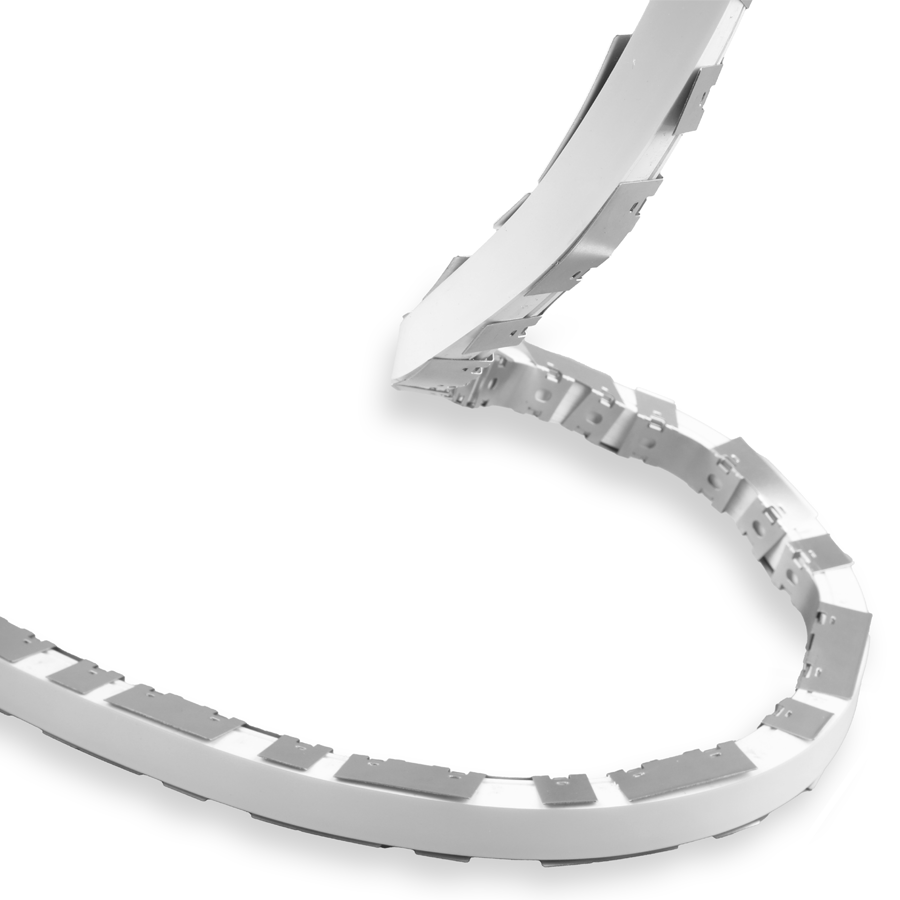

- Non-pixelated light diffusion enables the product to be freely bent in any direction, vertically or horizontally
- Field-cuttable for shorter runs with a max run of 32ft. Can be linked with connectors (sold separately)
- Easy installation with clips, fixed channel, and bendable channel (sold separately)
- Slim silicone construction with 6" minimum bending radius
- Indoor or outdoor rated drivers available (sold separately)
- 50,000-hr rated life, Title 24 Compliant, and 5-year limited warranty
Performance
| Watts | 4.27W/ftW |
| Color Temp | |
| Lumens | 218lm/ft lm |
| Efficacy | 51 |
| Color Accuracy | |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Voltage, Class 2 |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 4.27 W/ftW |
Technical Specifications
Performance
Description

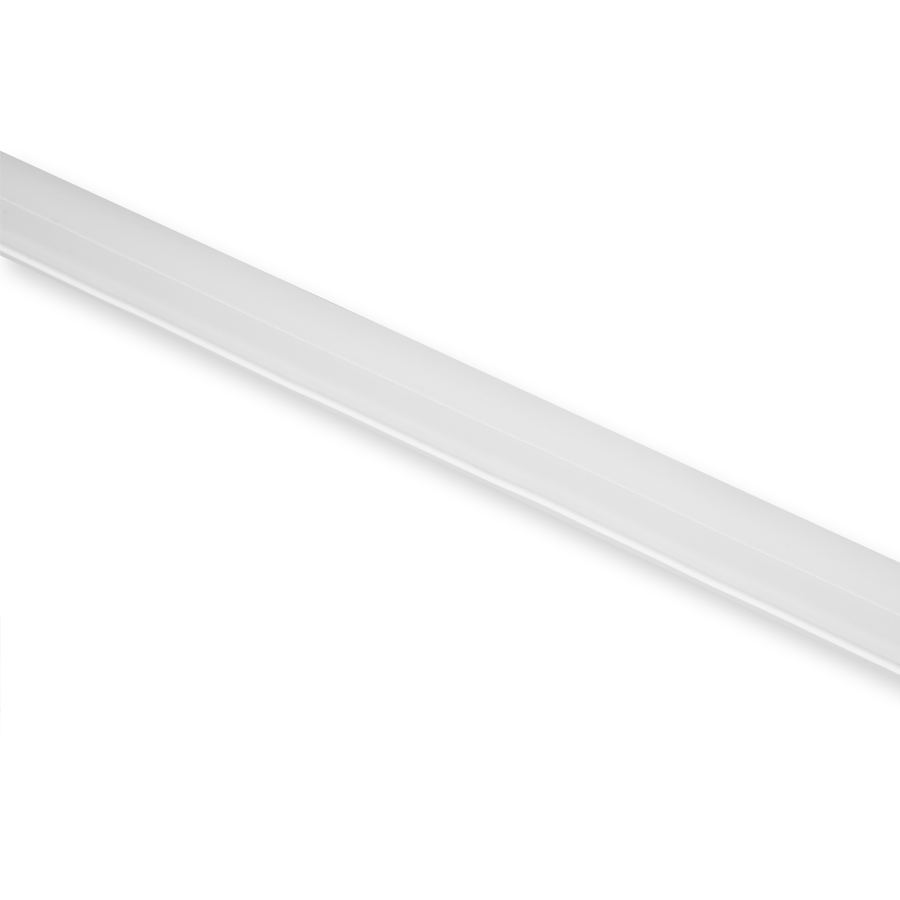

NEOFLEX recreates the look of classic neon with smooth, dot-free illumination. Engineered for indoor and outdoor applications, it is IP67 rated for long-lasting, reliable performance.
Input Wattage
4.27W/ft
Lumens/Foot
218 lm/ft
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Optical
Efficacy
51lm/W
Electrical
Input Voltage
DC24V
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Storage Temperature
-4°F (-20°C) to 140°F(60°C)
LED Characteristics
Beam Angle
120°
Color Temperature
5000K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 50
Color Consistency
<5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Field Cuttable Increment
Any
LED Segments per Reel
Any
Installation
Mounting
Bracket, aluminum profile, bendable bracket
Construction
Reel Length
16 ft
Max Run Length
16 ft
PCB Width
W16mm*H16mm
Light Source
COB LED White
Material Construction

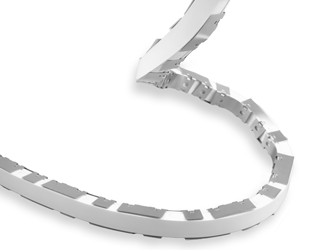

Dual-Flex design which can be used to create curved and complex irregular designs
Bendable
Dual bend
Light Effect
Soft linear lighting performance
Compliance
Listings
UL2108
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IP Rating
IP67
Certification Model Number
TNFCW
California Title 20 Compliant
No
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
NSF Listed
No
NEC Compliant
Suitable for use in closets when used in an enclosed extrusion based on NFPA 70, NEC section 410.16 (A)(1) and 410.16 (C)(1)
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
No
Other
Field Wiring Accessories
TPF2NF
2-pin Power Feed Kit
TSG
10ml Silicone Glue
2-pin Power Feed Kit
TSG
10ml Silicone Glue
Mounting Accessories
TB16
16mm wide mounting brackets
TBB16
16mm wide bendable aluminum channel
TAP16
16mm wide aluminum straight channel
TAP16TL
Trimless 16mm Wide Aluminium Profile
16mm wide mounting brackets
TBB16
16mm wide bendable aluminum channel
TAP16
16mm wide aluminum straight channel
TAP16TL
Trimless 16mm Wide Aluminium Profile
Compatible Drivers
TID-60
Indoor 60W driver
TID-96
Indoor 96W driver
TID/B
J-box for TID Drivers
TOD-96
Outdoor 96W driver
TOD-96x2
96Wx2 outdoor driver
TOD-96x3
96Wx3 outdoor driver
Indoor 60W driver
TID-96
Indoor 96W driver
TID/B
J-box for TID Drivers
TOD-96
Outdoor 96W driver
TOD-96x2
96Wx2 outdoor driver
TOD-96x3
96Wx3 outdoor driver
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
