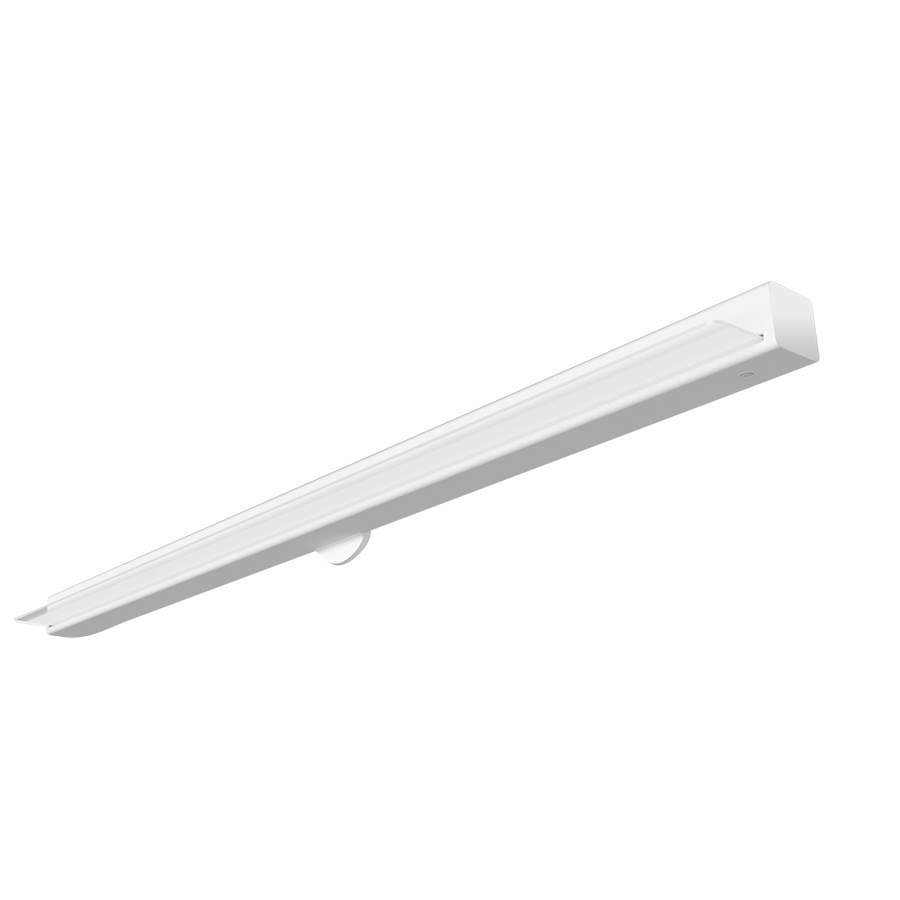

TOMO-4WM/PIR/E

Spec Sheet IES File Instructions Sell Sheet Folleto (Español) Family Spec Sheet Spec Sheet EZ Layout

TOMO-4WM/PIR/E

24W 3000/3500/4000/5000K

0-10V dimming

100,000-Hour LED lifespan

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	24/18/12W
Color Temp	3000/3500/4000/5000K
Lumens	1,617-3,285 lm
Efficacy	128.3-141.4 lm/W
Color Accuracy	82-84 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.20A/0.14A/0.10A
208V	0.13A/0.10A/0.07A
240V	0.10a/0.08A/0.06A
277V	0.09A/0.07A/0.05A
Input Watts	12.4-23.4W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 8.6 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
24W/18W/12W (factory default 18W)
Color temperature selectable by 5000K, 4000K, 3500K and 3000K (factory default: 4000K)

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Electrical

Driver

24W: Class 2, Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.20A, 208V: 0.13A, 240V: 0.10A, 277V: 0.09A
18W: Class 2, Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.14A, 208V: 0.10A, 240V: 0.08A, 277V: 0.07A
12W: Class 2, Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.10A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 5%.

THD

8.63% at 120V, 8.7% at 277V

Power Factor

97.4% at 120V, 92.9% at 277V

Surge Protection

1-2 kV

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

LED Characteristics

LEDs

Long-life, high-efficiency, surface-mount LEDs

Color Consistency

4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Maximum Ambient Temperature

Suitable for use in up to 122°F (50°C)

Housing

Cold Rolled Carbon Steel Sheets and Strip (SPCC)

Lens

Diffused Polymethyl Methacrylate (PMMA)

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Emergency Characteristics

Battery Backup

Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.

Battery Backup Light Loss Factor

24W: 0.73
18W: 0.97
12W: 1.43

Installation

Mounting

Wall mount

Other

Lighting Pattern

70% downlight, 30% uplight

Accessories

Fixture to fixture connector: TOMO CONNECT

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Sensor Settings

Operating Voltage

120-277V

Stand by Power

<0.5W

Load Ratings

200VA @ 120V capacitve (LED)
400VA @ 277V capacitive (LED)

Warming-up

30s

Sensor Principle

PIR detection

Detection Range
