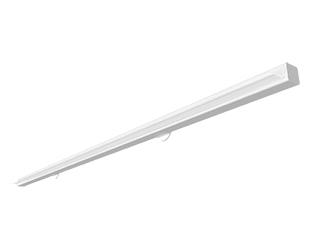

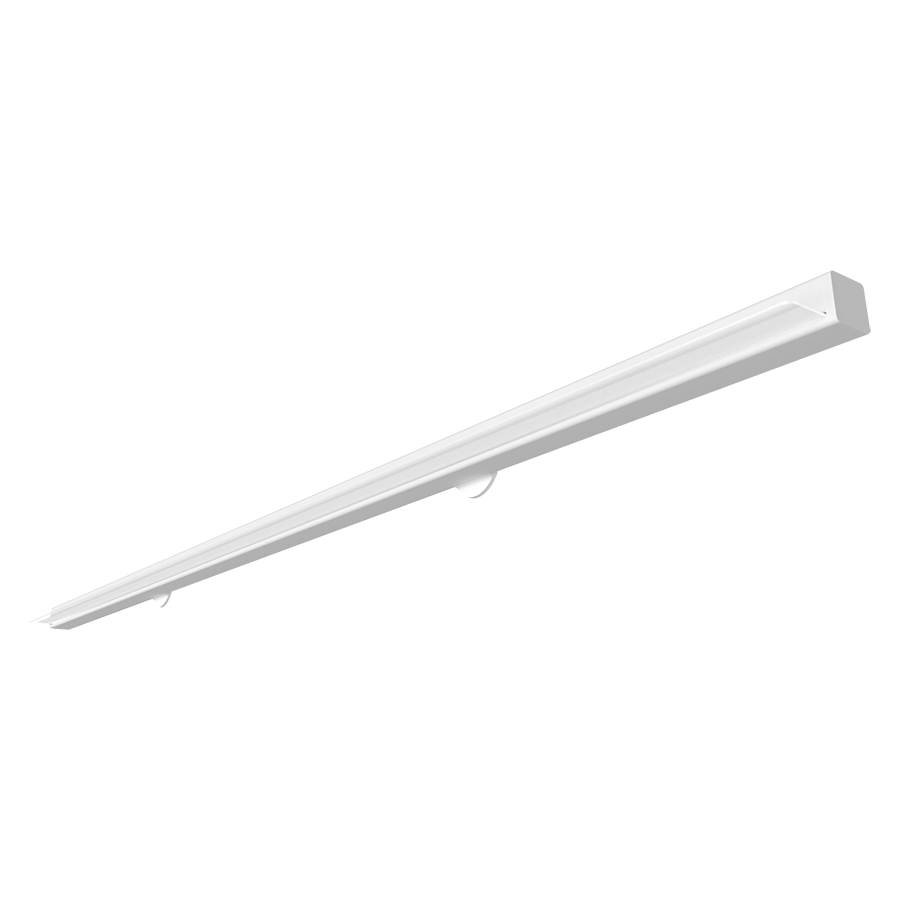

48W 3000/3500/4000/5000K
  • 0-10V dimming
  • 100,000-Hour LED lifespan
  • 5-Year, No-Compromise Warranty
View Technical Specs
Performance
Watts 48/36/24W
Color Temp 3000/3500/4000/5000K
Lumens 3,028-6,468 lm
Efficacy 121.3-142.5 lm/W
Color Accuracy 82-84 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.40A/0.30A/0.20A
208V 0.24A/0.18A/0.13A
240V 0.20A/0.15A/0.10A
277V 0.18A/0.13A/0.09A
Input Watts 23.3-48.3W
Dimensions
Link to Dimension Drawing

Weight: 17.0 lbs

Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
48W/36W/24W(factory default 36W)
Color temperature selectable by 5000K, 4000K, 3500K and 3000K (factory default: 4000K)
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-YPV9J4
Electrical
Driver
48W: Class 2, Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.40A, 208V: 0.24A, 240V: 0.20A, 277V: 0.18A
36W: Class 2, Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.30A, 208V: 0.18A, 240V: 0.15A, 277V: 0.13A
24W: Class 2, Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.20A, 208V: 0.13A, 240V: 0.10A, 277V: 0.09A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 5%.
THD
7.14% at 120V, 10.03% at 277V
Power Factor
99.6% at 120V, 96.9% at 277V
Surge Protection
1-2 kV
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Color Consistency
4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting
The minimum starting temperature is -4°F (-20°C)
Maximum Ambient Temperature
Suitable for use in up to 131°F (55°C)
Housing
Cold Rolled Carbon Steel Sheets and Strip (SPCC)
Lens
Diffused Polymethyl Methacrylate (PMMA)
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Wall mount
Other
Lighting Pattern
70% downlight, 30% uplight
Accessories
Fixture to fixture connector: TOMO CONNECT
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
