TOS/LCB
TOS/LCB

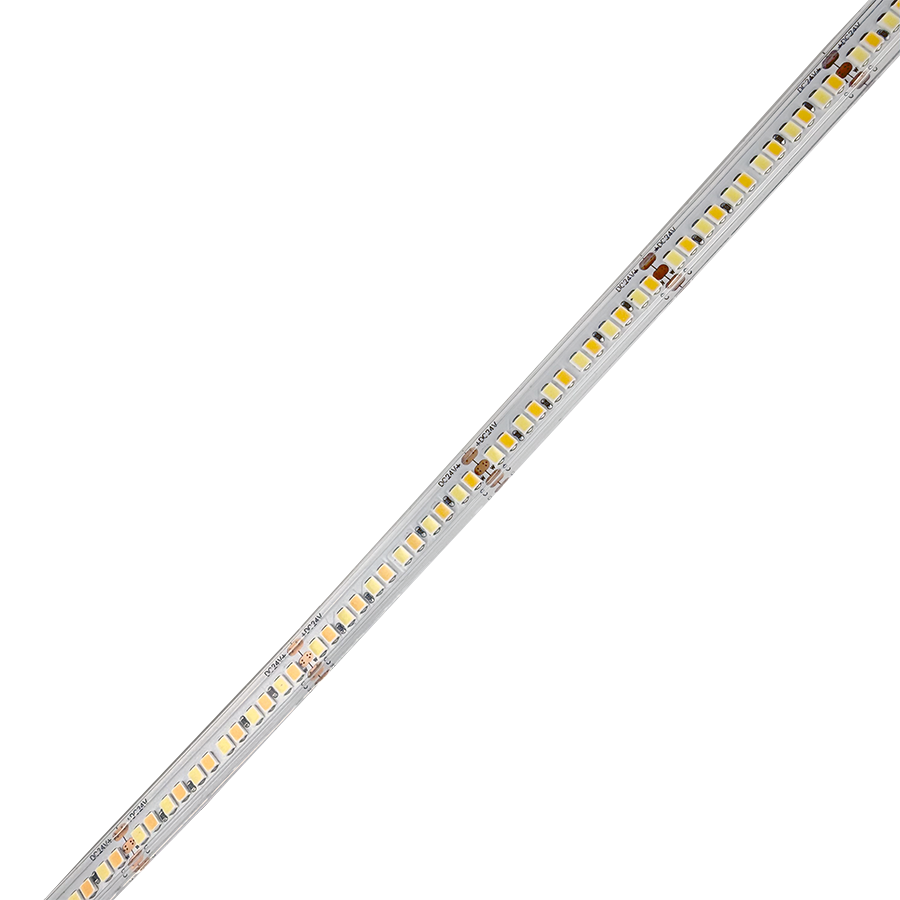

- Flexible, wet location LED tape provides energy-efficient lighting for both indoor and outdoor applications.
- Field-cuttable every 2.19" for shorter runs with a max run of 32ft. Can be linked with connectors (sold separately))
- Easy installation to most surfaces by using pre-attached 3M® double-sided tape
- Tunable white 2700-6500K, requires Lightcloud Blue controller (sold separately)
- 96W Indoor or outdoor rated drivers available (sold separately)
- 50,000-hr rated life, Title 24 Compliant, and 5-year limited warranty
Performance
| Watts | 2.5 W/ftW |
| Color Temp | 2700-6500K |
| Lumens | 240lm/ft lm |
| Efficacy | |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Voltage |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 2.5 W/ftW |
Dimensions
Weight: 0.9 lbs
Technical Specifications
Lightcloud
Spacing Criteria
See LCBLV/TW on rablighting.com
Factory Reset
See LCBLV/TW on rablighting.com
Performance
Product Type
Wet Location SMD Tape Tunable White
Description
FLEXTAPE is a bendable, outdoor LED tape that provides energy-efficient lighting for both indoor and outdoor applications.
Input Wattage
2.5 W/ft
Lumens
215lm/ft (WW)
240lm/ft (CW)
240lm/ft (CW)
Lumens/Foot
240 lm/ft
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Dimmable
Yes, using Lightcloud Blue
This product will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
This product will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
Input Voltage
DC24V
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
LED Characteristics
Beam Angle
120°
Color Temperature
Default: 3000K
Tunable white 2700-6500K using Lightcloud Blue
Tunable white 2700-6500K using Lightcloud Blue
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 60
Certification Model Number
<3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Chip Density
73 chips/ft
Field Cuttable Increment
Cuttable every 2"
Installation
Mounting
Easy installation to most surfaces by using pre-attached 3M® double-sided tape
Construction
Length
16.4 ft
Max Run Length
32.8 ft
PCB Width
10mm
Light Source
SMD 2835
Material Construction
Weather-reisistant, high-grade silicone cover with super-flexible bending .
Light Effect
Soft linear lighting performance
Spool Length
16.4 ft
Bendable
Top bend
Compliance
Listings
UL2108
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IP Rating
IP67
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Products
LCBLV/TW
Lightcloud Blue controller for tunable white tape light
Lightcloud Blue controller for tunable white tape light
Field Wiring Accessories
TPF3
3-Pin Power Feed Kit
TPFE3
3-Pin Power Extender w/M12 Connector
TOJ3
3-Pin PCB Outdoor Connector Kit
3-Pin Power Feed Kit
TPFE3
3-Pin Power Extender w/M12 Connector
TOJ3
3-Pin PCB Outdoor Connector Kit
Mounting Accessories
TSC3
Silicone Mounting Clips, Waterproof
TAP15
15.5mm Wide Aluminum Channel Kit
TAP16TL
Trimless 16mm Wide Aluminium Profile
TSG
Silicone Glue
Silicone Mounting Clips, Waterproof
TAP15
15.5mm Wide Aluminum Channel Kit
TAP16TL
Trimless 16mm Wide Aluminium Profile
TSG
Silicone Glue
Compatible Drivers
TND-96
96W Indoor/Outdoor Driver ON/OFF
96W Indoor/Outdoor Driver ON/OFF
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
