TOSN
TOSN

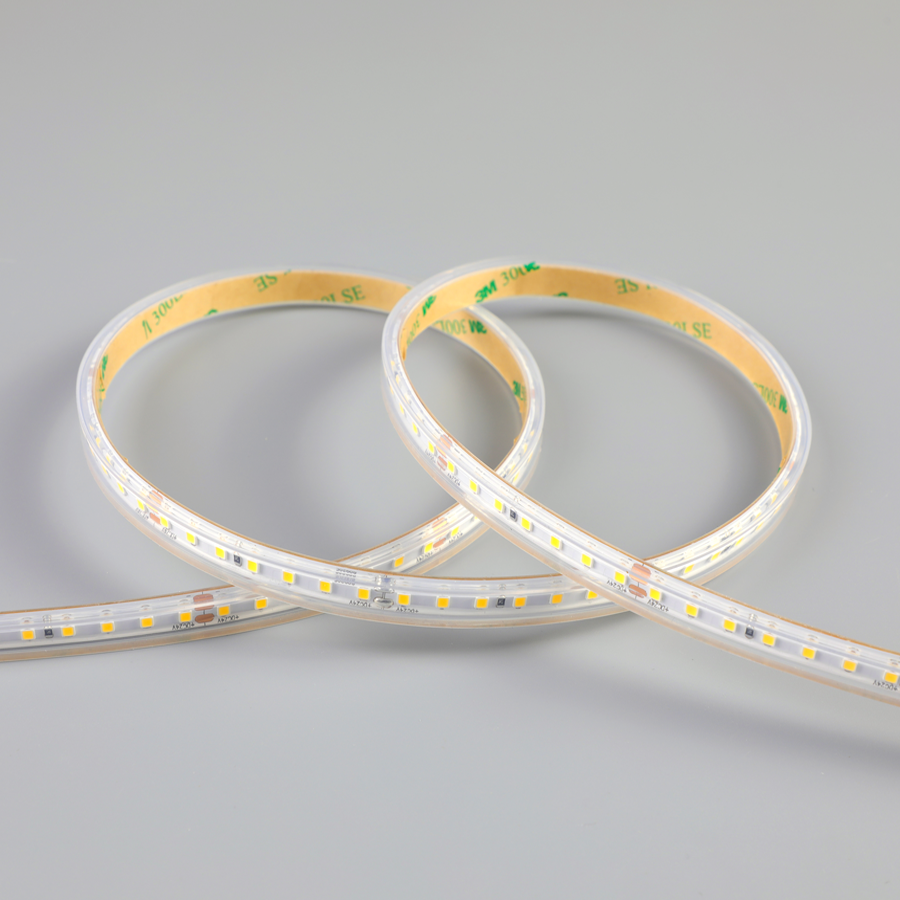

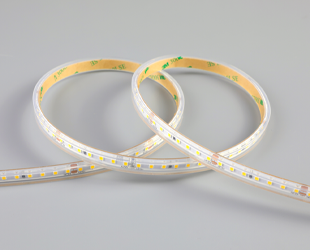

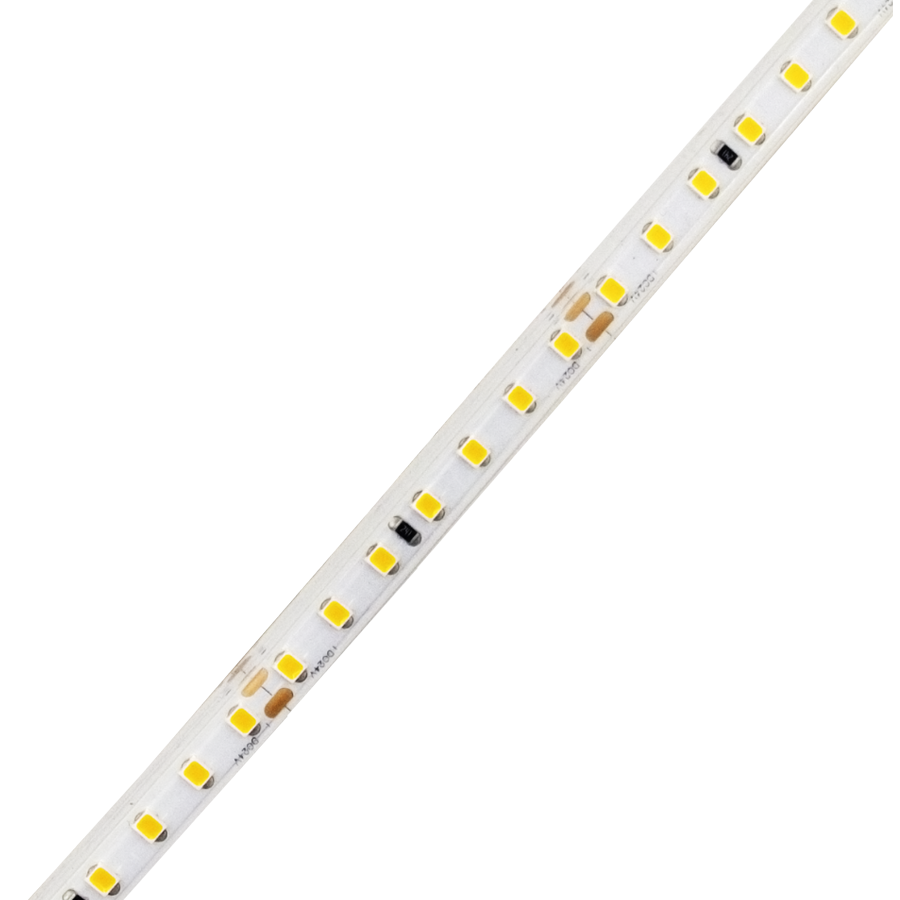

- Flexible, wet location LED tape provides energy-efficient lighting for both indoor and outdoor applications.
- Easy installation to most surfaces by using pre-attached 3M® double-sided tape
- Available in Static White 2700K, 3000K, 4000K
- 60W & 96W indoor or outdoor rated drivers available (sold separately)
- 60W & 96W indoor or outdoor rated drivers available (sold separately)
Performance
| Watts | 2.5 W/FTW |
| Color Temp | |
| Lumens | 275lm/ft lm |
| Efficacy | 110 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Voltage |
| 120V | 19 mA/LED |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 2.5 W/ftW |

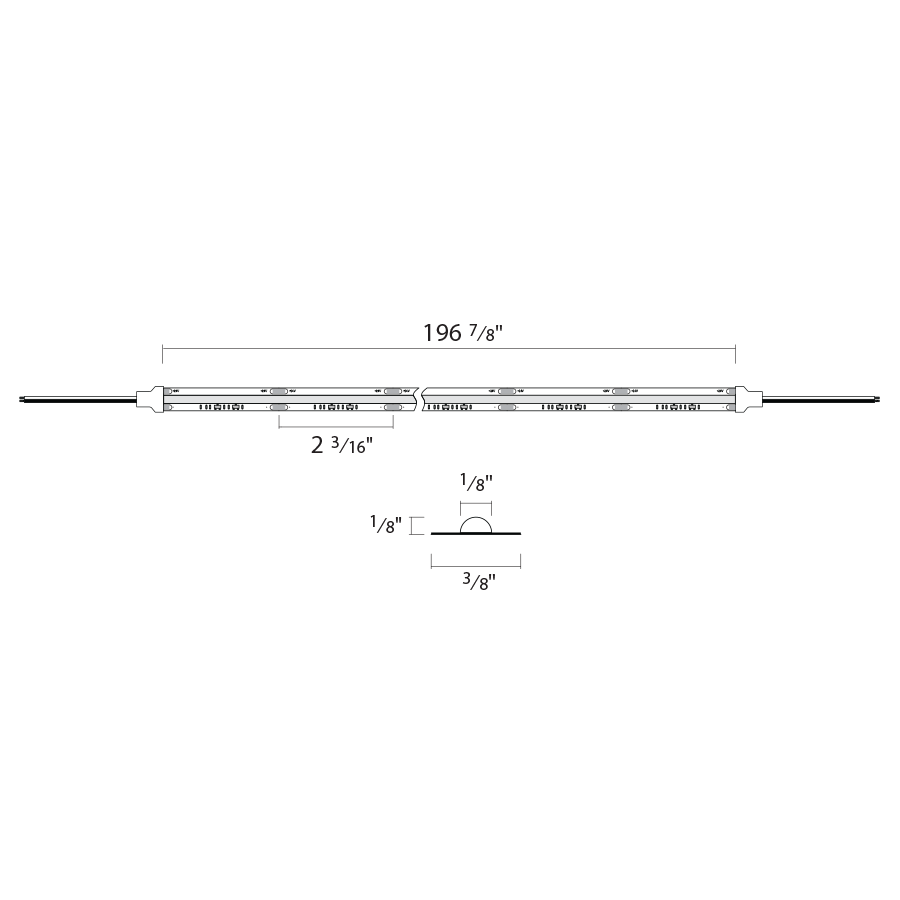

Dimensions
Weight: 0.9 lbs
Technical Specifications
Performance
Product Type
32 ft Wet location SMD tape static white
Description
FLEXTAPE is a bendable, outdoor LED tape that provides energy-efficient lighting for both indoor and outdoor applicatio
Input Wattage
2.5W/ft
Lumens
250lm/ft±10%
Efficacy
110lm/W±10%
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Dimmable
PWM Dimming Signal, dimmable down to .1% with LED Driver (sold separately)
Input Voltage
DC24V
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
Storage Temperature
-4°F (-20°C) to 140°F(60°C)
LED Characteristics
Beam Angle
120°
Color Temperature
4000K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 50
Certification Model Number
<5-step (2700K & 5000K);<7-step (3000/3500/4000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Field Cuttable Increment
Cuttable every 2"
LED Segments per Reel
180
Installation
Mounting
Easy installation to most surfaces by using pre-attached 3M® double-sided tape
Construction

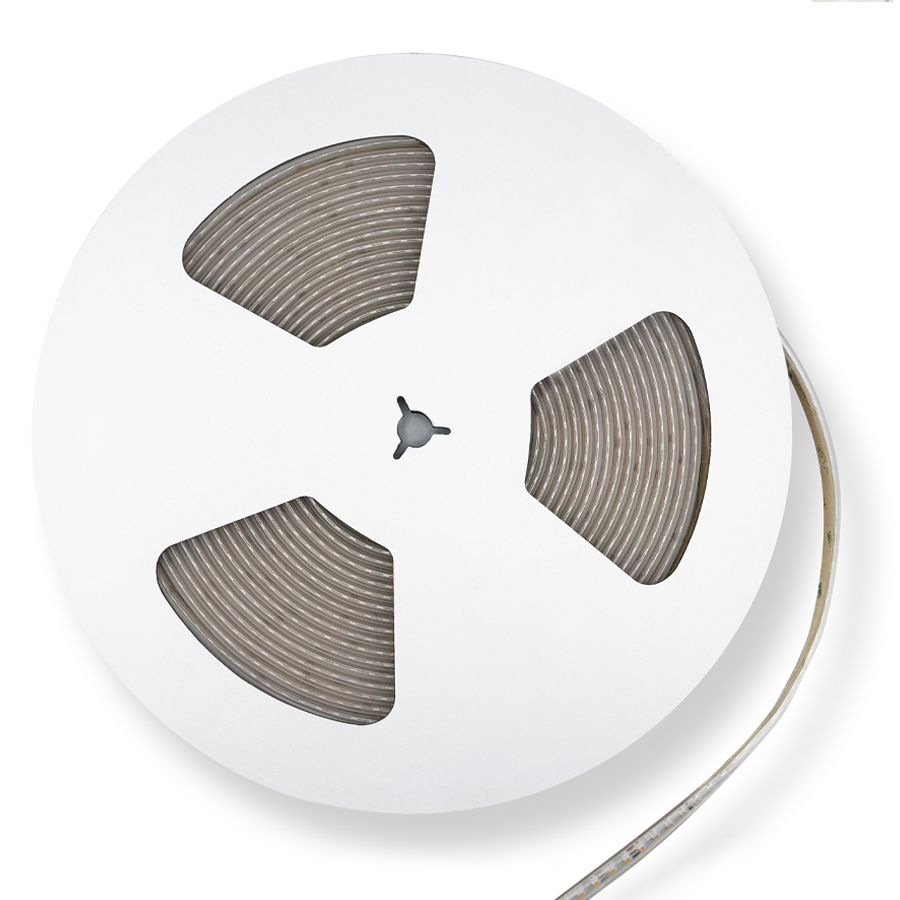

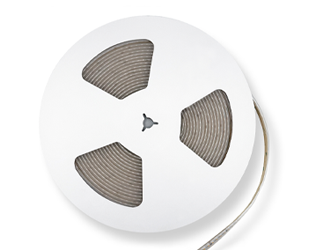

Reel Length
32 ft
Max Run Length
32 ft
Length
32.8 ft
Light Source
SMD LED White
Material Construction
Weather-reisistant, high-grade silicone cover with super-flexible bending .
Light Effect
Soft linear lighting performance
Compliance
Listings
UL2108
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IP Rating
IP67
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets when used in an enclosed extrusion based on NFPA 70, NEC section 410.16 (A)(1) and 410.16 (C)(1)
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Field Wiring Accessories
TOJ2
2-Pin outdoor connector kit
TPF2
2-Pin power feed kit
2-Pin outdoor connector kit
TPF2
2-Pin power feed kit
Mounting Accessories
TAP12
12mm wide aluminum channel kits
TSC2
Silicone mounting clips
12mm wide aluminum channel kits
TSC2
Silicone mounting clips
Compatible Drivers
TID-60
Indoor 60W driver
TID-96
Indoor 96W driver
TOD-96
Outdoor 96W driver
Indoor 60W driver
TID-96
Indoor 96W driver
TOD-96
Outdoor 96W driver
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
