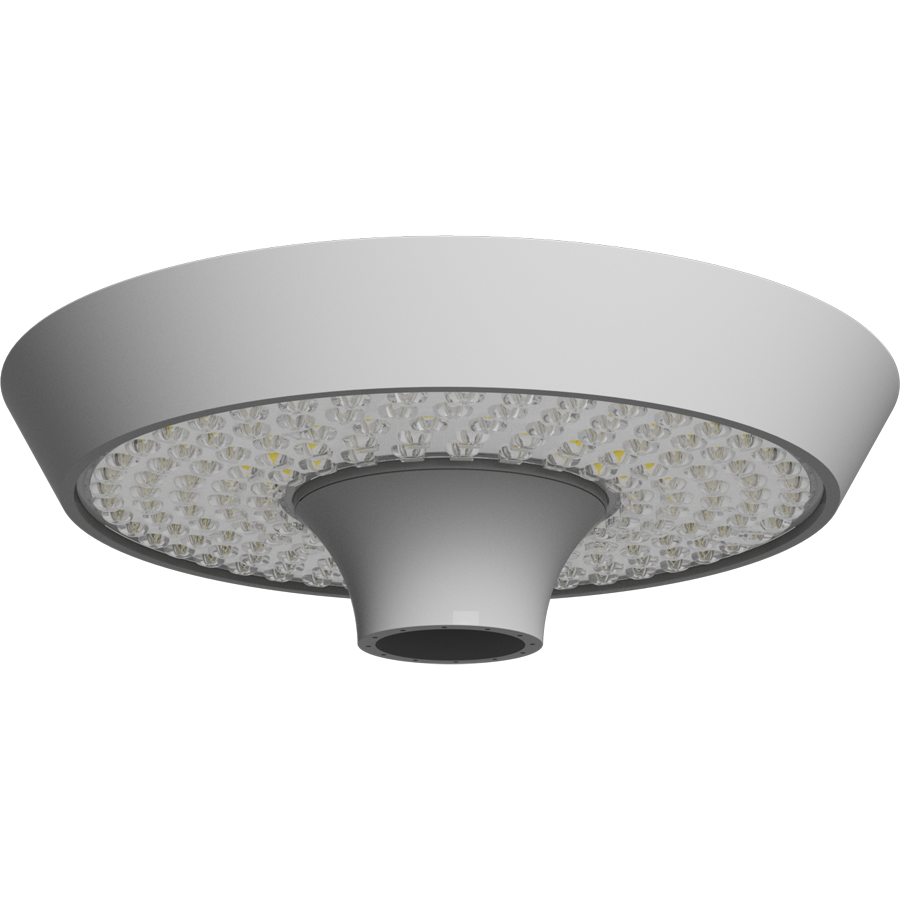

VALRG/480
113W 3000K/4000K/5000K
- 100,000-hour LED lifespan
- 3G vibration rating per ANSI C136.31
- 10 kV Surge Protection
- IP65 Rated
- 10-Year, Limited Warranty
Performance
| Watts | 113/100/65/40W |
| Color Temp | 3000K/4000K/5000K |
| Lumens | 6868-19155 lm |
| Efficacy | 156-176.8 lm/W |
| Color Accuracy | 82-84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 41-116W |
Dimensions
Weight: 9.3 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
RoHS
Mercury and UV free. RoHS-compliant components.
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Electrical
Aux Power Supply
Yes
Dim to Off
Yes
Surge Protection
10 kV
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Effective Projected Area (EPA)
EPA = 0.2
Housing
Die-cast aluminum
Reflector
Polyethylene Terephthalate (PET)
Lens
Clear polycarbonate lens
Gaskets
High-temperature silicone
Vibration Rating
3G vibration rating per ANSI C136.31
Shape
Round
Finish
Formulated for high durability and long-lasting color
Optical
IES Classification
The Type V distribution produces light in a wide and uniform 360° pattern that is perfect for large outdoor areas such as parking lots, corporate parks and retail settings
Installation
Mounting
Non-Adjustable universal pole mount
Other
10-Year Limited Warranty
The RAB 10-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
