VAN3F32MS
VAN3F32MS
- Precision die cast aluminum housing with durable polyester powder coating
- Cutoff and standard Wall packs
- LED "on guard" indicator
- Can be wired in parallel
- Adjustable mini sensor with 180 detection patterned
- Sensor color matches fixture
- Vandal proof fixtures offer sensor controlled compact fluorescent up to 96 Watts
Performance
| Watts | 32W |
| Color Temp | |
| Lumens | 2,400 lm |
| Efficacy | 75 lm/W |
| Color Accuracy | |
| L70 Lifespan |
| Type | Electronic QT |
| 120V | 0.31A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 32W |

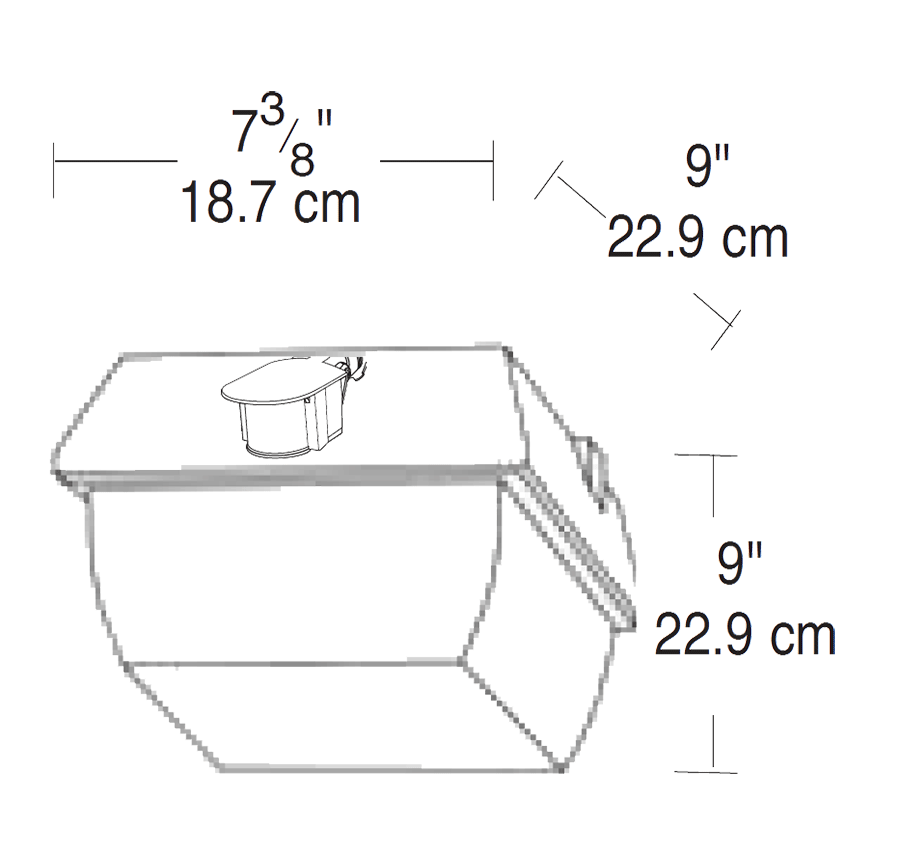

Dimensions
Weight: 7.0 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Electrical
Voltage
120V AC 60Hz
Surge Protection
Withstands up to 3000 volts
Manual Override
Double flip wall switch logic prevents activation by short power outages. Resets after 8 hours. No extra wiring needed.
Sensor Settings
Time Adjustment
5 seconds to 15 minutes CFL lamps have longer life if Time Adjustment is set to > 7 minutes
Quick Test Time
5 seconds test time for fast installation. Works day or night.
"No Hands" Auto Testing
Auto mode starts after 4 minutes of testing. No adjustment needed.
Sensor Case Construction
Precision molded Lexan
Photocontrol
Deactivates lights during daylight
Construction
Vandal Resistant Lens
Hard lens resists vandalism
Built for Severe Conditions
Double weatherproofing for long life
Min Start Temp
0°
Ballast Minimum Starting Temperature
0°F
LED Characteristics
LED Detection Indicator
Glows red day and night for "on-guard" deterrence
