VBE/RGB

Spec Sheet Family Spec Sheet Spec Sheet

VBE/RGB

View Technical Specs

View Price & Availability

Performance

Watts	50W
Color Temp	Default: 3000K<br> Adjustable using the Lightcloud Blue mobile app<br> Tunable White 2200 - 6500K
Lumens	45 lm/lamp lm
Efficacy
Color Accuracy
L70 Lifespan	50,000 Hours

Type
120V
208V
240V
277V
Input Watts

Dimensions

Weight: 7.4 lbs

Technical Specifications

Lightcloud

Lightcloud Blue

Lightcloud Blue is a Bluetooth® Mesh lighting control system designed for fast setup and flexibility. Install quickly with no gateways, hubs, or additional control wiring. Start with a single device and easily scale to control entire buildings.
Learn more at rablighting.com/lcb.

DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)

Gateway Required

Yes, connects to Lightcloud Gateway and other Lightcloud devices

Communication Protocol

Bluetooth Mesh

SmartShift

SmartShift-ready to easily configure lighting profiles to automatically adjust brightness and color temperature for circadian and aesthetic needs.

Light Shows

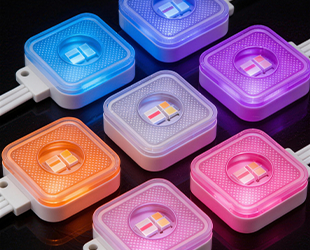

Dynamic RGB light shows with customizable effects and color sequences using the Lightcloud Blue mobile app.

Remote Control Access

Yes, with additional devices, sold separately.

Range

Up to 200 feet clear line of sight; Up to 120 feet around corners

Spacing Criteria

Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network. Building materials such as brick, concrete, and steel construction or heavy vegetation, bushes or trees may require additional Lightcloud Blue devices to extend around an obstruction.

Performance

Product Type

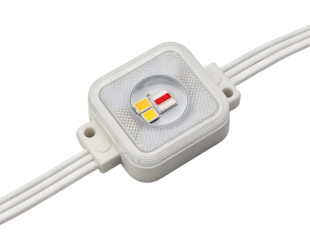

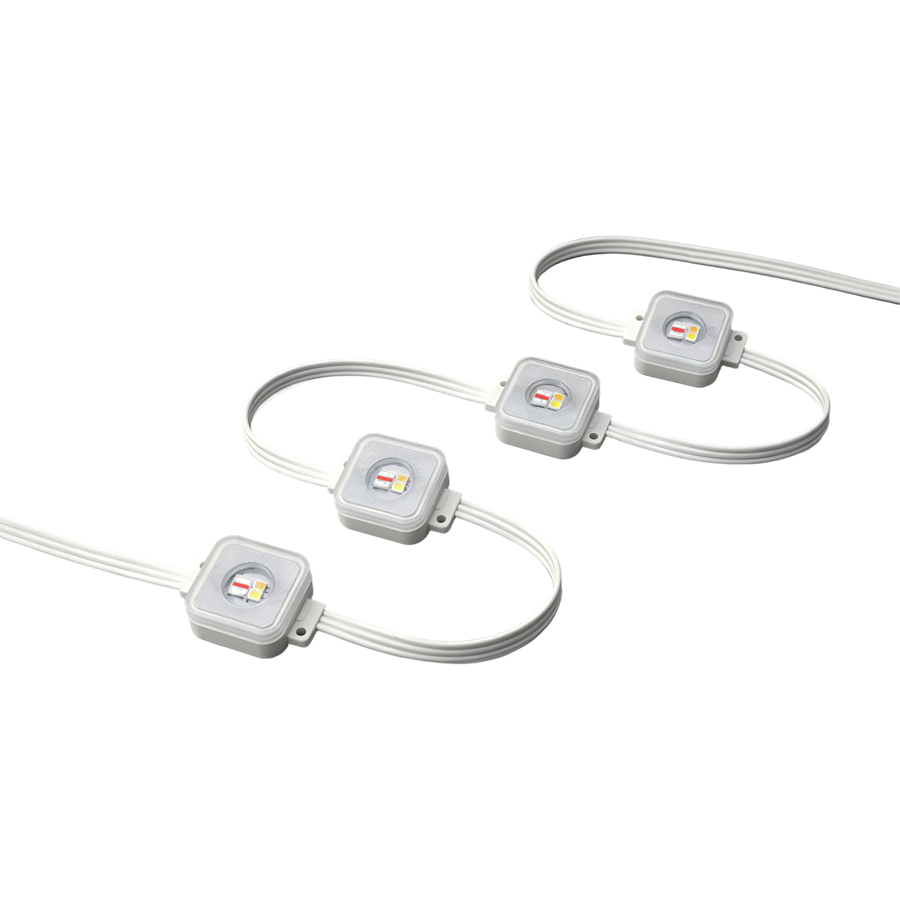

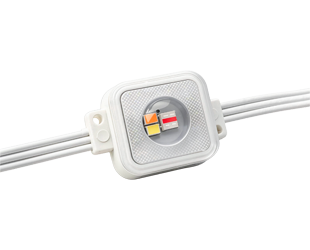

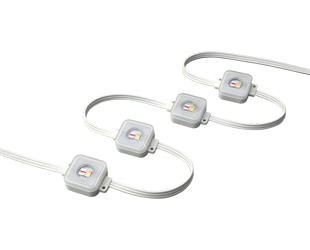

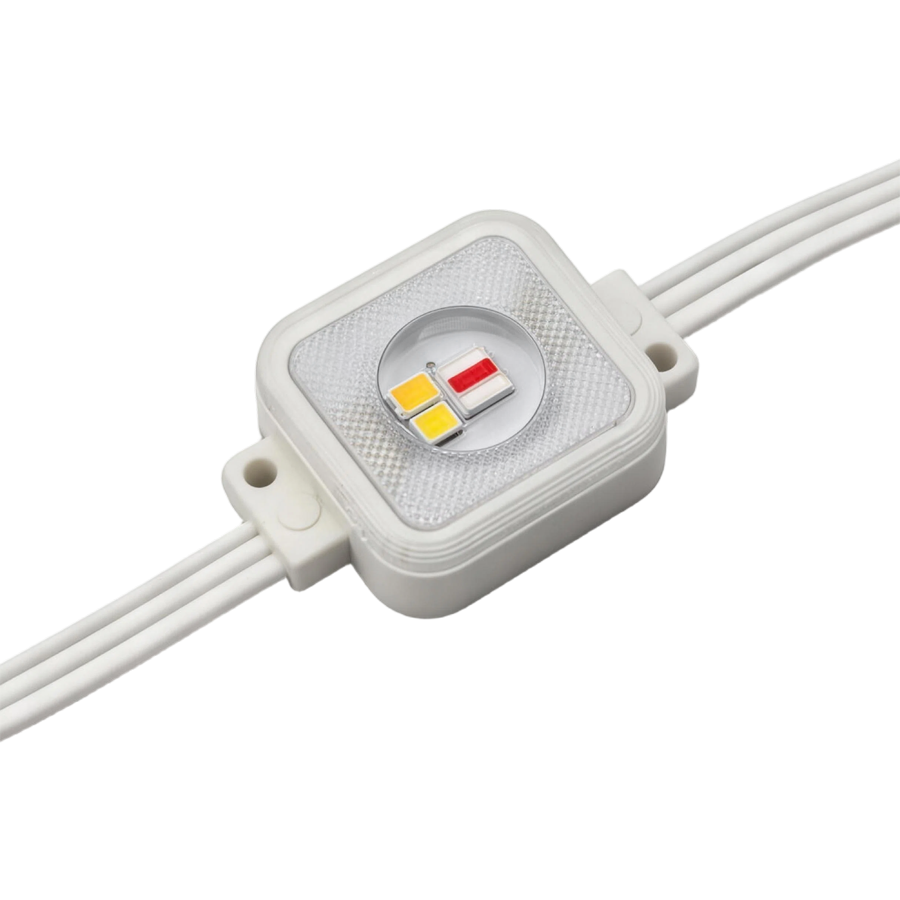

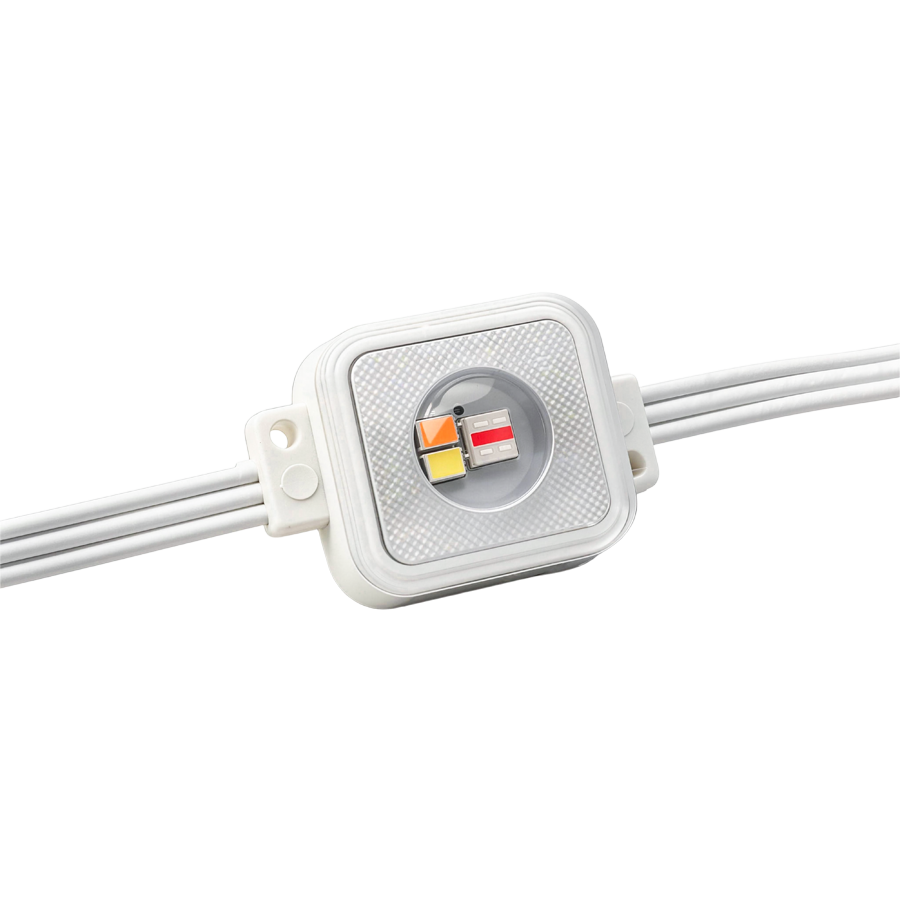

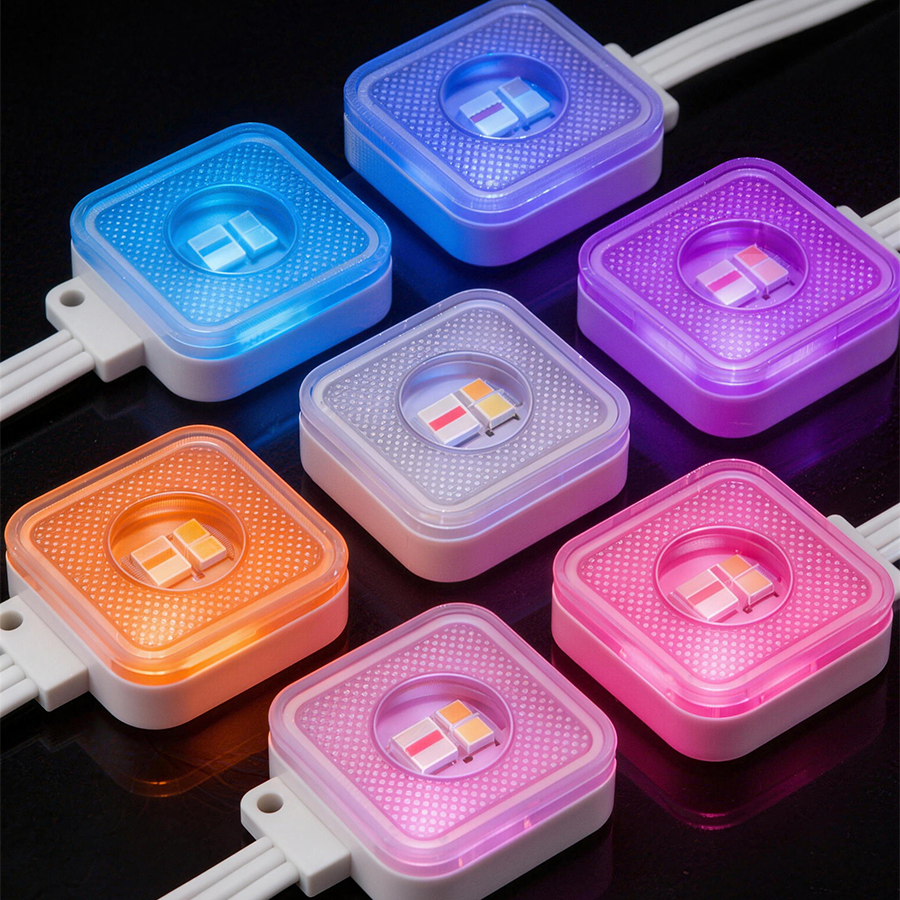

RGBW Permanent Eaves Lights

Input Wattage

50W

Lumens (Nominal)

45lm/lamp

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Construction

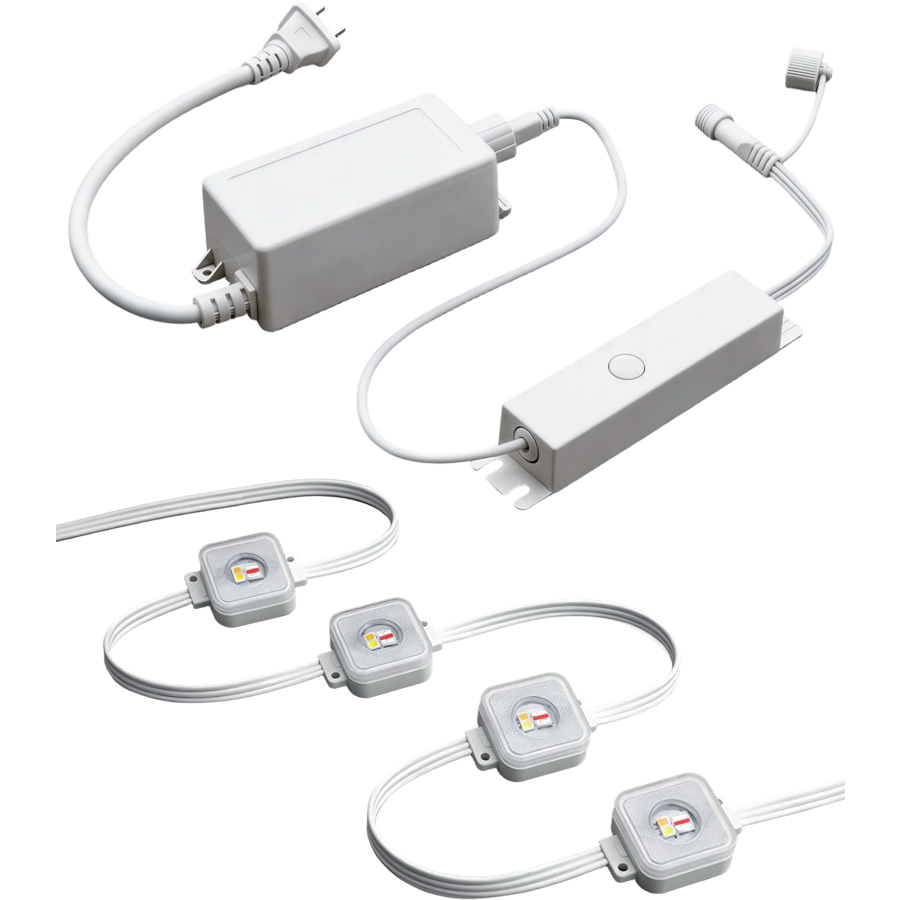

Package Includes

(1) 150 ft RGBW String
(1) 8 ft jumper cable
(1) Controller
(1) Power supply w/plug
(5) Adhesive pads
(1) Glue
(230) 2.5mm Self-tapping screws
(2) 3M Double-Sided Tape
(9) 3mm Self-tappling screws
(4) 3mm Captive screws
(6) Cable clips
(1) End cap

Length

150 ft (6-25 ft strings)

Lamps per String

108

Max Run Length

200 ft

Finish

White

Enclosure Material

PVC

Lens Finish

Clear

Electrical

Driver

Constant Voltage, Class 2 120-277V 50/60 Hz; 120V: 850mA; 208V: 540mA; 240V: 485mA; 277V: 435mA

Power Factor

0.5

Dimmable

Yes, using Lightcloud Blue. This product will not operate properly when connected to a standard (incandescent) dimmer or dimming control.

Input Voltage

120-277V

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

LED Characteristics

Beam Angle

120°

Color Temperature

Default: 3000K
Adjustable using the Lightcloud Blue mobile app
Tunable White 2200 - 6500K

Color Tuning

Yes, 16+ million colors using the Lightcloud Blue mobile app

Color Accuracy (CRI)

>80 CRI

Natural Spectrum

R9 Value

High color performance with R9 greater than 0

Color Consistency

<6-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Installation

Mounting

Plugs into a standard 15A 125V duplex receptacle

Base Type

NEMA 1-15, 2-prong plug

Replaceable Bulbs

Linkable

Yes, using EXT-VBE/RGB, sold separately

Cable

UL2464 22AWG 3/C

Compliance

ETL Listed

This product has been tested by Intertek and found in compliance with accepted national standards.

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IP Rating

IP65

Certification Model Number

VBE/RGB

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Accessories

EXT-VBE/RGB
25 ft Extension for VIBE

3-Year Limited Warranty

The RAB 3-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty
