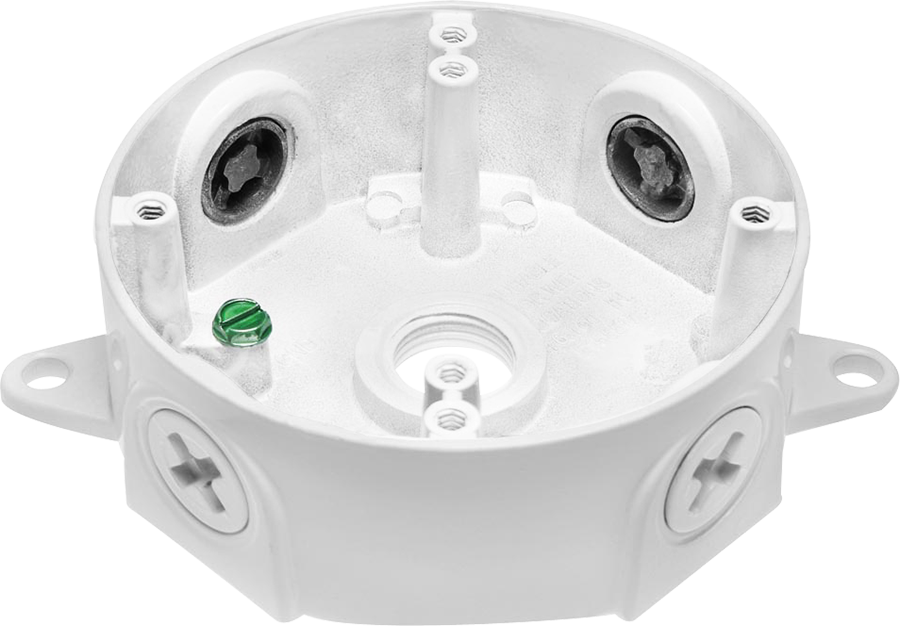

• Stainless steel screws
  • Green hex slotted washer head ground screw in pre-tapped hole
  • Heavy die cast aluminum
  • Close-up plugs allow Phillips or slotted screwdrivers for easy installation
View Technical Specs
Dimensions
Link to Dimension Drawing

Weight: 0.5 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Construction
Box Material
Precision die cast aluminum
Gaskets
1/8" thick closed cell EPDM Foam for long lasting seal that won't crumple or break
Screws
10-24 Stainless steel Round Head Phillips/slotted
Ground Screw
# 10-24 Green corrosion protected steel slotted washer head screw provided in pre-tapped hole
Box Diameter
4"
Side Hole Thread Size
1/2"
Weight Capacity
If the fixture you are using weighs more than 20 lbs, use an XC cover plate instead of a C103.
