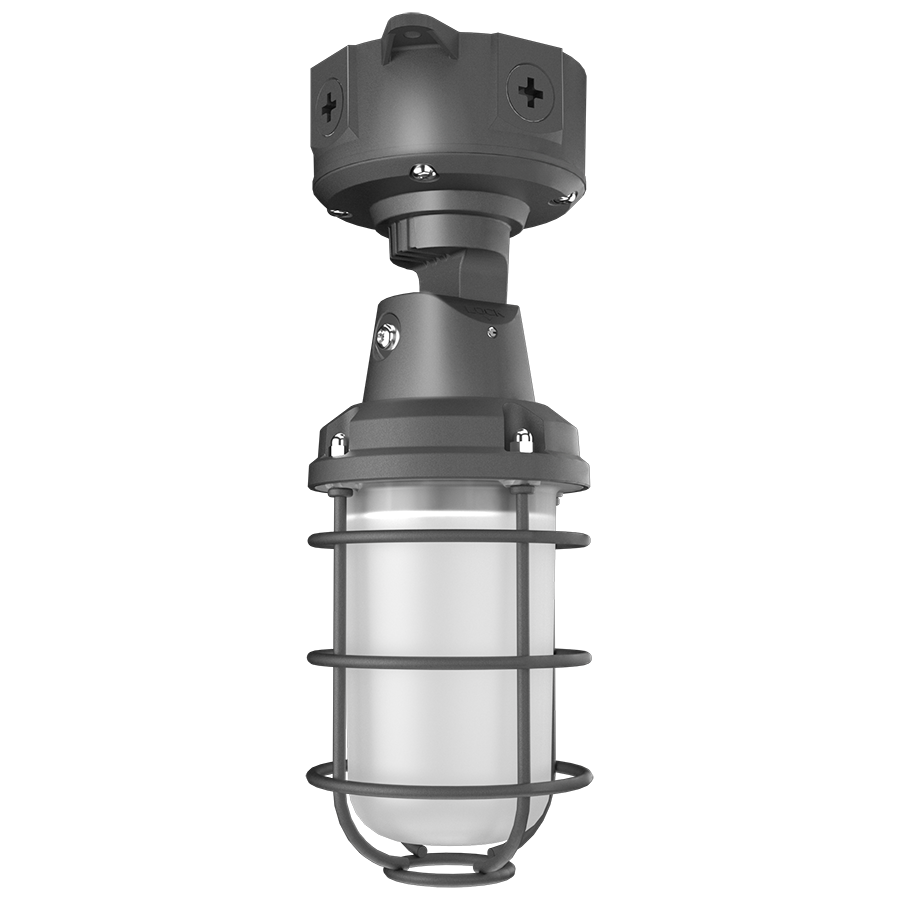

VXRGB26

26W RGB/5000K

100,000-Hour LED lifespan

IP65 rating protects against dust and water

5-Year, Limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	26/18/12W
Color Temp	RGB/5000K
Lumens	268-3,151 lm
Efficacy	22.6-121.5 lm/W
Color Accuracy	84 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.23A/0.15A/0.10A
208V	0.14A/0.09A/0.06A
240V	0.12A/0.08A/0.06A
277V	0.11A/0.07A/0.05A
Input Watts	9-27.9W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 2.8 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
26/18/12W(factory default 18W)
Color Temperature Selectable:
RGB and 5000K (factory default 5000K
Daylight Sensor (factory default: off)

Compliance

UL Listed

Suitable for wet locations

IP Rating

Ingress protection rating of IP65 for dust and water

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

LED Characteristics

LEDs

Long-life, high-efficiency, surface-mount LEDs

Color Consistency

3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C38.377-2011.

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 113°F (45°C)

Housing

Die-cast aluminum

Reflector

Polycarbonate

Gaskets

High-temperature silicone

Lens

Polycarbonate lens

Green Technology

Mercury and UV free. RoHS-compliant components.

Finish

Natural shot blasted aluminum

Installation

Mounting

Three 1/2" NPS conduit entry points

Electrical

Driver

26W: Constant Current, Class 1, 50/60 Hz, 120-277V, 120V: 0.23A, 208V: 0.14A, 240V: 0.12A, 277V: 0.11A
18W: Constant Current, Class 1, 50/60 Hz, 120-277V, 120V: 0.15A, 208V: 0.09A, 240V: 0.08A, 277V: 0.07A
12W: Constant Current, Class 1, 50/60 Hz, 120-277V, 120V: 0.10A, 208V: 0.06A, 240V: 0.06A, 277V: 0.05A

THD

4.91% at 120V, 17.7% at 277V

Power Factor

98.9% at 120V, 85.8% at 277V

Photocell

Built-in daylight sensor

Surge Protection

4 kV

Aux Power Supply

Dim to Off

Optical

BUG Rating

26W: B1 U3 G2
18W: B1 U3 G1
12W: B1 U3 G1

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
