W34S

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

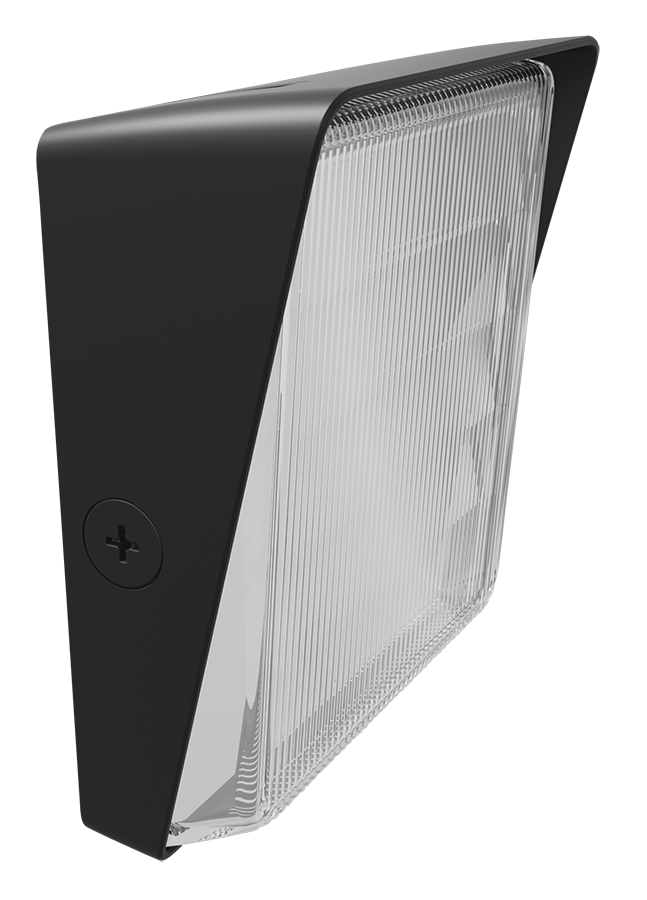

W34S

35W 3000/4000/5000K

100,000-Hour LED lifespan

0-10V dimming standard

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	35/25/17W
Color Temp	3000/4000/5000K
Lumens	2,728-5,574 lm
Efficacy	131.3-153 lm/W
Color Accuracy	73-75 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.30A/0.21A/0.15
208V	0.17A/0.13A/0.09A
240V	0.15A/0.11A/0.08A
277V	0.13A/0.09A/0.07A
Input Watts	18.7-39.1W

EZ-Layout

Create Custom Lighting Layout

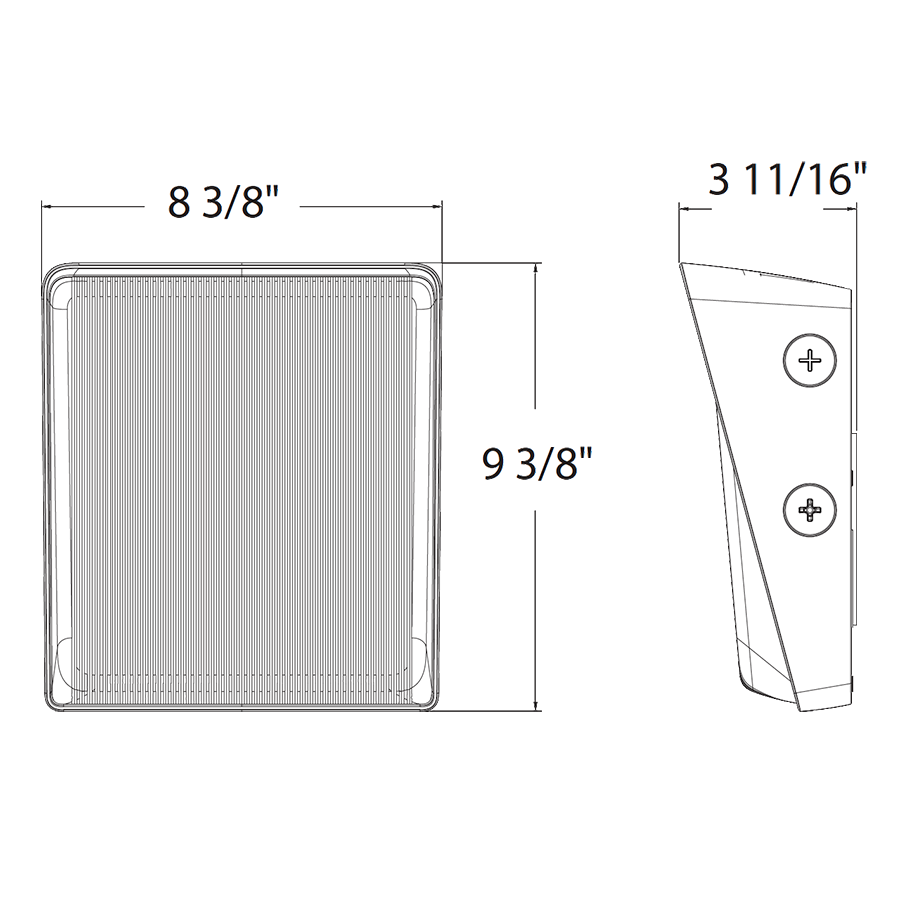

Dimensions

Weight: 6.6 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
35W/25W/17W (factory default 35W)
Color temperature selectable by 5000K, 4000K and 3000K

Compliance

UL Listed

Suitable for wet locations

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-4S68AI

Electrical

Driver

Constant Current, Class 2, 120-277V, 50/60Hz:
35W: 120V: 0.30A, 208V: 0.17A, 240V: 0.15A, 277V: 0.13A
25W: 0.21A, 208V: 0.13A, 240V: 0.11A, 277V: 0.09A
17W: 120V: 0.15A, 208V: 0.09A, 240V: 0.08A, 277V: 0.07A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

2.85% at 120V, 6.55% at 277V

Power Factor

99.5% at 120V, 92% at 277V

Photocell

Integrated photocell included with on/off switch

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

35W: Replaces up to 175W Metal Halide or 150W High Pressure Sodium
25W: Replaces up to 125W Metal Halide or 100W High Pressure Sodium
17W: Replaces up to 100W Metal Halide or 70W High Pressure Sodium

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Housing

Die-cast aluminum

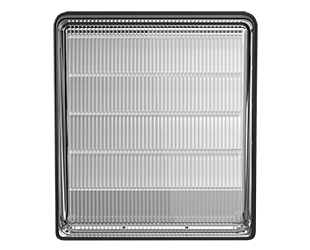

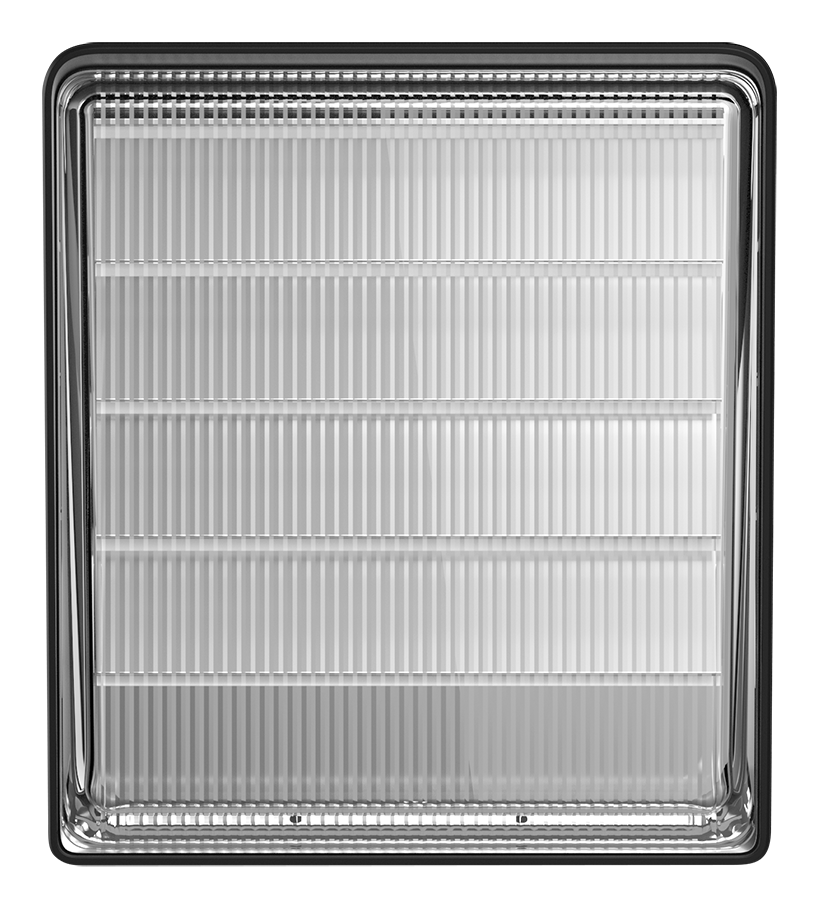

Lens

Glass

Reflector

Specular aluminum

Cold Weather Starting

The minimum starting temperature is -40°C (-40°F)

Maximum Ambient Temperature

Suitable for use in up to 40°C (104°F)

Green Technology

Mercury and UV free. RoHS-compliant components.

Finish

Formulated for high durability and long-lasting color

Installation

Mounting

Die-cast backbox with four (4) conduit entry points and knockout pattern for junction box or direct wall mounting. Hinged door for easy re-assembly.

Optical

BUG Rating

35W: B0 U3 G3
25W: B0 U3 G2
17W: B0 U2 G2

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
