WFDX6
- Field-selectable wattage lets you dial in the right output for any space
- Five CCT options (2700/3000/3500/4000/5000K) adjustable right on the fixture
- Deep regress design creates a clean appearance with minimized glare
- Smooth or baffle trim in white or black to match any interior
- Dimmable to 10% on compatible TRIAC/ELV dimmers
Performance
| Watts | 15/13/11W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 1,500/1,300/1,100 lm |
| Efficacy | 100 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.12A |
| 208V | 0.05A |
| 240V | |
| 277V | |
| Input Watts | 15/13/11W |
Dimensions
Weight: 0.8 lbs
Technical Specifications
Performance
Product Type

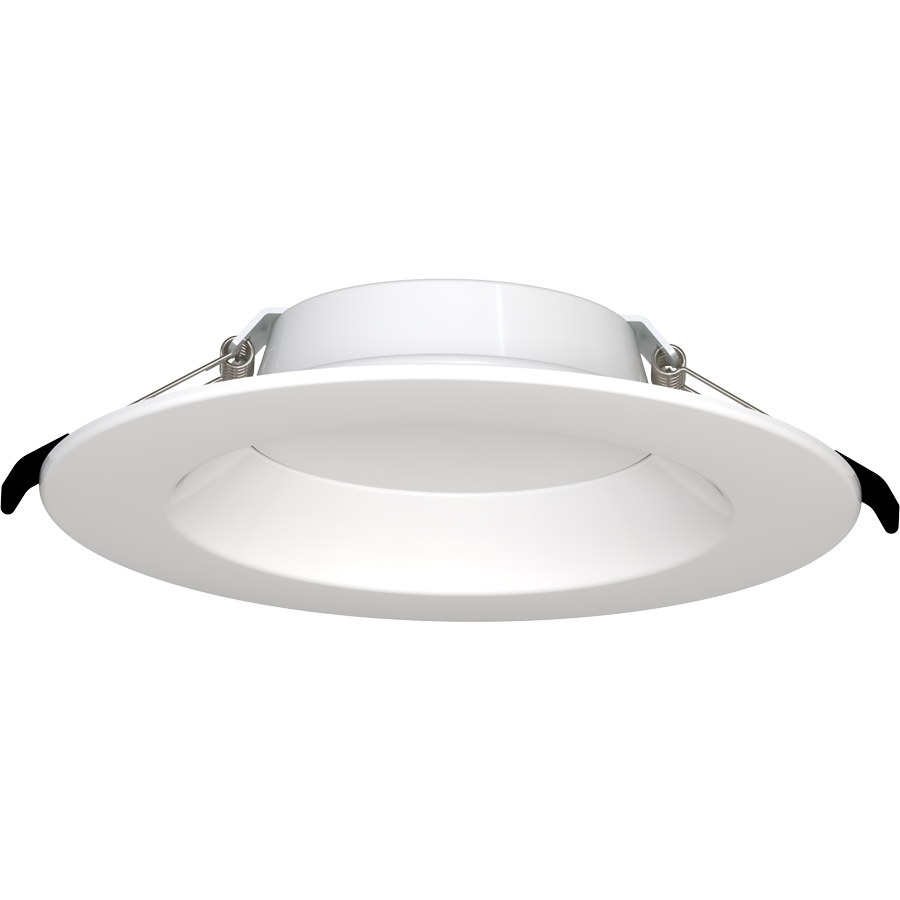

Deep-regress wafer
Description
Deep-regress wafer downlight available in 4" and 6" sizes with field-selectable wattage and CCT. Clean, low-glare aesthetics for residential and commercial applications.
Wattage Equivalency
100W Incandescent
Input Wattage
15/13/11W
Lumens (Nominal)
1,500/1,300/1,100lm
Efficacy
100lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, Class 2 120-277V 50/60 Hz; 120V: 115mA; 208V: 54mA
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120-277V
Operating Temperature
-4°F to 104°F (-20 to 40°C)
Flicker
≤30%
LED Characteristics
Beam Angle
85°±10°
Color Temperature
Default: 3000K
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Tuning
No
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation

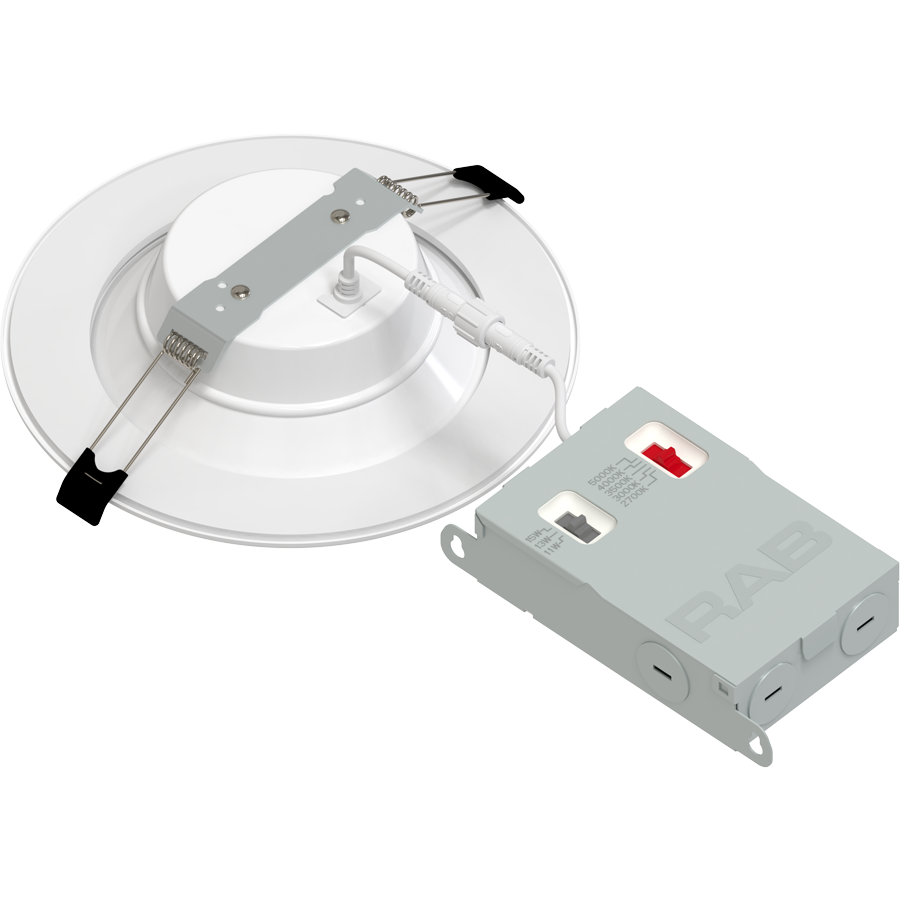

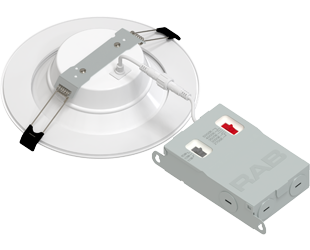

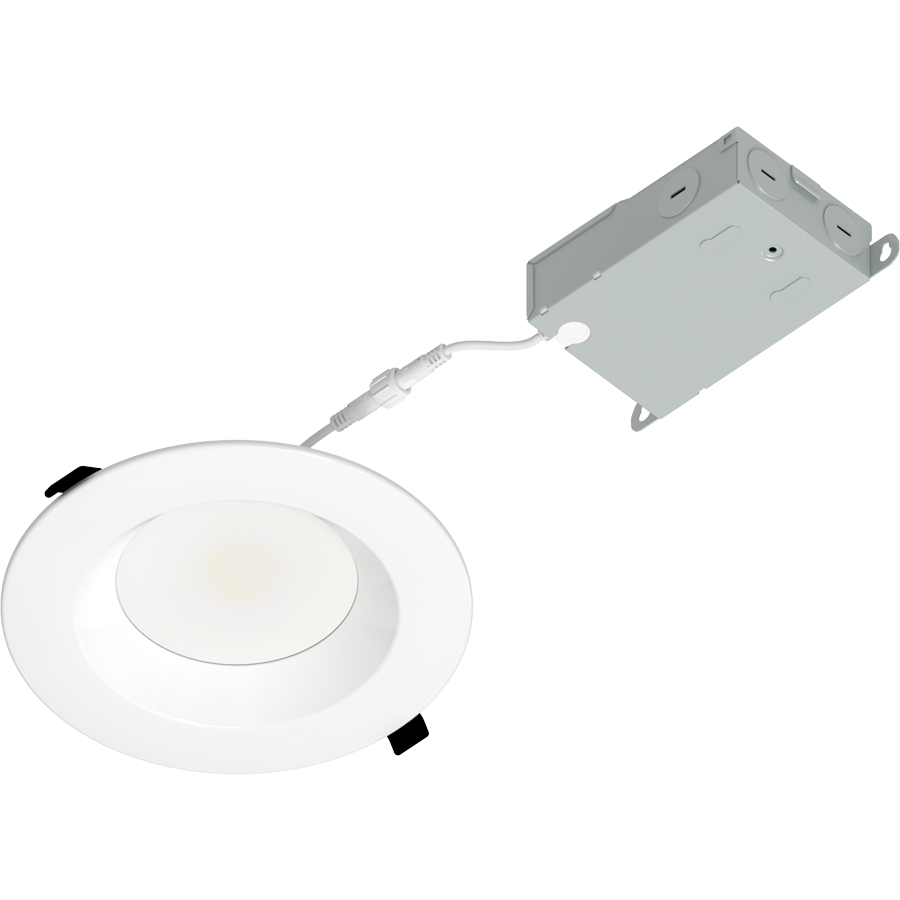

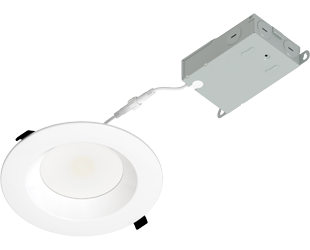

Remote Driver/Junction Box
Die formed metal driver / junction box with captive hinged junction box cover. Listed for Maximum of (4) 12AWG through branch circuit conductor suitable for 90° C permitted in box. Easy to wire in 2in/2out (plus ground) applications. (4) conduit pry-outs. (3) quick snap-in connectors for quick and reliable line voltage connections. Integral mounting facilitates direct mounting to building structure or mounting frame.
Mounting
No housing is required. Two tension steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 1". New construction frames are available.
Cable
CM Plenum rated cable (per UL2042)
Construction
Size
6"
Shape
Round
Finish
White
Enclosure Material
Metal
Trim Style
Smooth
Lens Finish
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Compliance
Listings
UL Listed, UL Classified
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
Fixture Rating
Suitable for use in open fixtures
IC Rated
Suitable for direct contact with insulation.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Air Tight
Housing certified Air Tight as per ASTM E283
Energy Star Approved
This product is ENERGY STAR® Version 2.2 Certified
Certification Model Number
DLW0175(WFDX6)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Accessories
RFLED-GOOF-6R-8R-W
6"-8" Goof ring round white
DLTRIM/R6RB-BN
6" Color trim brushed nickel
DLTRIM/R6RB-BRZ
6" Color trim bronze
DLTRIM/R6RB-B
6" Color trim black
DLFRAME/C6R
6" Downlight mounting frame
ND22-RFRAME
3", 4", 6", 8" & 10" Mounting frame, round
DLPLATE/WFR3456
3", 4", 5", 6" Mounting plate
DLPLATE/WFR3468/NB
3", 4", 6", 8" Mounting plate w/nailer bar
DLPLATE/WFR6/NB/CL
6" Mounting plate with nailer bar and drywall collar
DLPLATE/WFR6
6" Mounting plate
6"-8" Goof ring round white
DLTRIM/R6RB-BN
6" Color trim brushed nickel
DLTRIM/R6RB-BRZ
6" Color trim bronze
DLTRIM/R6RB-B
6" Color trim black
DLFRAME/C6R
6" Downlight mounting frame
ND22-RFRAME
3", 4", 6", 8" & 10" Mounting frame, round
DLPLATE/WFR3456
3", 4", 5", 6" Mounting plate
DLPLATE/WFR3468/NB
3", 4", 6", 8" Mounting plate w/nailer bar
DLPLATE/WFR6/NB/CL
6" Mounting plate with nailer bar and drywall collar
DLPLATE/WFR6
6" Mounting plate
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
