WFRETRO34-6-B
WFRETRO34-6-B

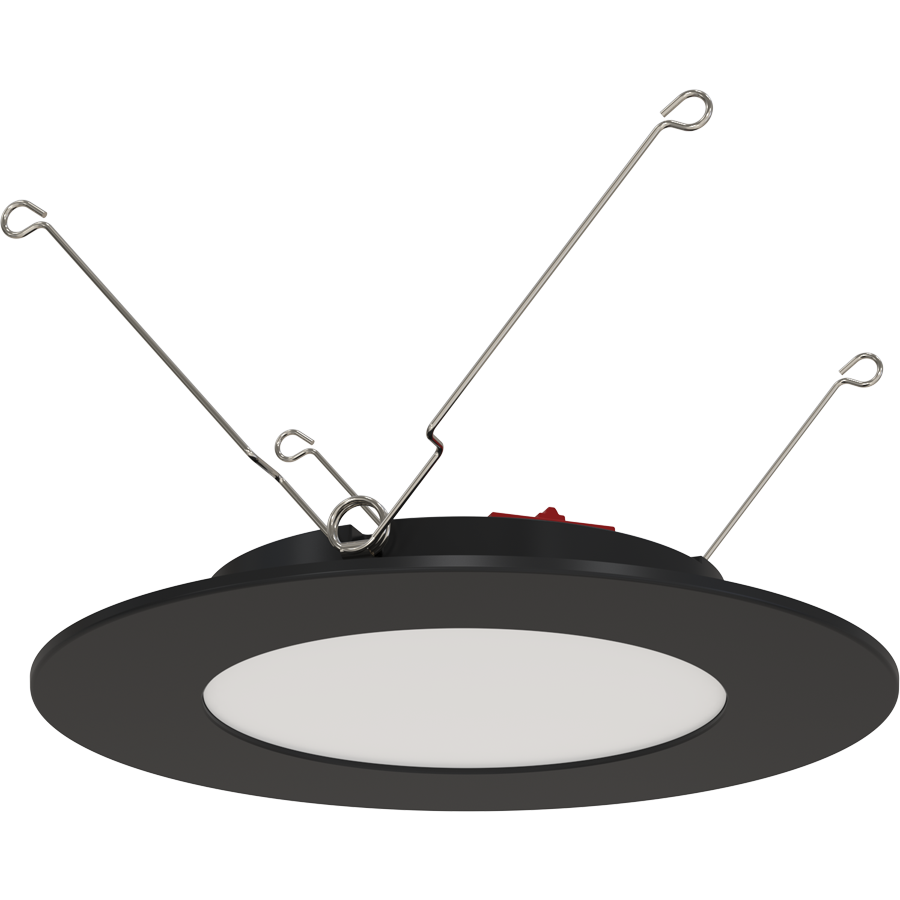

- Flush lens retrofit downlight that looks like a wafer from below the ceiling
- Adjustable color temperature 2700/3000/3500/4000/5000K
- Flush or step baffle lens
- Mounts inside standard 4" or 6" recessed downlight housings
- Air Tight, Wet Location, and 5 year warranty
Performance
| Watts | 11W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 1,100 lm |
| Efficacy | 100 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current, Class 2 |
| 120V | 0.11A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 11W |
Dimensions
Weight: 0.4 lbs
Technical Specifications
Performance
Product Type
Retrofit Wafer
Description
Looks like a wafer-style downlight from below the ceiling but installs into existing recessed housings.
Wattage Equivalency
60W Incandescent
Input Wattage
11W
Lumens (Nominal)
1,100lm
Efficacy
100lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current 120V 60Hz; 120V: 105mA
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Operating Temperature
-4°F to 104°F (-20 to 40°C)
Flicker
≤30%
LED Characteristics
Beam Angle
110°±10°
Color Temperature
Default: 3000K
Field adjustable via dip switch 2700/3000/3500/4000K
Field adjustable via dip switch 2700/3000/3500/4000K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Mounting
Recessed, housing required
Base Type
E26 Edison base adapter included
Construction
Size
6"
Shape
Round
Finish
Black
Enclosure Material
Plastic
Trim Style
Smooth
Lens Finish
Frosted
Lens
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Compliance
Listings
UL Listed, UL Classified, UL Recognized
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
Air Tight
Housing certified Air Tight as per ASTM E279
Energy Star Approved
This product is ENERGY STAR® Certified.
Certification Model Number
DLW0143(WFRETRO34-6-B)
California Title 20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
Compatible Accessories
NDCANIC6R
NDCANIC4R
NDCANIC4R
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
