WFRL6R149FA120WS

5 color temperatures in 1 SKU (2700K, 3000K, 3500K, 4000K, 5000K)

Super slim Edge-lit fixture for thin fixture depth

No recessed housing or J-box required

New construction or retrofit applications

UL wet location rated

Smooth diffused uniform light distribution

Dimmable down to 5% on compatible dimmers

Spring loaded retention clips

Robust, die cast aluminum construction

IC and airtight rated

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	14W
Color Temp	2700K/3000K/3500K/4000K/5000K
Lumens	1,200 lm
Efficacy	85.7
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.13A
208V
240V
277V
Input Watts	9W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 1.0 lbs

Technical Specifications

Performance

Description

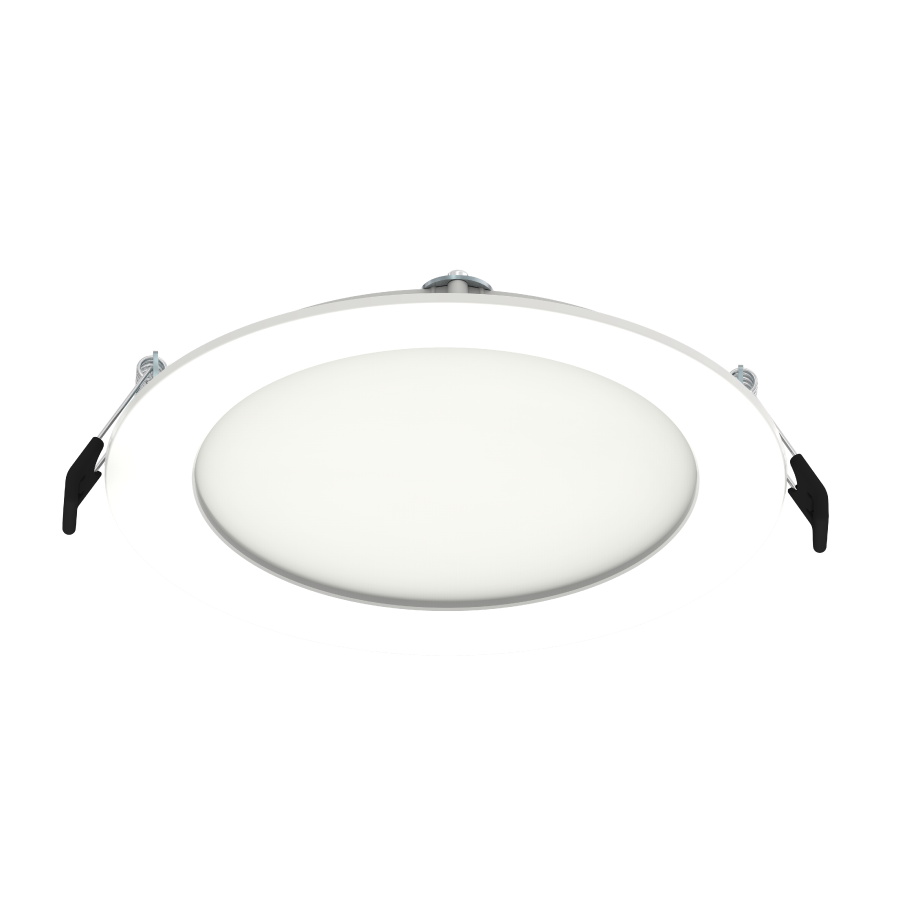

This 6-inch canless wafer downlight has an ultra low-profile design and 5 field adjustable color temperatures making them a flexible solution for both new construction and retrofit applications. The remote driver box has quick connectors, knockouts, and plenty of space for daisy chain wiring or adding an emergency backup unit.

Product Type

Recessed Downlights

Input Wattage

14W

Lumens

1,200lm

Efficacy

85.7lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Compliance

UL Listed

Suitable for wet locations

Energy Star Approved

ENERGY STAR® Version 2.2 Certified

Energy Star ID

2388933

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Electrical

Dimming Driver

TRIAC compatible dimmer with dimming as low as 10%.

THD

≤20%

Power Factor

≥0.9

Flicker

<5%

Input Voltage

120V

Operating Frequency

60Hz

Construction

Material

Metal and Plastic

Trim Style

Smooth Trim

Shape

Round

Mounting

Recessed ceiling

Operating Temperature

-20°C (-4°F) to 40°C (104°F)

Size

LED Characteristics

R9 Value

High color performance with R9 greater than or equal to 50

Other

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Buy American Act Compliance

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
