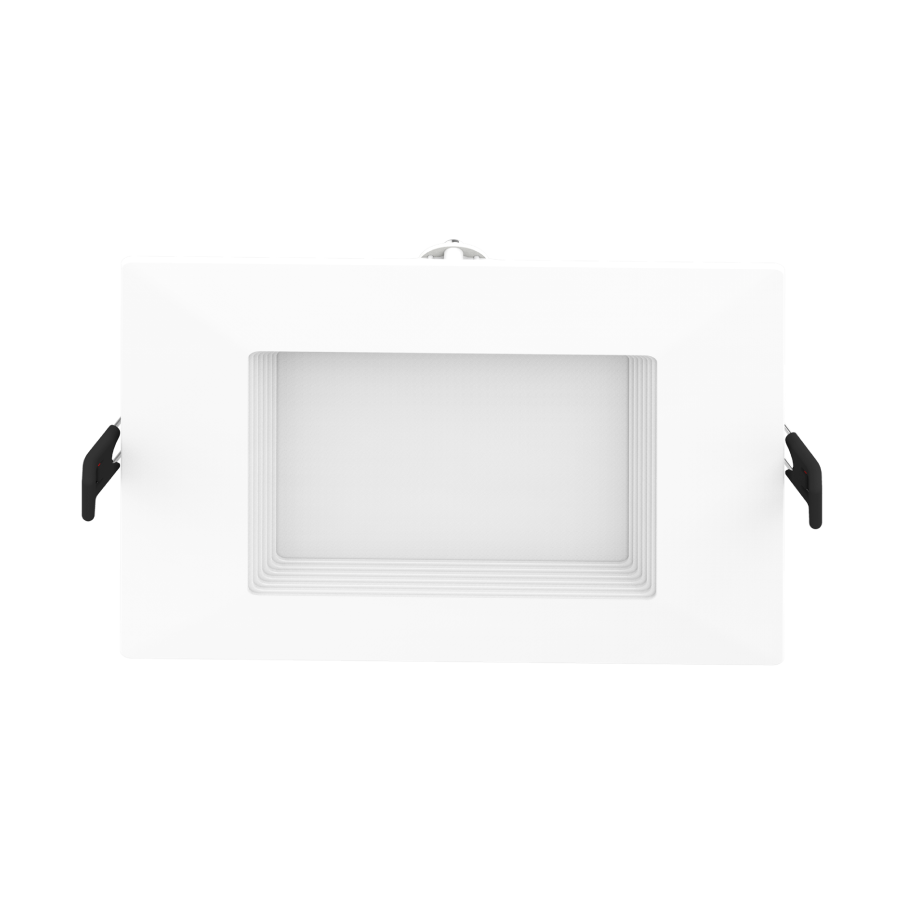

WFRL6S139FA120WB
WFRL6S139FA120WB
- 5 color temperatures in 1 SKU (2700K, 3000K, 3500K, 4000K, 5000K)
- Super slim Edge-lit fixture for thin fixture depth
- No recessed housing or J-box required
- New construction or retrofit applications
- UL wet location rated
- Smooth diffused uniform light distribution
- Dimmable down to 5% on compatible dimmers
- Spring loaded retention clips
- Robust, die cast aluminum construction
- IC and airtight rated
- 5-Year, No-Compromise Warranty
Performance
| Watts | 13W |
| Color Temp | 2700K/3000K/3500K/4000K/5000K |
| Lumens | 800 lm |
| Efficacy | 65.38461538 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 13W |
Dimensions
Weight: 1.1 lbs
Technical Specifications
Performance
Description
This 6-inch canless wafer downlight has an ultra low-profile design and 5 field adjustable color temperatures making them a flexible solution for both new construction and retrofit applications. The remote driver box has quick connectors, knockouts, and plenty of space for daisy chain wiring or adding an emergency backup unit.
Product Type
Recessed Downlights
Input Wattage
13W
Lumens
800lm
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Dimming
Yes, See Dimmer Compatibility List
Compliance
UL Listed
Suitable for wet locations
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Electrical
THD
≤20%
Power Factor
0.9
Operating Frequency
60 Hz
Construction
Material
Plastic
Trim Style
Baffle
Shape
Square
Mounting
Recessed ceiling
Operating Temperature Range
-20°C - 40°C (-4°F - 104°F)
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
