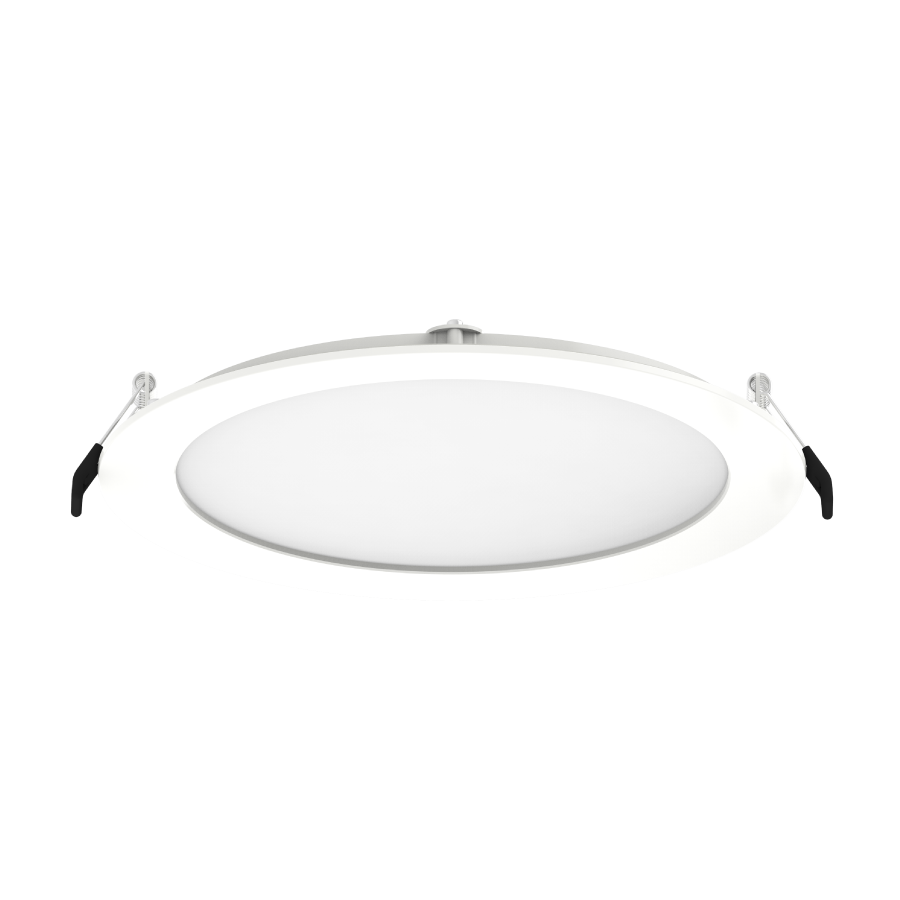

WFRL8R239FADWS

Spec Sheet IES File CutOut Template Dimmer Compatibility List Downlight Accessory Compatibility List LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

WFRL8R239FADWS

5 color temperatures in 1 SKU (2700K, 3000K, 3500K, 4000K, 5000K)

Super slim edge-lit fixture for thin fixture depth

No recessed housing or J-box required

New construction or retrofit applications

UL wet location rated

Smooth diffused uniform light distribution

Dimmable down to 10% on compatible dimmers

Spring loaded retention clips

Robust, die cast aluminum construction

IC and airtight rated

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	23W
Color Temp	2700/3000/3500/4000/5000K
Lumens	2,100 lm
Efficacy	91.3
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.21A
208V	0.12A
240V	0.10A
277V	0.09A
Input Watts	23W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 1.5 lbs

Technical Specifications

Performance

Product Type

Commercial Edge-Lit Wafer

Description

Edge-lit wafers with a slim form factor and selectable color temperatures for commercial applications. Available in 6", and 8" models with either smooth or baffle trim, all with 90 CRI and TRIAC/ELV dimmin

Wattage Equivalency

150W Incandescent

Input Wattage

13W

Nominal Lumens

2,100lm

Measured Lumens

1,920lm @ 2700K; 1,985lm @ 3000K; 2,097lm @ 3500K; 2,115lm @ 4000K; 2,084lm @ 5000K

Efficacy

83m/W @ 2700K;
86lm/W @ 3000K;
91lm/W @ 3500K;
92lm/W @ 4000K;
91lm/W @ 5000K

Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current, Class 2 60 Hz, 120V: 127mA

THD

≤20%

Power Factor

≥0.9

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV or 0-10V dimming systems. See Dimmer Compatibility List.

Input Voltage

120-277V

Operating Frequency

60 Hz

Input Current @ 120V (mA)

127mA

Sensor Settings

Operating Temperature

-4°F to 104°F (-20°C to 40°C)

LED Characteristics

Beam Angle

110°±10°

Color Temperature

Field adjustable via dip switch 2700/3000/3500/4000/5000K

Color Accuracy (CRI)

>90 CRI

R9 Value

High color performance with R9 greater than 50

Color Consistency

<4-step (2700K & 5000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED Color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Remote Driver/Junction Box

Die-formed metal driver / junction box with captive hinged junction box cover. Listed for maximum of (4) 12AWG through branch circuit conductor suitable for 90° C permitted in box. Easy to wire in 2in/2out (plus ground) applications. (4) conduit pry-outs. (3) quick snap-in connectors for quick and reliable line voltage connections. Integral mounting facilitates direct mounting to building structure or mounting frame.

Mounting

Recessed, no housing required

Construction

Size

Shape

Round

Finish

White

Enclosure Material

Plastic

Trim Style

Smooth

Lens Finish

Frosted

Lens

Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications

Air Tight

Housing certified Air Tight as per ASTM E283

Compliance

Listings

UL Listed

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IC Rated

Suitable for direct contact with insulation.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.

Energy Star Approved

This product is ENERGY STAR® Certified.

Energy Star ID

3555644

DLC Listed

Certification Model Number

DLW0070(WFRL8R239FADWS)

California Title 20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6

California Energy Commission (CEC) Status

Lawful for Sales in California

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Other

Compatible Products

DLPLATE/WFR3468/NB
Mounting plate for 3", 4", 6", 8" with nailer bar

EXTCBL-FA-6
6' Extension cable

EXTCBL-FA-12
12' Extension cable

EXTCBL-FA-20
20' Extension cable

DRI-25-EMGR-DC
Emergency driver 100-277V 25W

DRI-21-EMGR-DC-D10
Emergency driver 100-277V 21W 0-10V T20

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
