WFRX-2-K
- Small 2"aperture provides the ultimate flexibility for accent and downlighting applications from a single fixture
- Field-adjustable power and color temperature
- Dimmable at 120V using TRIAC/ELV, see dimmer compatibility list
- No recessed housing or j-box required, IC Rated, Air Tight Rated
- 50,000 hrs; 5-yr, no-compromise warranty; Title 24 Compliant
Performance
| Watts | 10/8/06W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 850/650/500 lm |
| Efficacy | 85/81/83 lm/W |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.09A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 10/8/06W |
Dimensions
Weight: 0.7 lbs
Technical Specifications
Performance
Product Type

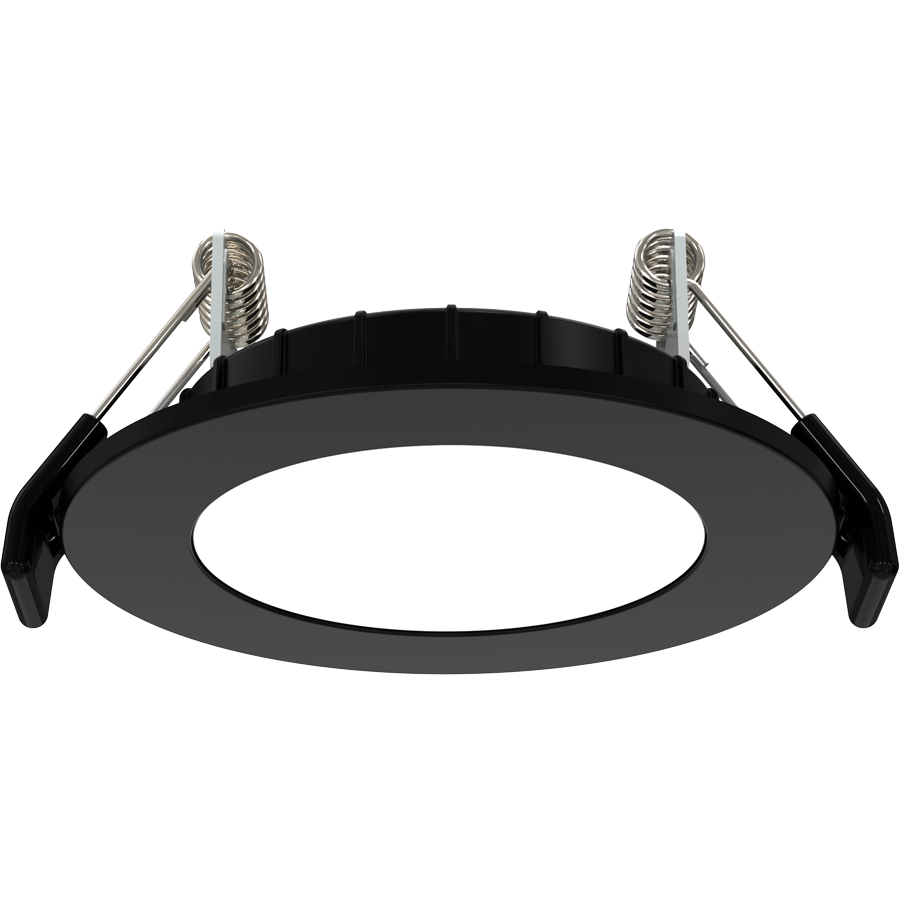

2" Edge-Lit Slim Canless Downlight
Description
2" wafers with selectable wattage and CCT that boast 90 CRI. Designed for 120V use and TRIAC dimming, these wafers are available with a smooth or baffle trim.
Wattage Equivalency
40W CFL
Input Wattage
10/8/6W
Lumens (Nominal)
850/650/500lm
Efficacy
85/81/83lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Driver
Constant Current, Class 2 120V 60 Hz; 120V: 90mA
Electrical
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Frequency
60 Hz
Operating Temperature
-4°F to 104°F (-20 to 40°C)
Flicker
≤30%
LED Characteristics
Beam Angle
110°±10°
Color Temperature
Default: 5000K
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Tuning
No
Color Accuracy (CRI)
90 CRI
Natural Spectrum
No
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation

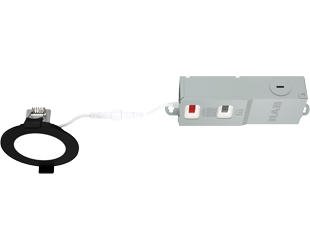

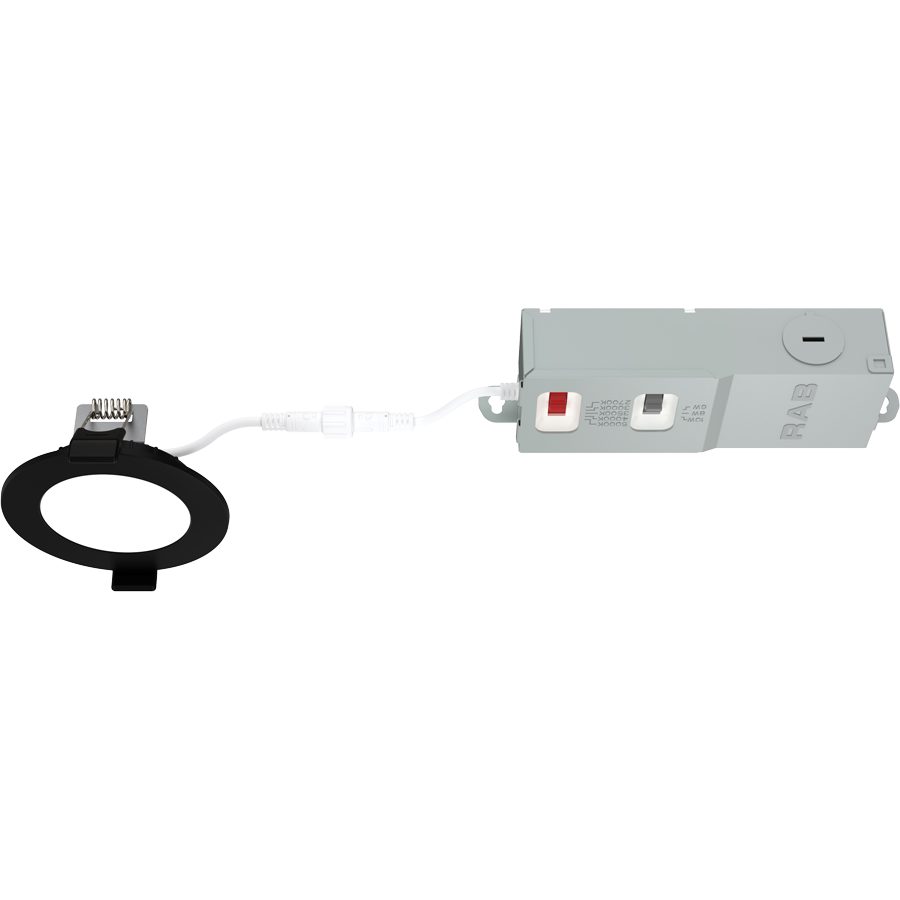

Remote Driver/Junction Box
Die formed metal driver / junction box with captive hinged junction box cover. Listed for Maximum of (4) 12AWG through branch circuit conductor suitable for 90° C permitted in box. Easy to wire in 2in/2out (plus ground) applications. (4) conduit pry-outs. (3) quick snap-in connectors for quick and reliable line voltage connections. Integral mounting facilitates direct mounting to building structure or mounting frame.
Cable
FT5 Plenum rated cable (per UL2043)
Mounting
No housing is required, two tension steel spring clips secure luminaire to
ceiling. Accommodates ceiling thickness up to 15/16". New construction
frames are available.
Construction
Size
2"
Shape
Round
Finish
Black
Enclosure Material
Metal
Trim Style
Smooth
Lens Finish
Frosted
Lens
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Compliance
Listings
UL Listed
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IC Rated
Suitable for direct contact with insulation. Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Energy Star Approved
This product is ENERGY STAR® Version 2.2 Certified
Certification Model Number
DLW0152(WFRX-2-K)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
