WFRX-6BD

Field-adjustable power and color temperature

Ideal for residential and commercial applications using 120-277V

Dimmable at 120V using TRIAC/ELV, see dimmer compatibility list

No recessed housing or j-box required

50,000 hrs, 5-yr no-compromise warranty, Title 24 Compliant

View Technical Specs

View Price & Availability

Performance

Watts	15/13/11W
Color Temp	2700/3000/3500/4000/5000K
Lumens	1500/1250/1000 lm
Efficacy	92/83/84 lm/W
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.14A
208V	0.06A
240V	0.06A
277V	0.05A
Input Watts	15/13/11W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 1.1 lbs

Technical Specifications

Performance

Product Type

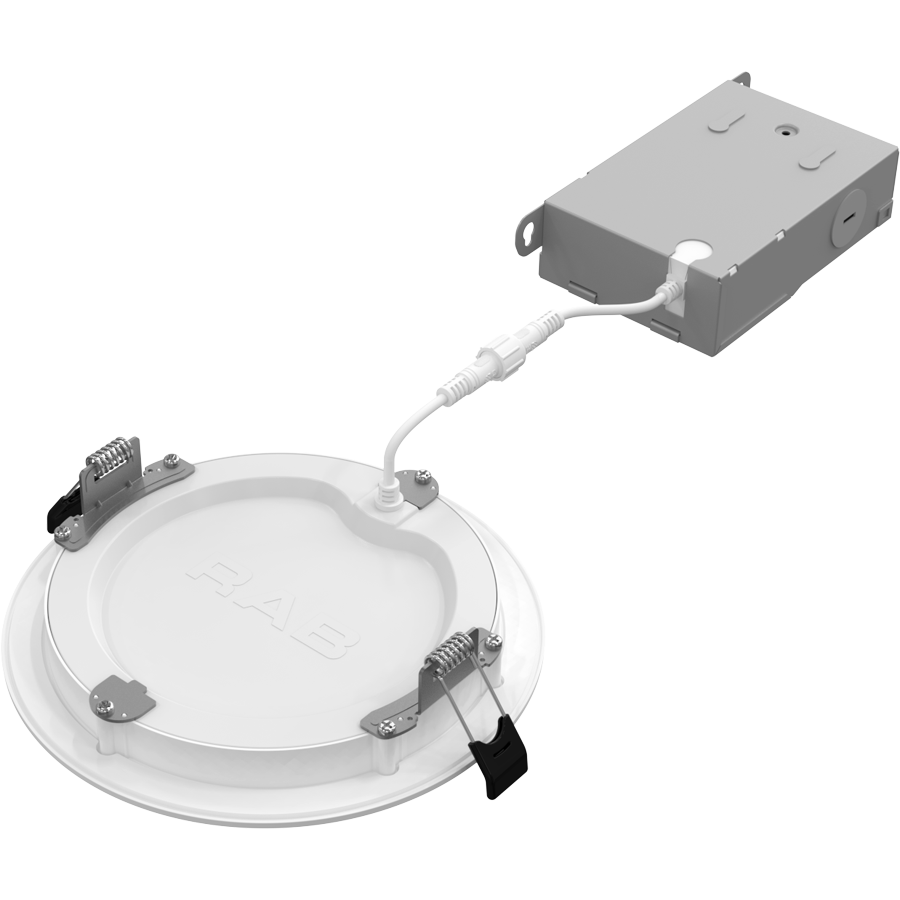

High-output Edge-lit Wafer

Description

4" and 6"wafers with selectable wattage and CCT that boast 90 CRI. Designed for 120-277V use and TRIAC/ELV dimming. Available with smooth or baffle trim.

Wattage Equivalency

100W Incandescent

Input Wattage

15/13/11W

Nominal Lumens

1500/1250/1000lm

Measured Lumens

11W
1028 lm @ 2700K; 1035 lm @ 3000K; 1055 lm @ 3500K; 1067 lm @ 4000K; 1078 lm @ 5000K

13W
1254 lm @ 2700K; 1264 lm @ 3000K; 1293 lm @ 3500K; 1308 lm @ 4000K; 1314 lm @ 5000K

15W
1459 lm @ 2700K; 1472 lm @ 3000K; 1508 lm @ 3500K; 1525 lm @ 4000K; 1527 lm @ 5000K

Efficacy

92/83/84lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current, Class 2; 120-277V; 60 Hz; 120V: 110mA, 208V: 60mA, 240V, 55mA, 277V: 46mA

THD

≤20%

Power Factor

≥0.9

Dimmable

Yes, dimmable down to 10% on compatible 120V TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120-277V

Operating Frequency

50/60Hz

Operating Temperature

-4°F to 104°F (-20°C to 40°C)

Flicker

≤30%

LED Characteristics

Beam Angle

110°±10°

Color Temperature

Field adjustable via dip switch 2700/3000/3500/4000/5000K

Color Accuracy (CRI)

90 CRI

R9 Value

High color performance with R9 greater than 50

Color Consistency

<4-step (2700K & 5000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Remote Driver/Junction Box

Die formed metal driver / junction box with captive hinged junction box cover. Listed for Maximum of (4) 12AWG through branch circuit conductor suitable for 90°C permitted in box. Easy to wire in 2in/2out (plus ground) applications. (4) conduit pry-outs. (3) quick snap-in connectors for quick and reliable line voltage connections. Integral mounting facilitates direct mounting to building structure or mounting frame.

Mounting

Recessed, no housing required

Construction

Size

Shape

Round

Finish

White

Endcap Material

Plastic

Enclosure Material

Metal+plastic

Trim Style

Baffle

Lens

Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications

Air Tight

Housing certified Air Tight as per ASTM E283

Compliance

Listings

UL Listed

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IC Rated

Suitable for direct contact with insulation.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.

Energy Star Approved

This product is ENERGY STAR® Certified.

Energy Star ID

3942797

DLC Listed

Certification Model Number

DLW0135(WFRX-6BD)

California Title 20 Compliant

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6

California Energy Commission (CEC) Status

Lawful for Sales in California

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
