• Covers footprint of traditional HID wall packs
  • WP1LED replaces up to 100W MH
  • 100,000-Hour LED lifespan
View Technical Specs
Performance
Watts 30W
Color Temp 4000K (Neutral)
Lumens 3,392 lm
Efficacy 114.6 lm/W
Color Accuracy 84 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.25A
208V 0.16A
240V 0.14A
277V 0.12A
Input Watts 29.6W

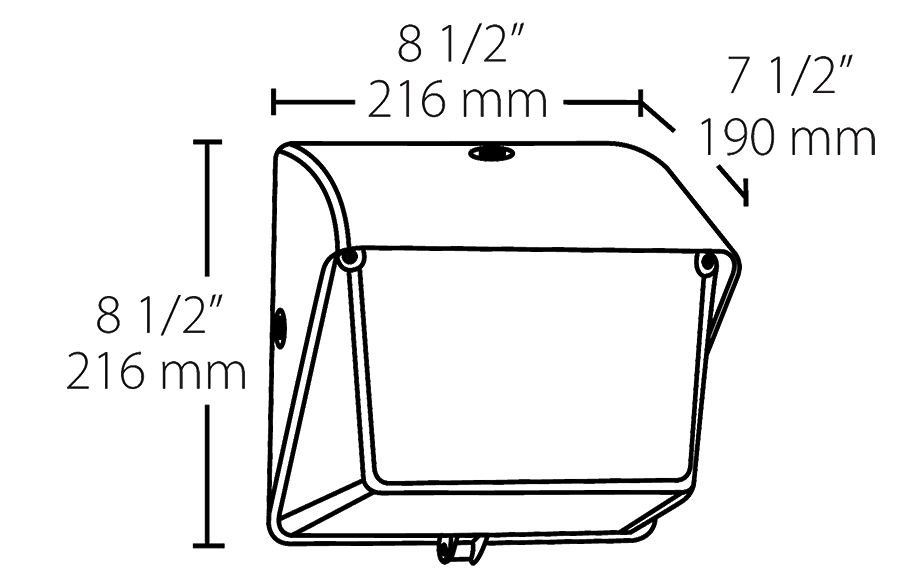

Dimensions
Link to Dimension Drawing
BAC icon
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Wall mount only.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Buy American Act Compliance
This product complies with the Buy American Act
Optical
BUG Rating
B1 U3 G3
Construction
Thermal Management
Superior thermal management with die-cast aluminum heatsink
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Other
FTC Country of Origin
This product was assembled in the USA by RAB using imported components
Electrical
Driver
Constant Current, Class 2, 700mA, 50/60 Hz. 100 - 277V, 4kV surge protection
