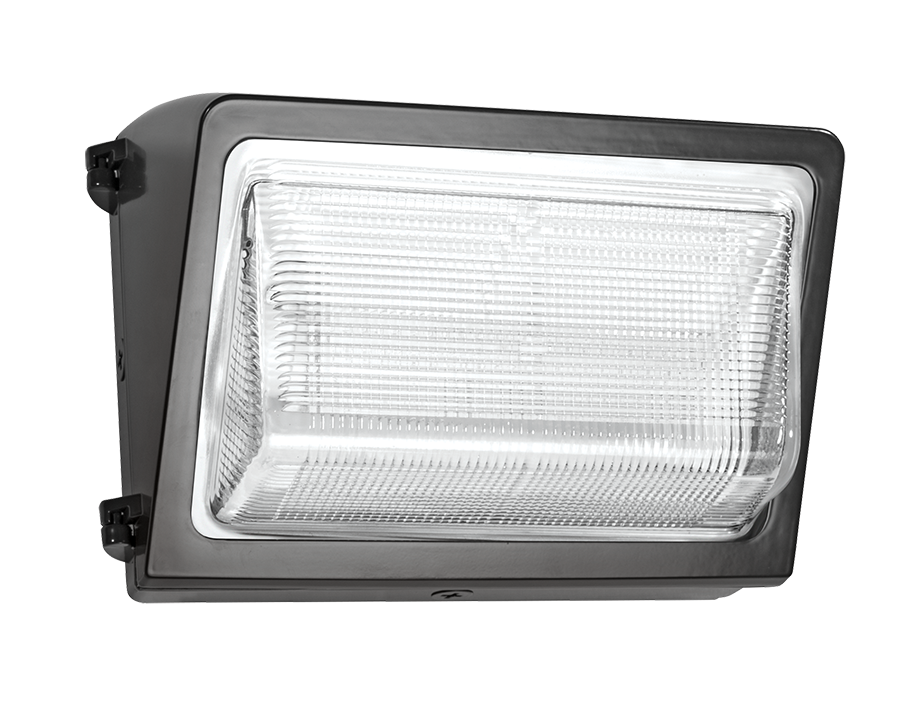

WP2LED37Y/PC
WP2LED37Y/PC large main
  • Covers footprint of traditional HID wall packs
  • WP2LED replaces up to 175W MH
  • 100,000-Hour LED lifespan
 View Technical Specs
View Price & Availability
Performance
Watts 37W
Color Temp 3000K (Warm)
Lumens 4,207 lm
Efficacy 109.3 lm/W
Color Accuracy 83 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.31A
208V
240V
277V
Input Watts 38.5W
Dimensions
Link to Dimension Drawing

Weight: 9.4 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Wall mount only.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Optical
BUG Rating
B1 U4 G3
Construction
Thermal Management
Superior thermal management with die-cast aluminum heatsink
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Electrical
Driver
Constant Current, Class 2, 450mA, 50/60 Hz. 100 - 277V, 4kV surge protection
