WP3LED75L-730WH

Spec Sheet Instructions Spec Sheet

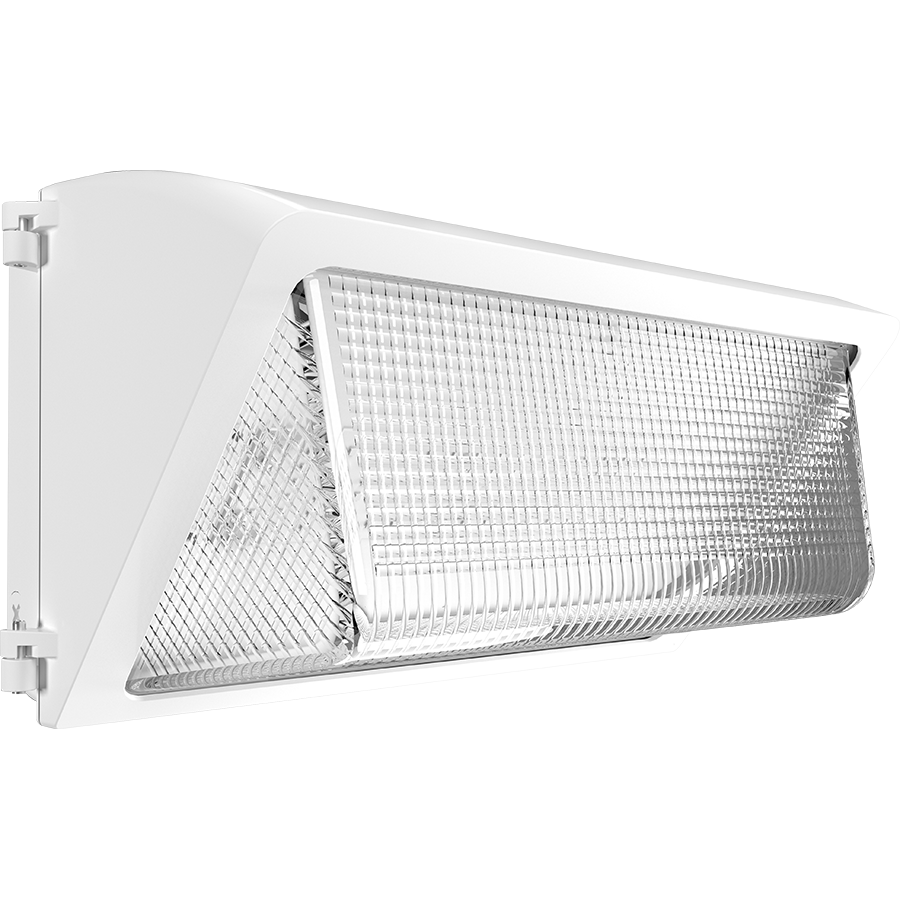

WP3LED75L-730WH

Affordable wall pack with traditional look

Ultra-high efficacy

Covers footprint of large HID wall packs

100,000-Hour LED lifespan

View Technical Specs

View Price & Availability

Performance

Watts	51W
Color Temp	3000K (Warm)
Lumens	7,753 lm
Efficacy	156.6
Color Accuracy	71 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V
208V
240V
277V
Input Watts	49.5W

Dimensions

Weight: 11.1 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P7C4LM7C

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 200W Metal Halide

LED Characteristics

LEDs

Multip-chip, high-output, long-life LEDs

Construction

Cold Weather Starting

The minimum starting temperature is -30°C (-22°F)

Maximum Ambient Temperature

40°C (104°F)

Housing

Die-cast aluminum

Reflector

Aluminum alloy

Lens

Glass

Gaskets

High-temperature silicone gaskets

Mounting

Surface mount

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Electrical

Driver

Constant Current, 480V, 50/60 Hz, 480V: 0.11A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

8.89% at 480V

Power Factor

98.1% at 480V

Surge Protection

6kV

Other

Note

All values are typical (tolerance +/- 10%)

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of ten (10) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Buy American Act Compliance

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Optical

BUG Rating

B1 U4 G4
