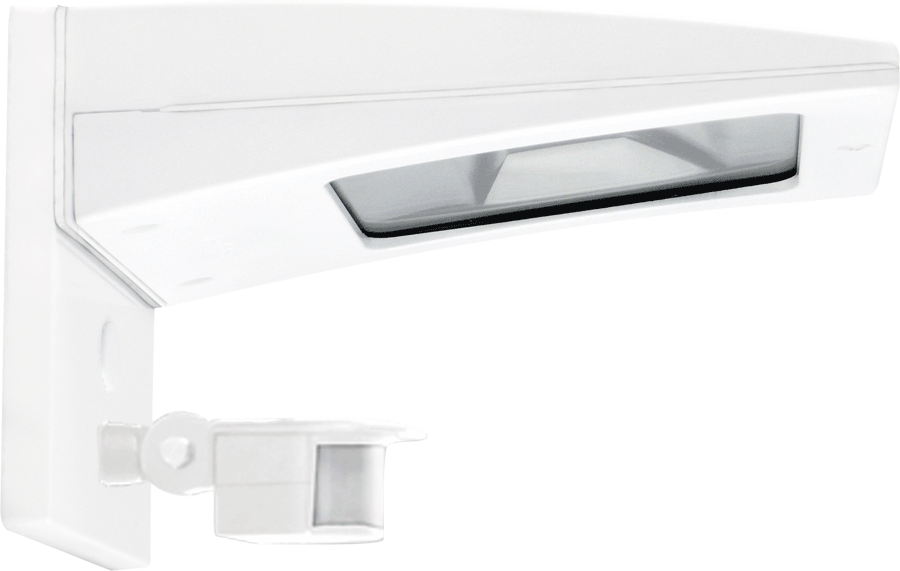

WPLED13YMSSW
WPLED13YMSSW
- High performance LED light engine
- Maintains 70% of initial lumens at 100,000-hours
- Weatherproof high temperature silicone gaskets
- Superior heat sinking with die cast aluminum housing and external fins
- 5-Year, No-Compromise Warranty
Performance
| Watts | 13W |
| Color Temp | 3000K (Warm) |
| Lumens | 1,665 lm |
| Efficacy | 113 lm/W |
| Color Accuracy | 71 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.11A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 14.7W |
Technical Specifications
Compliance
UL Listed
Suitable for Wet Locations as a Downlight. Suitable for Damp Locations as an Uplight. Wall Mount only. Suitable for Mounting within 4ft. of ground.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PXV87AVZ
DLC Product Code: PXV87AVZ
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 70W Metal Halide
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.11A, 208V: 0.07A, 240V: 0.06A, 277V 0.05A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
7.08% at 120V, 15.05% at 277V
Power Factor
99.1% at 120V, 90.5% at 277V
Surge Protection
4kV
Sensor Settings
MSS Sensor Option
MSS sensor options use state-of-the-art surface mount technology (SMT), just like cellular phones and beepers. SMT gives you more reliability, greater RF immunity, and a compact sensor that can fit neatly where others cannot. The wide 180° view detects movement along the entire side of a building with only one compact sensor. It will detect people as they exit or enter. The hard lens is molded as part of the case, vandalproof, rainproof, bugproof and absolutely sealed. Sensor functions best when movement is across its detection pattern, not towards the sensor.
Construction
Finish
Formulated for high durability and long-lasting color
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 55°C (131°F)
Green Technology
Mercury and UV free. RoHS-compliant components.
Gaskets
High-temperature Silicone
LED Characteristics
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Color Temperature
3000K
Lumen Maintenance
The LED will deliver 70% of its initial lumens at 100,000 hours of operation
Other
Patents
The LPACK design is protected under patents pending in the U.S., Canada, China, Taiwan and Mexico.
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Optical
BUG Rating
B1 U0 G0
