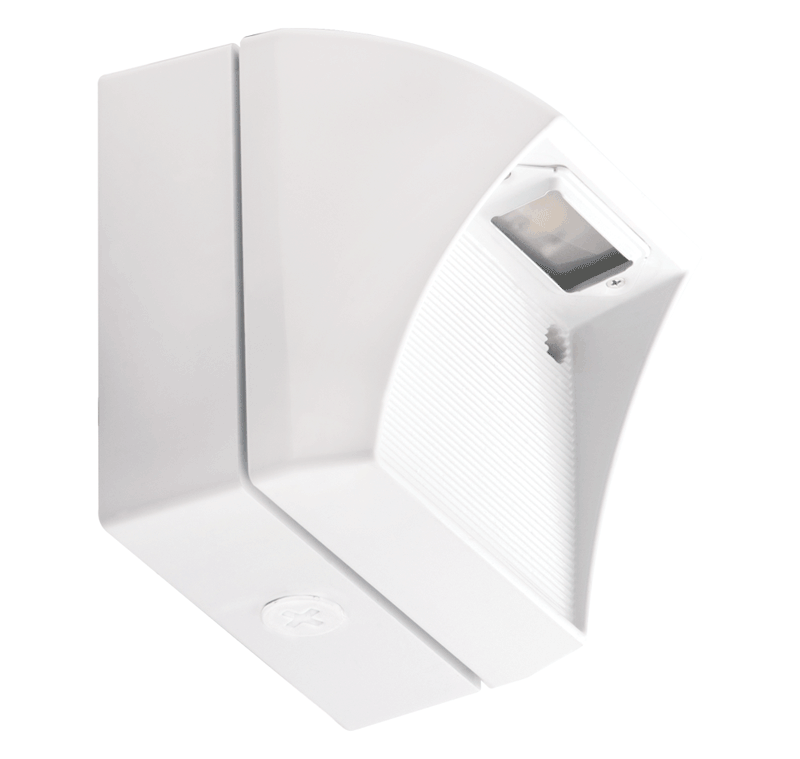

WPLED5YW

High performance LED light engine

Maintains 70% of initial lumens at 100,000-hours

Weatherproof high temperature silicone gaskets

Superior heat sinking with die cast aluminum housing and external fins

Replaces 13W CFL or 60W Incandescent

100 up to 240 Volts

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	5W
Color Temp	3000K (Warm)
Lumens	128 lm
Efficacy	24.2 lm/W
Color Accuracy	88 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.18A
208V	0.18A
240V	0.18A
277V
Input Watts	5.3W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 2.0 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations in downlight position only. Suitable for mounting within 4ft (1.2m) of the ground.

IP Rating

Ingress protection rating of IP66 for dust and water

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Dark Sky Conformance

Allows for conformance to the IDA's fully shielding requirement, emitting no light above 90 degrees.

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 13W CFL or 60W Incandescent

Other

Patents

The WPLED design is protected by patents pending in the U.S., Canada, China, Taiwan and Mexico.

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

LED Characteristics

LEDs

5W, high-output, long-life LED

Color Temperature

3000K

Color Consistency

3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Ambient Temperature

Suitable for use in up to 40°C (104°F)

Cold Weather Starting

The minimum starting temperature is -40°C (-40°F)

Housing

Precision die-cast aluminum housing and mounting plate. 1 1/2" backbox with three 1/2" conduit entry points.

Gaskets

High-temperature silicone gaskets

Finish

Formulated for high durability and long-lasting color
